Functions and Features
If you want to change the Series combination mode to the single mode,
perform the following steps:
1. Switch the instrument to Single mode.
a. Press the [Shift]+[Display] (System) key to enter the system menu.
b. Press the left and right direction keys or rotate the knob, select “Con-
nect”, and press [Enter] to enter the edit mode.
c. Rotate the knob, select Single, and press [Enter] to confirm.
2. After the parameter setting is completed, the instrument will restart automati-
cally. After restarting, the device will enter the 2-channel independent mode.

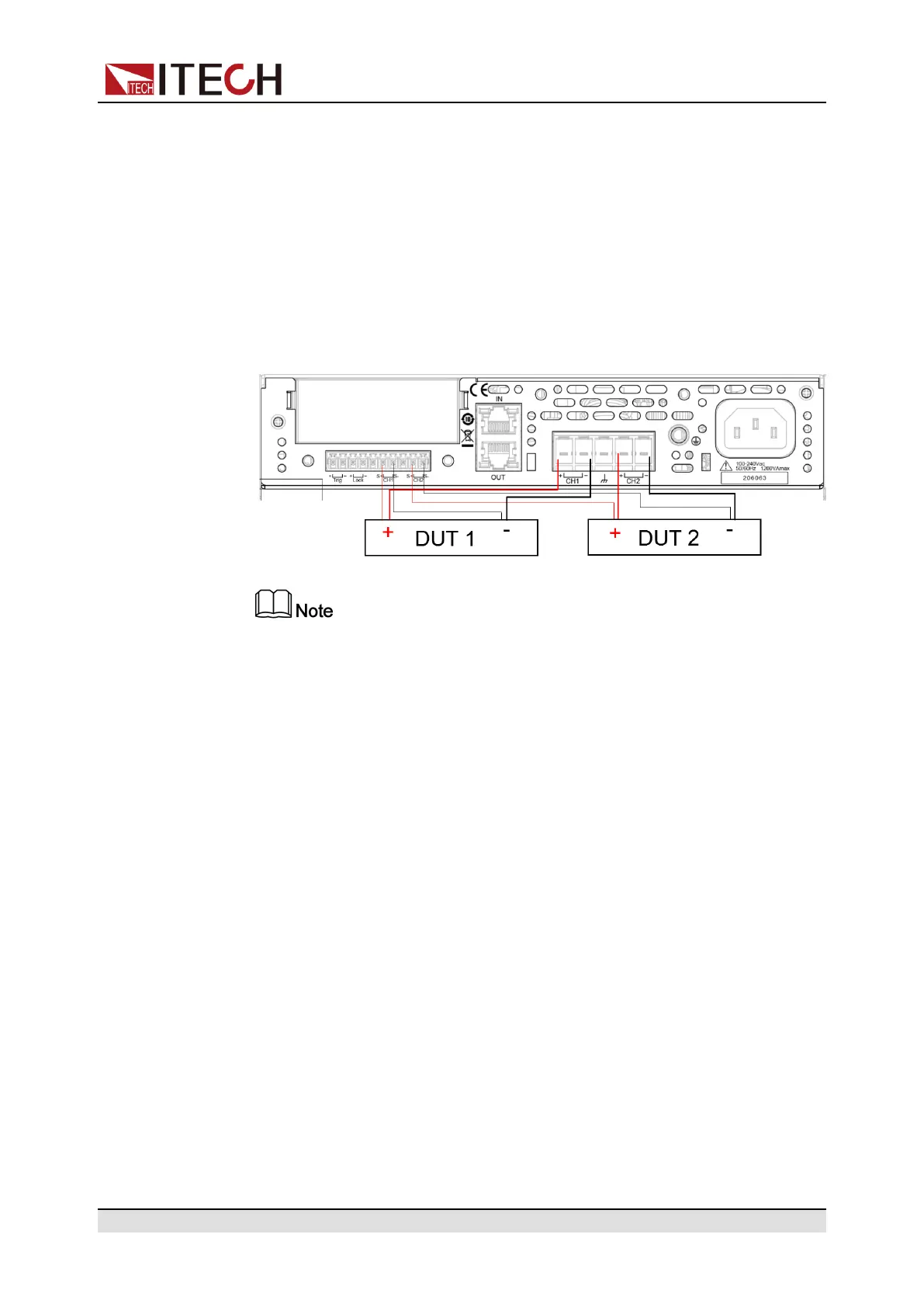

3. Refer to the figure below to connect the DUT, and live wiring is prohibited.
The connection method shown in the figure above is the wiring method
when both channels of Sense are turned on.
4.6 Protection Function
This series power supplies provide the following protection functions. You can
set these functions in the Protect menu.
• The maximum output voltage setting value (U-Max), the minimum output
voltage setting value (U-Min), these functions limit the setting value of the
output voltage from front panel.
• Over-voltage protection, over-current protection, over-power protection, and
over-temperature protection, these functions disable the output to protect
the device under test (DUT), as well as the power supply.
4.6.1 Set the Setting Value Limit Protection
To avoid causing damage to the DUT, after you set the U-Max, U-Min, the set-
ting value from the [V-set] key on the front panel can’t exceed the setting limit.
The operation steps are as follows.
Copyright © Itech Electronic Co., Ltd.
64
