Basic Operation
Name Description
V
in1
Indicates the minimum voltage input to pin 8. The setting
range is from –10 to 10.
V
in2
Indicates the maximum voltage input to pin 8. The setting
range is from –10 to 10, and V
in2
>V
in1
.
V
out1
The minimum value of the output voltage in CV priority mode.
V
out2
The maximum value of the output voltage in CV priority mode,
and V
out2
>V
out1
.
I
out1
The minimum value of the output current in CC priority mode.
I
out2
The maximum value of the output current in CC priority mode,
and I
out2
>I
out1
.

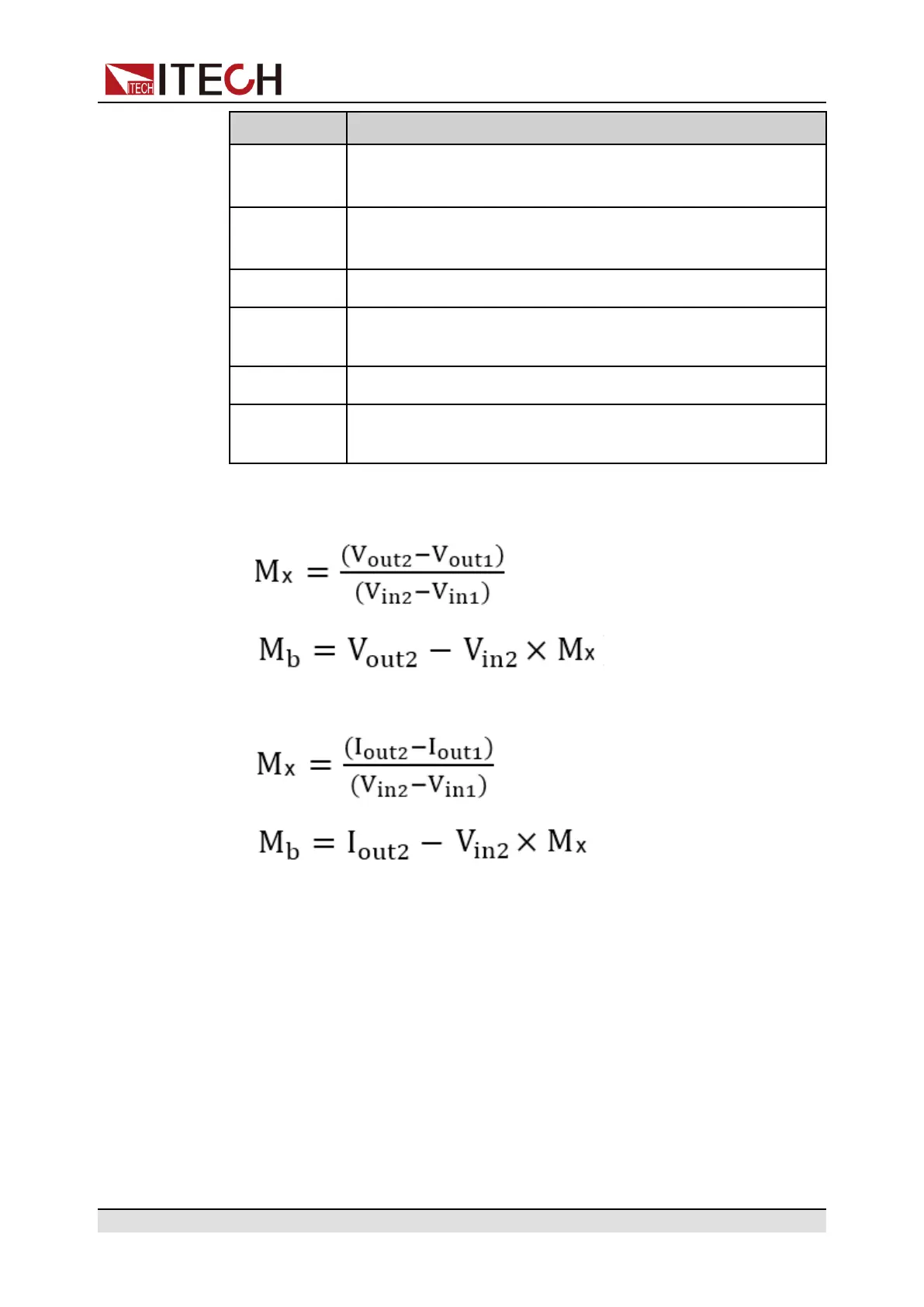

• CV priority
• CC priority
How to Use
The following takes the CV priority mode as an example to introduce the usage
steps.
1. Refer to the figure below to complete the pin connection.
