Chapter2 Quick start
This chapter introduces the front panel, the rear panel, key functions and VFD display of the
AC source.Make sure that you can quickly know the appearance, instruction and the key
function before you operate the power supply, Help you make better use of IT7320 series.
2.1 Front and Rear Panel

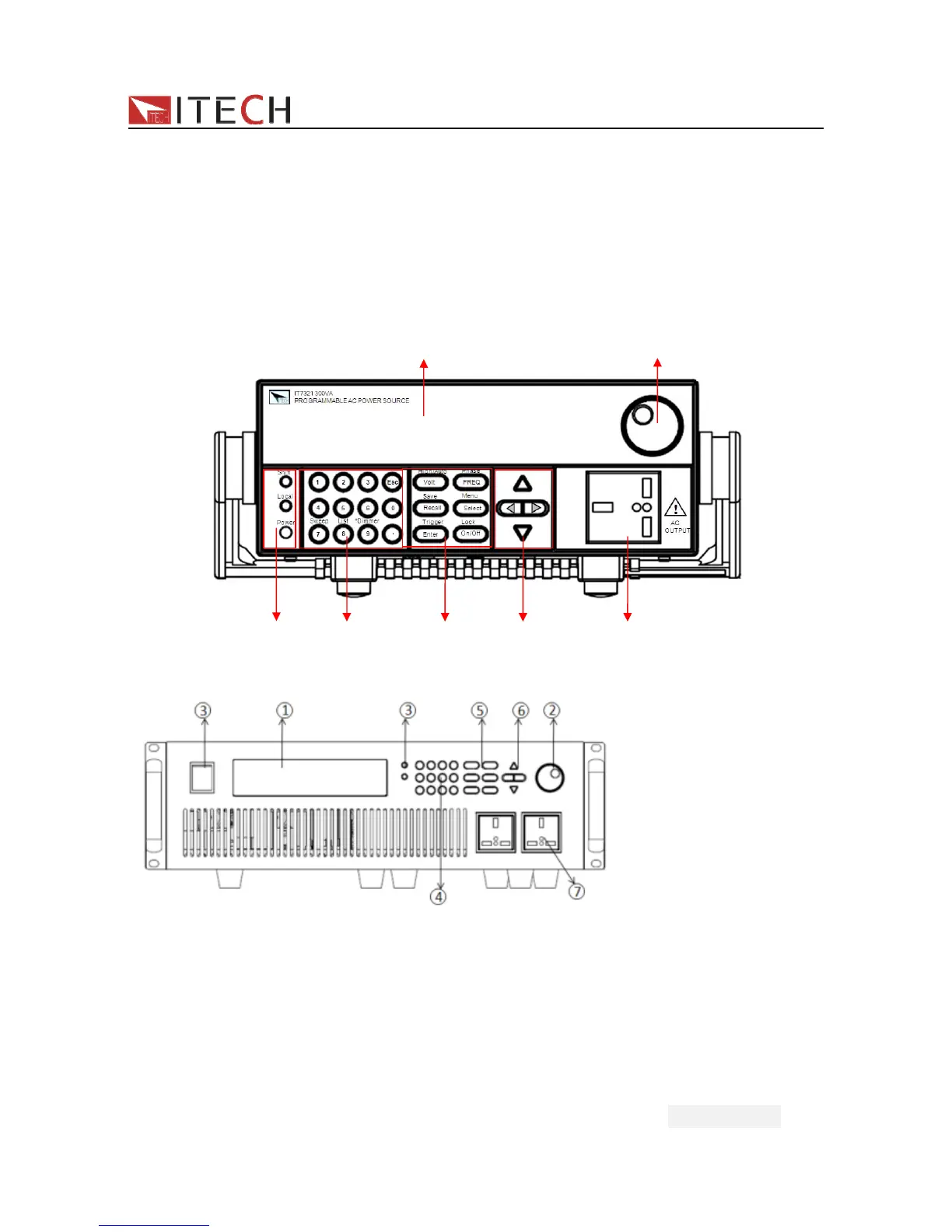

The front panel of IT7321
①②
③④ ⑤ ⑥ ⑦
The front panel of IT7322/IT7322H/IT7324
VFD display
①
② Rotary knob
③Compound key, the local
switch key and power switch
④ Numeric keys and ESC
⑤ Function keys
⑥UP, DOWN, LEFT and RIGHT
key
⑦ Output terminals
⑧ Power button
