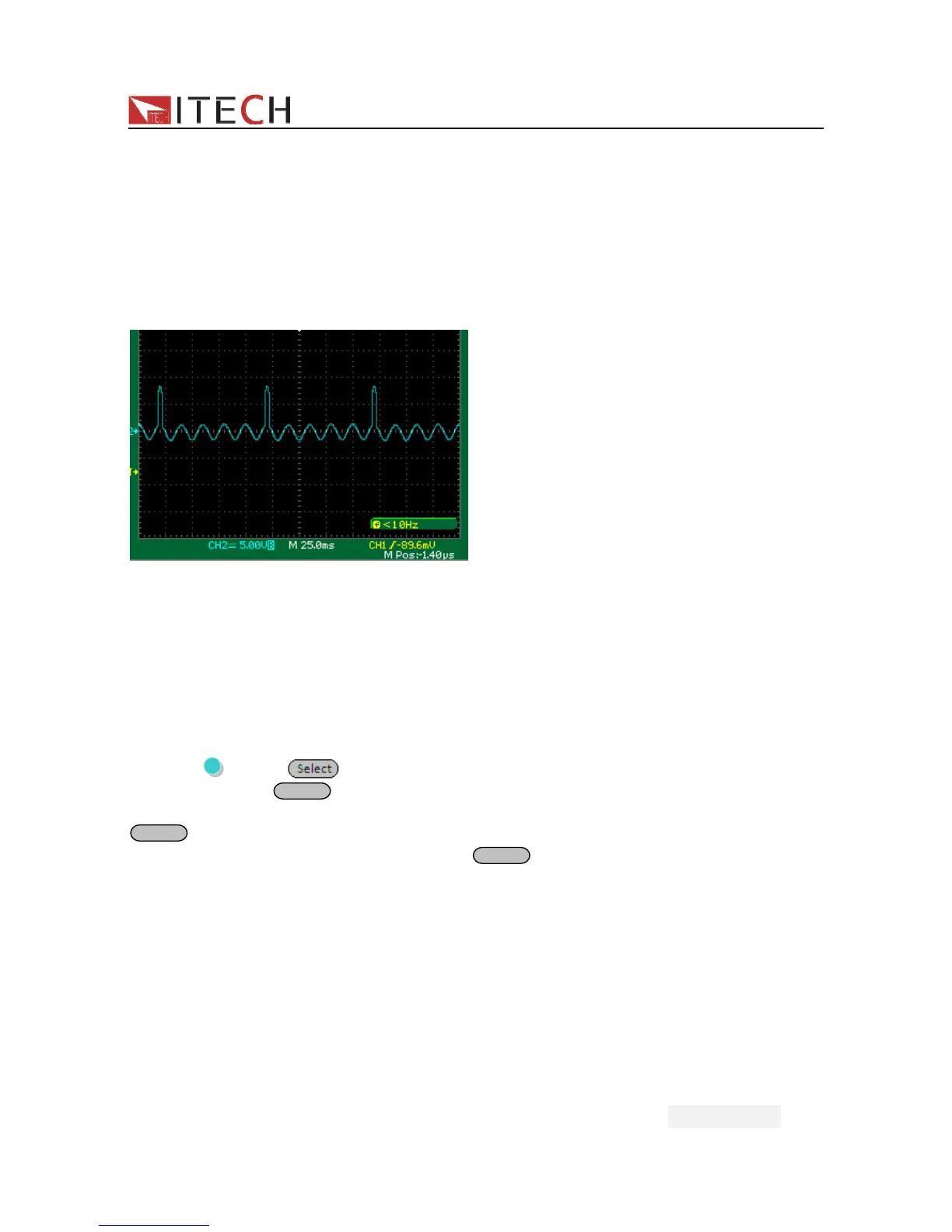

5.10.2 List operation
With List operation applied to the alternating power supply, alternating waveform sequences
in various ranges may be output. The surge/trapped wave may be added as required to
simulate fluctuation of network voltage so as to evaluate the test result of the instrument
under such situation.
Various alternating sequences with output varied may be formed by listing the voltage,
frequency, slope, surge/trapped wave each step.
.
Surges wave
List sequences of IT7320 series can be stored into a non-volatile register,with a capacity of
100 steps.The user can edit up to 10 files.Following shows how to edit,recall and run a list
file:
> Set Trigger Source
The surge/trapped wave test of LIST may be manually triggered to control the start time of
the surge/trapped wave.
Operation:
(1)Press
(Shift)+ (Menu) to entry the menu. Then the system will keep
flickering------press
Enter
to confirm.
(2)Press right key to select Trigger.When selected,trigger item will be twinkling.Press
Enter
to confirm.
(3)Press right key to select Manual and press
Enter
to confirm.
