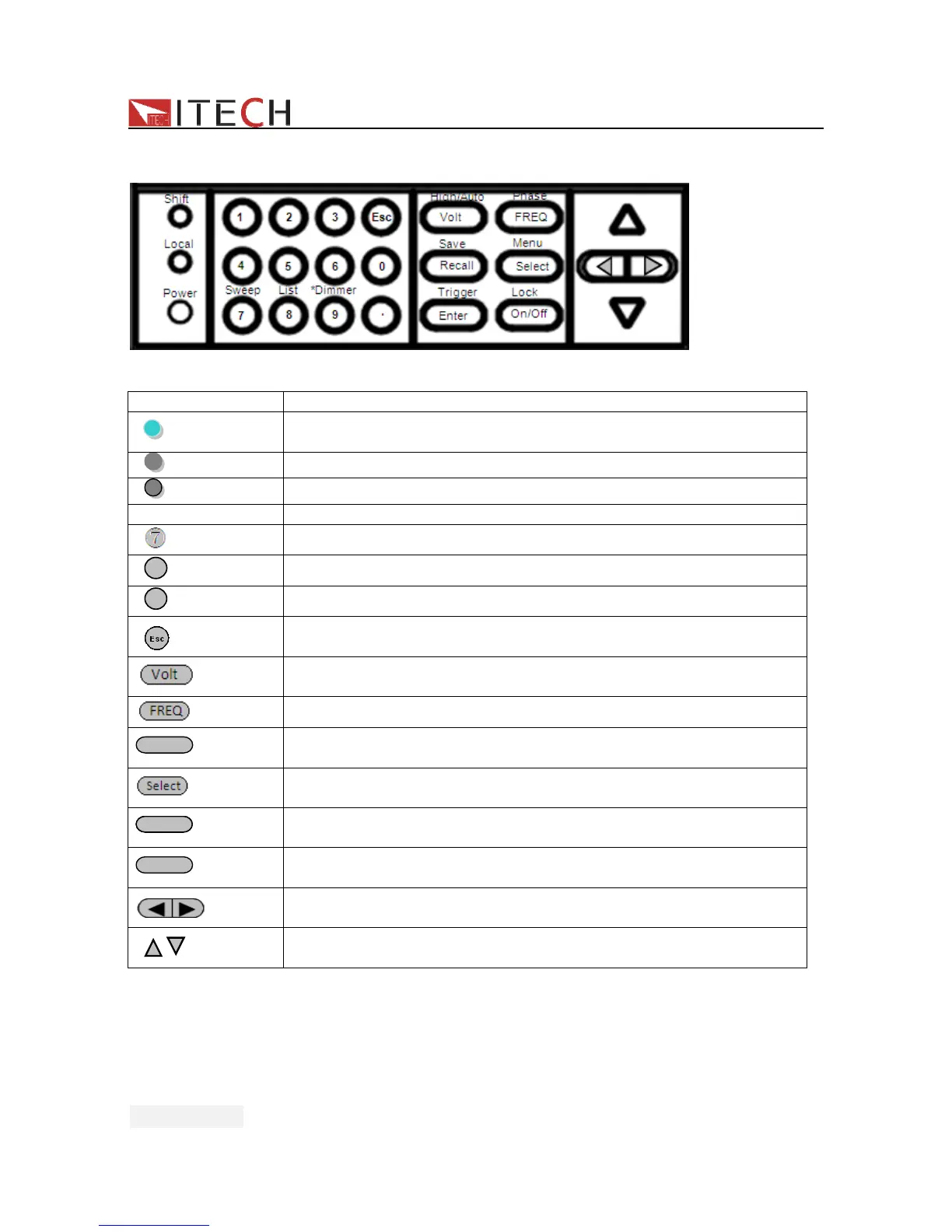

2.2 Front-panel Operation Overview
Key description, see the table below：
Keys
Name and the function
Shift
The shift key is used to select the alternate operation of a
key,indicated by the word under the key
Local
Local buton, switch from remote mode to local operation mode
Power
Power on key
0-9 Numeric keys
/Sweep
Number 7/Sweep function key
8
/List
Number 8/List function key
9
/*Dimmer
Number 9/Dimmer function key
Escape key.It can be used to exit keyboard entry or move up a level
in the menu.
/High/Auto
Set the voltage value/ Switch the voltage range between high range
and Auto range mode
/Phase
Set the frequency /set the phase angle
Recall
/Save
Recall the setup from internal memory/ Store the AC source
settings in non-volatile memory.
/Menu
Switch the VFD display to be apparent power,peak current,active
power and power factor/entry the menu setup
EnterEnter
/Trigger
Enter key, to confirm the number entered and operation/trigger
button, which is used to trigger the List test
On/Off
/Lock
Output on (off) keys, control power output state / keypad lock
function keys, used to lock the panel buttons
Left and right direction keys, used to set the value, to adjust the
cursor to the specified location
Up and down keys, used to turnover the item in the menu or
increase (decrease) the output voltage or current values
