18

Re‐assemblethecordgrip.Afterthecordgripissecurelyinstalledbackonthecapassemblytightenthe
nutdownuntiltheinner grommetfirmlygripsthecablebody,seeFigure3.1.3(e).Handtightisusually
sufficient.
Figure3.1.3(e)

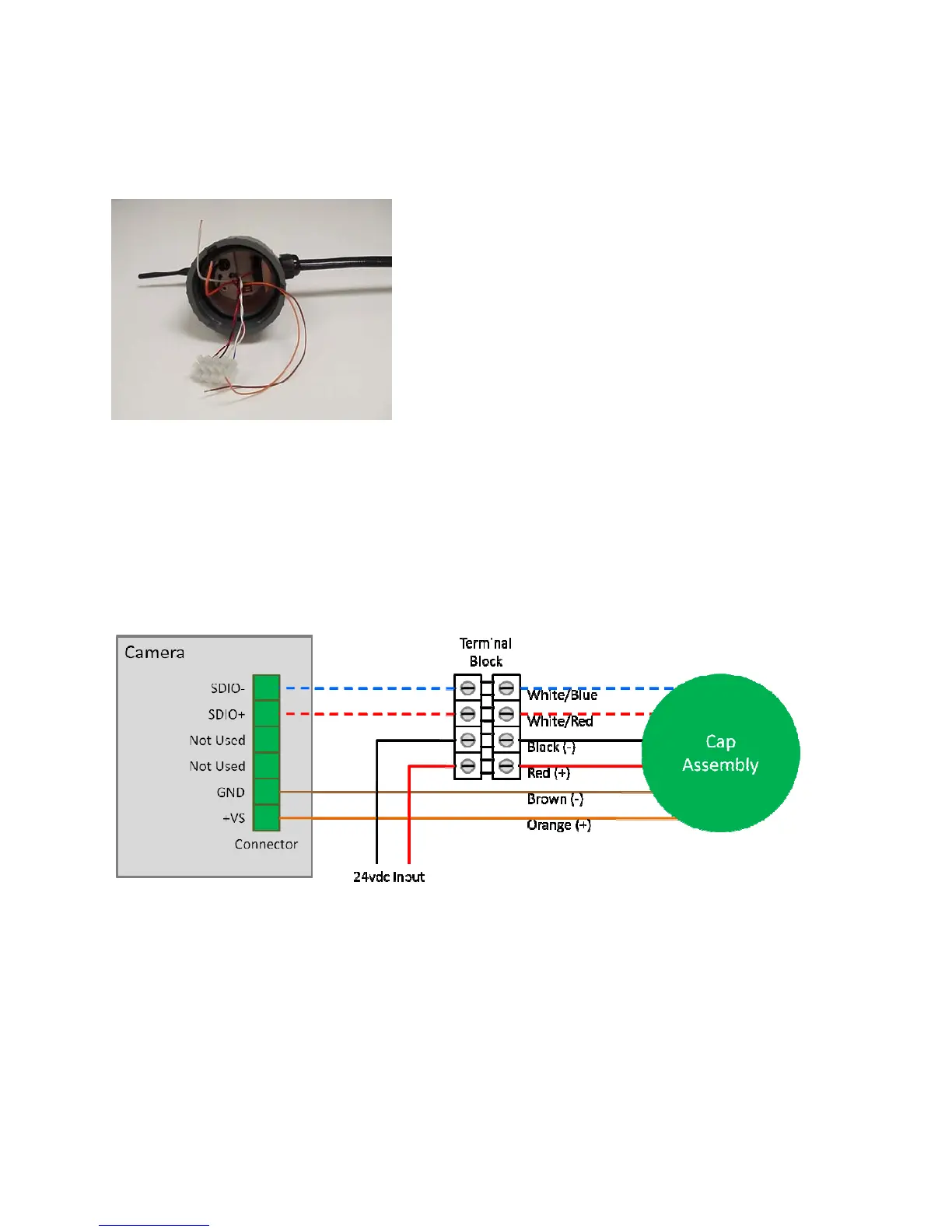

TherearetwoplacestoconnecttoontheCameraProcessorunit,awhitefourwayterminalblockanda 
sixway connector,seeFigure3.1.3(f).Connect  the twoincomingwiresfrom thepowersource(24vdc)
tothe redand blackconnectionson theterminalblock. Ensurethe
correctpolarity,redispositiveand
black is negative. Connect the orange and brown wires from inside the cap assembly to the GND and
+VSconnectionsontheconnector.Ensurethecorrectpolarity,orangeispositiveandbrownisnegative.
Usingjumperwire,connectSDIO‐(white/bluewire)tothecorrectpin
onthe connectorandtheSDIO+
(white/red)tothecorrectpinontheconnector,seeFigure3.1.3(g).

Figure3.1.3(f)
