Installing the 100W-R and 100WP-R ERT Modules
TDC-0951-005 100W-R and 100WP-R Datalogging ERT Module Installation Guide 19
Proprietary and Confidential

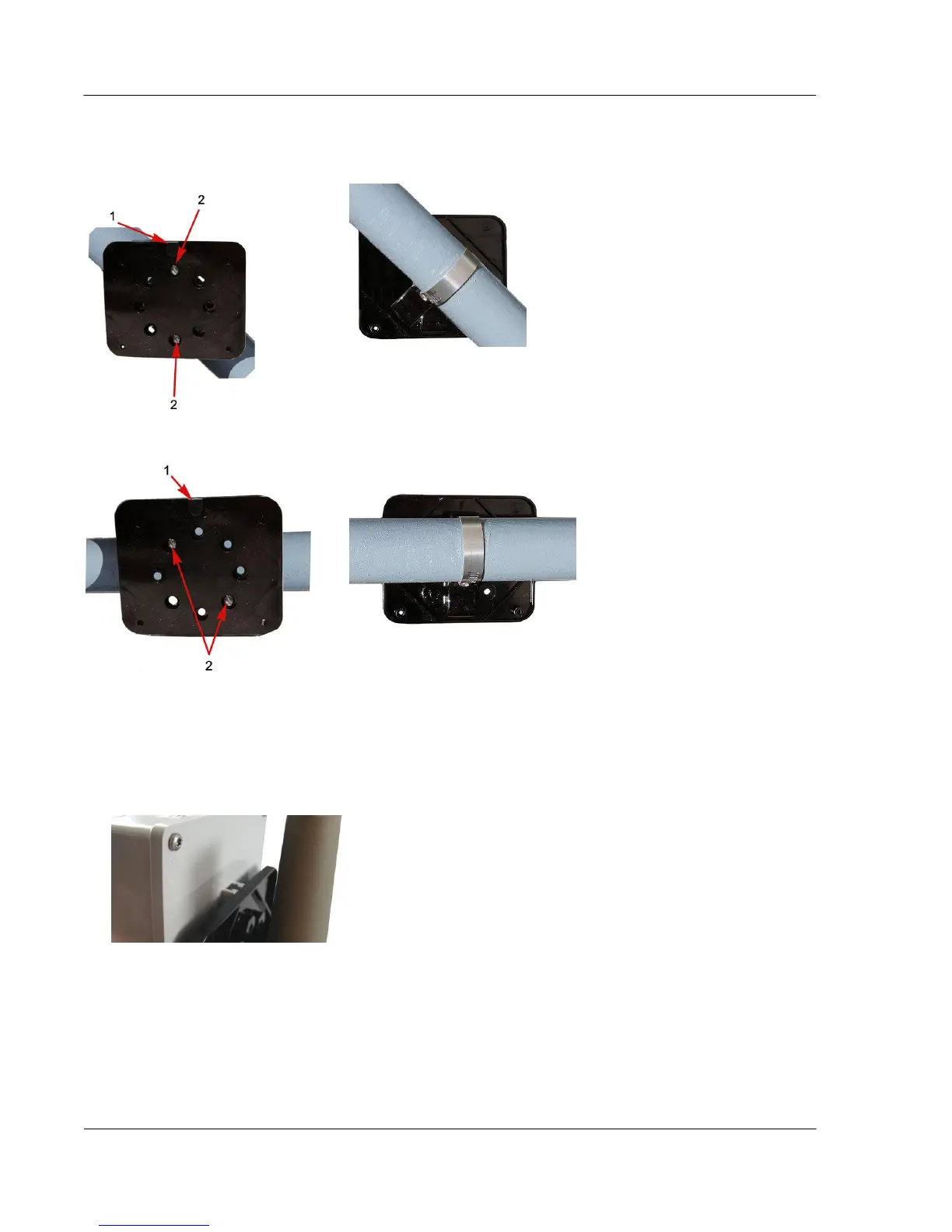

If the pipe is at a 45 degrees angle up to the left, install the adapter plate as shown in the pictures below.
If the pipe is horizontal, install the adapter plate as shown in the pictures below.
To mount the 100W-R and 100WP-R ERT modules on the adapter plate
1. Locate the two 1-inch ERT module mounting screws in the Pipe Mount Kit.
2. Slide the ERT module back cover onto the adapter, pushing up to secure the lug adapter in the lug slot.
