Installing the 100W-R and 100WP-R ERT Modules
TDC-0951-005 100W-R and 100WP-R Datalogging ERT Module Installation Guide 34
Proprietary and Confidential
To install the Elster/AMCO (ABB) Scancoder, InVISION, or Digital Direct-Mount
Caution
Verify you have an Elster/AMCO meter with a register designed for direct mount ERT modules.
Always install the ERT module right side up with the arrow on the housing pointed upward.
Note The register may or may not be mounted on the meter when performing the following steps.

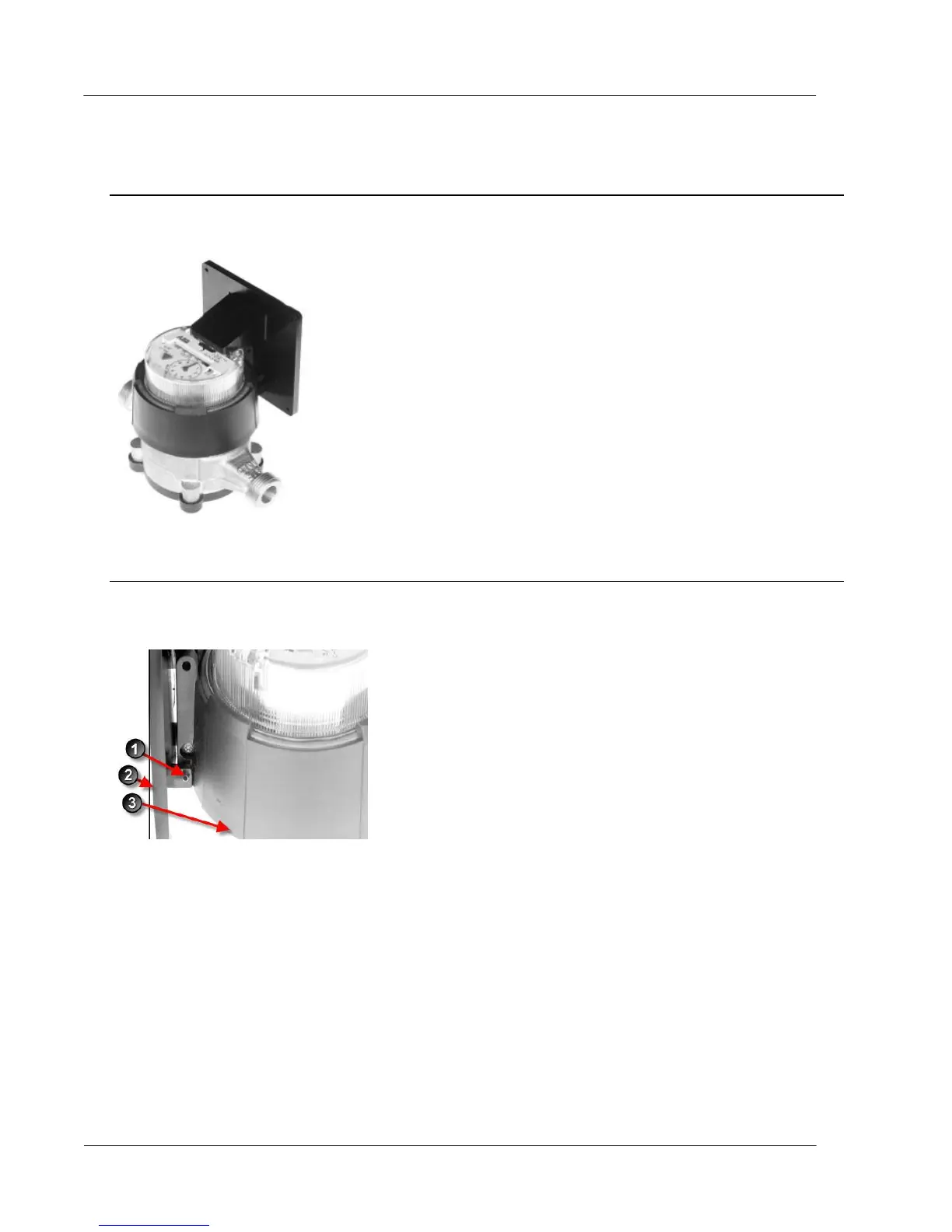

1. Push the hollow pin (1) completely out of its location and separate the ERT module mounting bracket (2)
from the meter register collar (3).
