Warning: If a three-port pit module is installed but the telemetry device is not
attached, the environmental cap (MSC-0019-0011) must remain in place on the blue
connector (telemetry) to protect the connector from damage.
After installation is complete, recycle or discard installation waste. Do not leave materials on
the customer's premises.
Through-lid installation

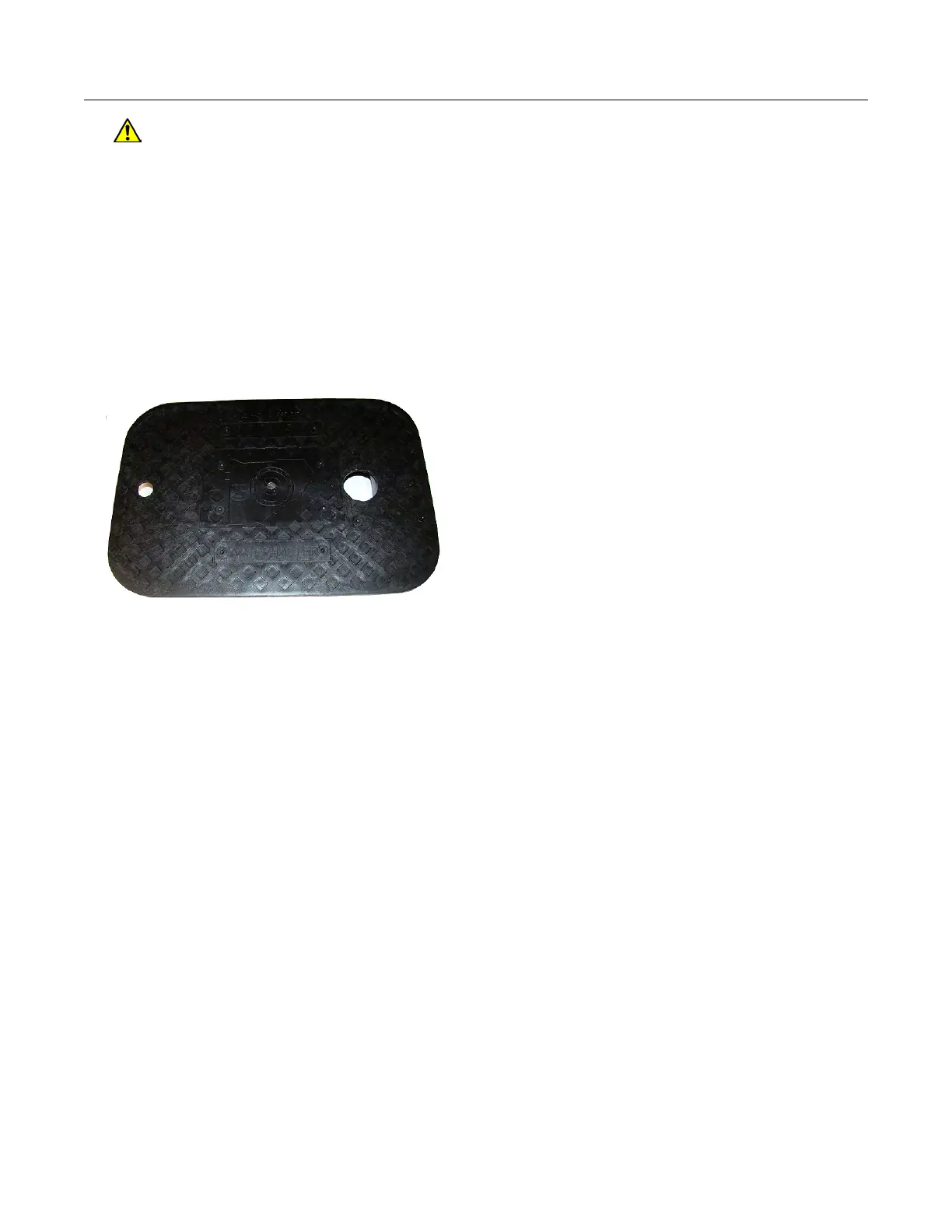

This section provides instructions to mount the pit module in a plastic or composite pit lid of
½" to 2-1/2" thickness with a drilled, round 1-3/4-inch, 1-7/8-inch, or 2-inch hole.
Through-lid mount required tools and hardware
This mounting method requires the pit lid mounting hardware (CFG-1601-001).
Note: Pit lid mounting is not intended for applications involving vehicular traf
fic. Use the
remote antenna kit in incidental traffic areas (such as residential environments).
This section provides the instructions to install the pit module in a pit lid with a hole using the
pit lid mounting bracket. Verify that you have the following items to complete the installation.
Installing the OpenWay Riva Water Pit Module
OpenWay Riva Water Pit Module Installation Guide TDC-1743-004 16
