Appendix B Connecting the Inline Connector
Note: If an inline connector is not used or the pit module is already connected to the water
meter or register, skip this step.

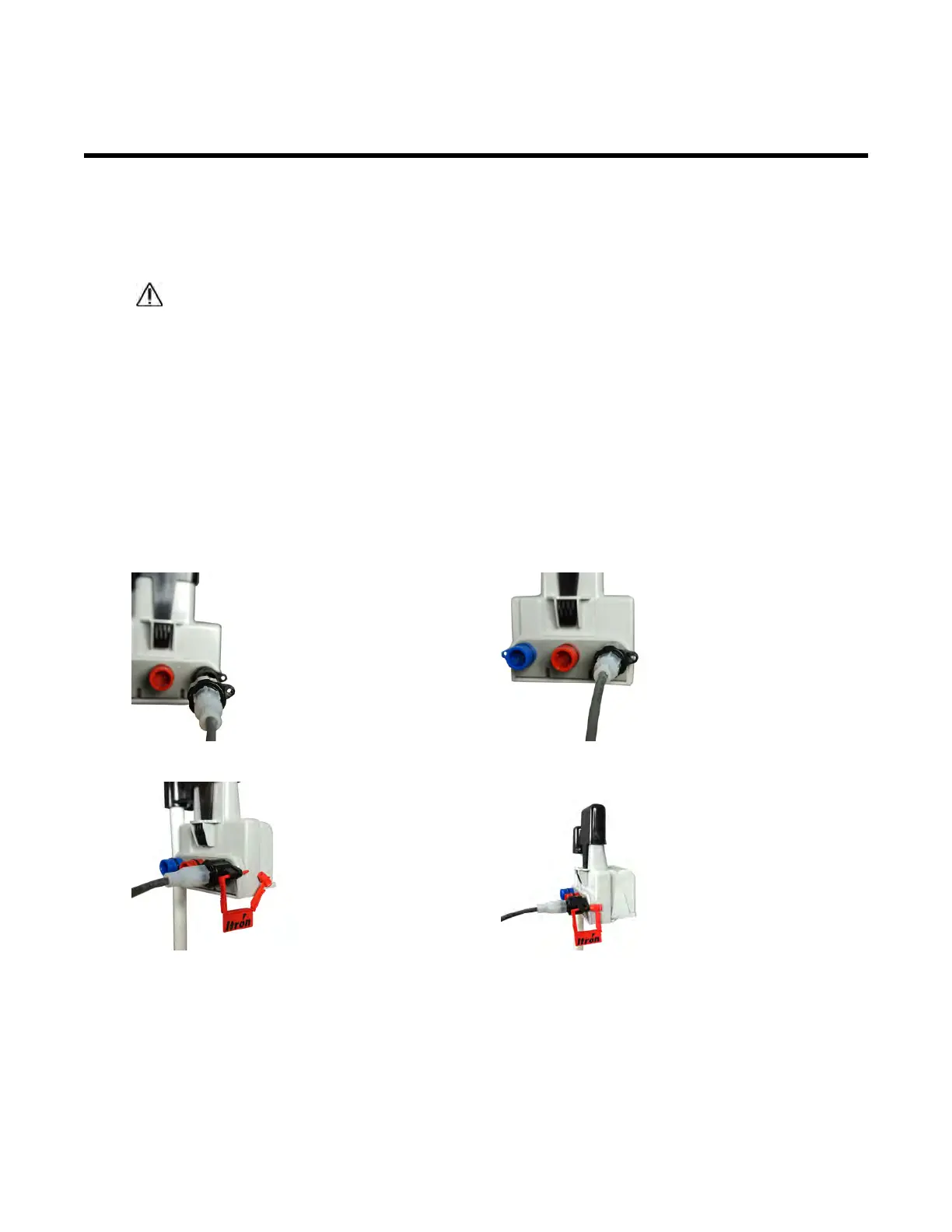

1. Remove the protective environmental cap from the module connector.
Caution: Verify that the connector ends are clean and dry before assembly.
If any of the following conditions occur, do not install the modules.
• Any of the three pins are damaged or missing.
• The O-ring is missing.
• The cable is cut or nicked.
2. Remove the protective cap from the register or accessory connector.
3. Connect the register cable to the pit module connector.
• Align the connectors.
• Push until snug.
• Twist the register cable's black coupling nut to align the two tabs.
4. Install the security seal as shown. Push it until it snaps into place.
For future meter or pit module servicing, break the security seal by pulling the seal apart.
The original protective connector caps can be reused if kept clean and dry
. Install a new
security seal after servicing either device. To order replacement security seals, see the
Water Products Ordering Guide (PUB-0063-001). Environmental caps employ multiple
seals to protect the connector from the environment. Environmental cap design allows
utilities to install the pit module and, at a future date, install a OLS or optional remote
antenna
OpenWay Riva Water Pit Module Installation Guide TDC-1743-004 34
