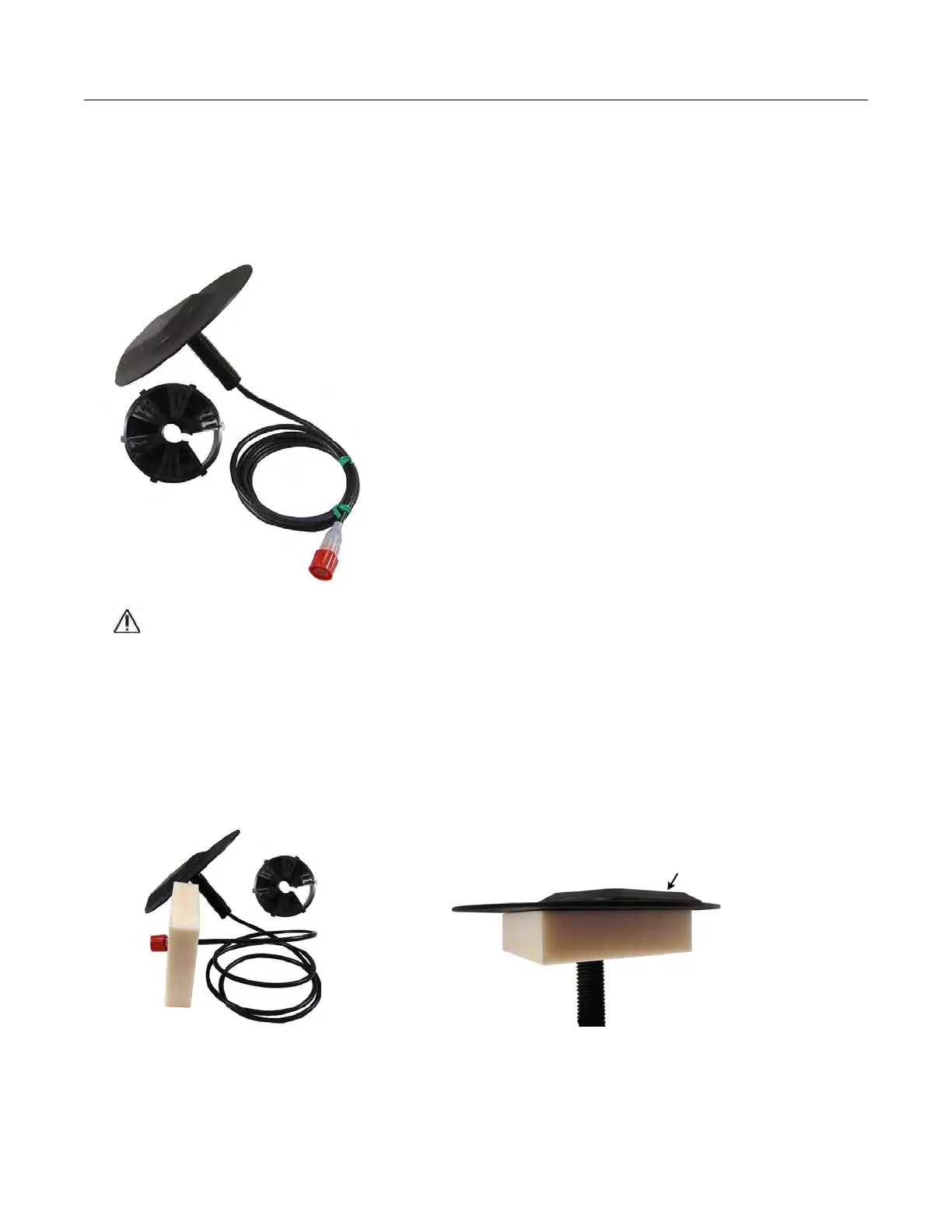

OpenWay Riva through-the-lid remote antenna
Metal lids on water pit boxes require a through-lid solution for optimal pit module radio
performance. The remote antenna is designed to fit in a pit lid hole with a diameter of 3/4-
inch and lid thicknesses from 1/4-inch to 1-3/4-inch.
Caution:
Remove cable or twist ties from the antenna cable to prevent damage to
the pit module or antenna.
Installing the through-the-lid remote antenna
1.
Thread the remote antenna connector and cable through the pit lid hole. Verify that the
antenna's convex surface is on the top of the pit lid. (These instructions show a simulated
pit lid material.)
2. Insert the antenna connector through the rectangular opening in the threaded collar.
Installing the OpenWay Riva Water Pit Module
OpenWay Riva Water Pit Module Installation Guide TDC-1743-004 29
Proprietary and Confidential
