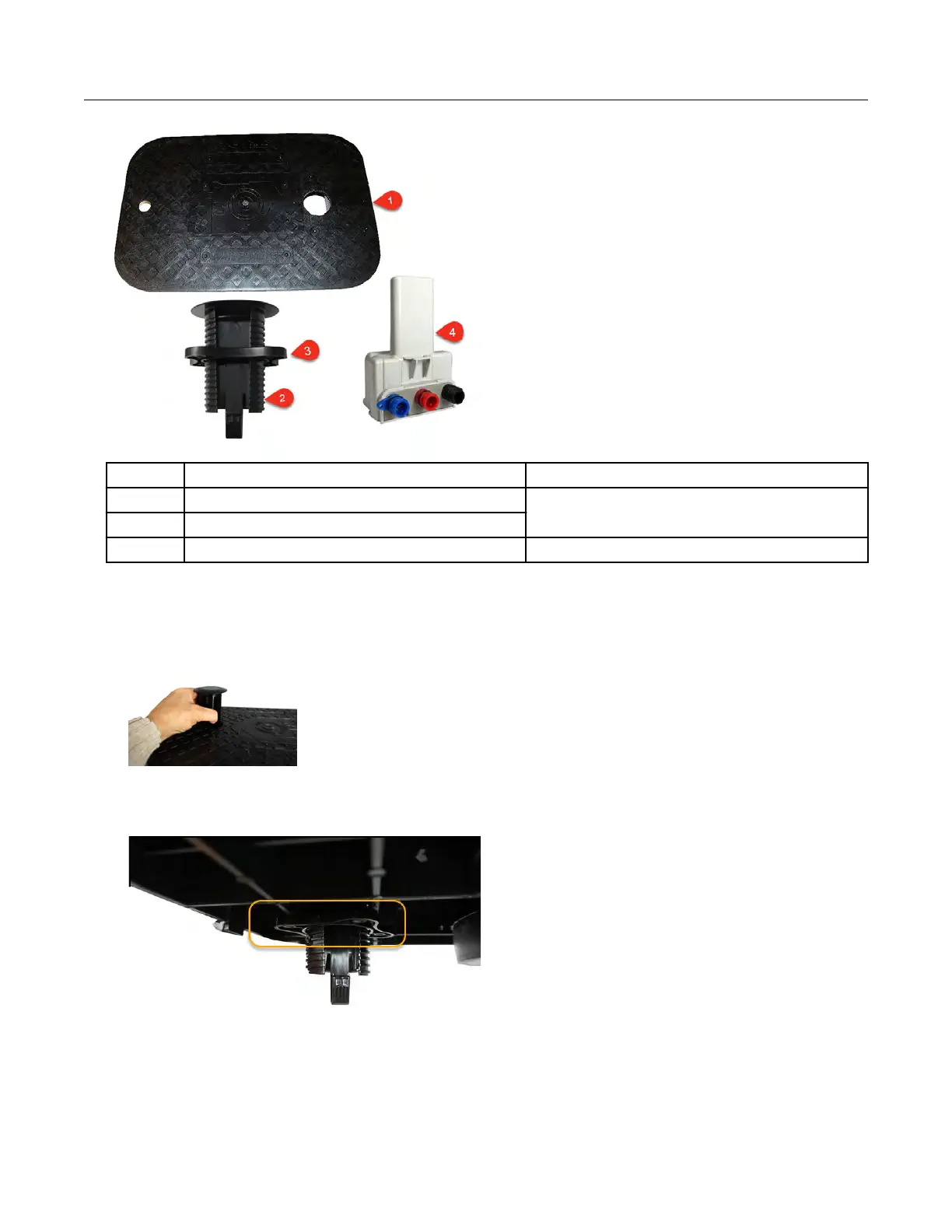

ITRON OpenWay Riva - Installing the Module in the Pit Lid

1 Pit lid with a pre-drilled hole User-supplied
2 Through-the-lid retainer clip
CFG-1601-001
3 Retainer clip collar
4 OpenWay Riva water pit module ERW-1601-001
Installing the module in the pit lid
1.
Insert the retainer clip into the pit lid hole with the convex surface on the top of the pit lid.
2. From the bottom side of the lid, screw on the threaded retainer clip collar until the
beveled top rests against the pit lid.
Note: Ensure that the beveled edge of the clip collar is toward the top of the pit lid.
3.
Align and insert the retainer clip tab (1) into the retainer clip receptacle (2) on the pit
module housing.
