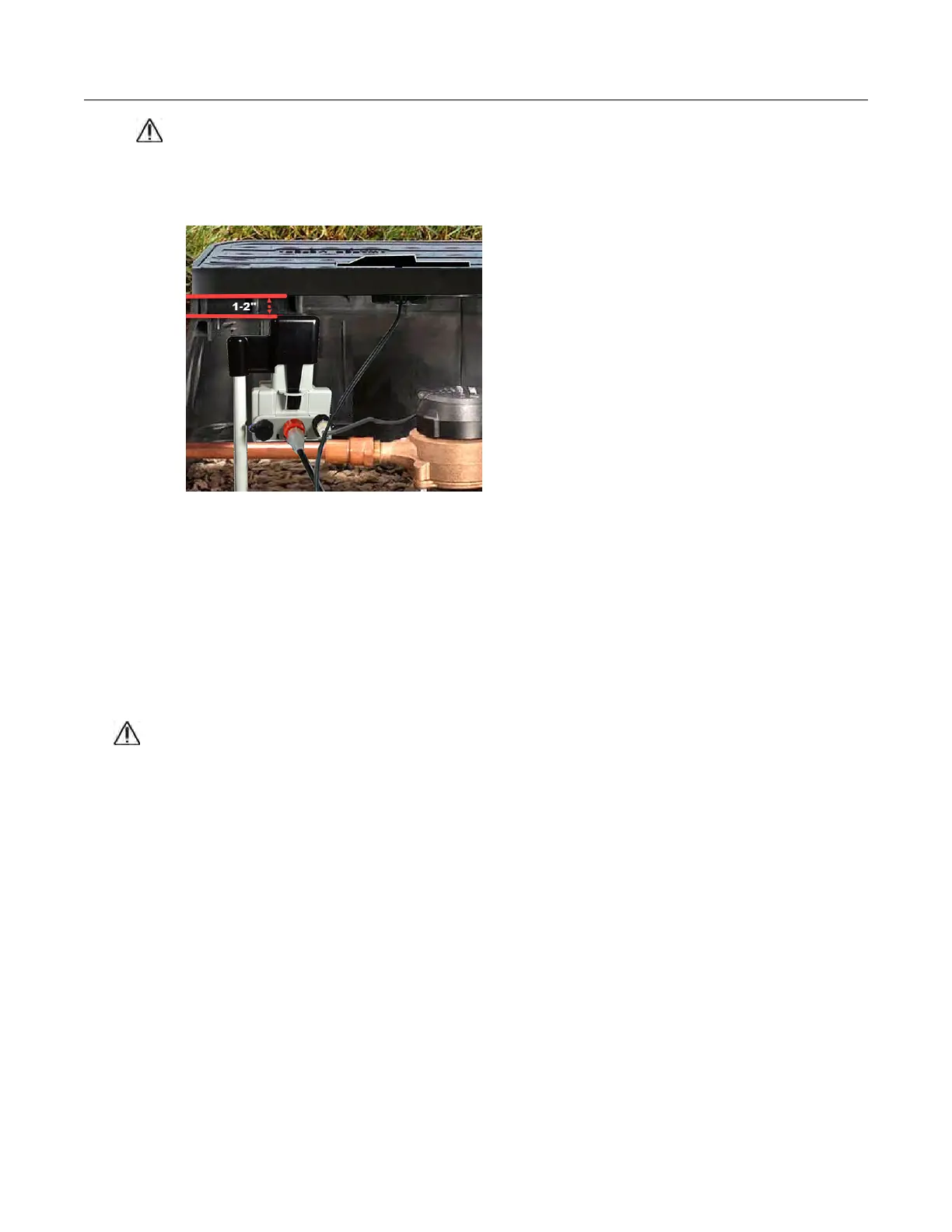

Caution: Verify that the pit lid does not touch the pit module when the lid is
replaced. There must be a 1 to 2-inch space between the top of the pit module
and the bottom of the pit lid. If the pit module is installed too high or too low, or is
touching any of the surrounding surfaces, adjust the installation as necessary.
Wall mount installation
Important:
Wall mount installation in a pit requires the mounting adapter from the remote
antenna kit. For more information, see Pit module mounting accessories on page 15
Select a flat vertical mounting surface. Install the pit module in an upright position. Locate
the pit module as high as possible in a water pit box. Maintain a distance of one to two
inches from the bottom of the pit box lid.
Caution:
Observe the following guidelines for mounting the pit module using the wall mount
procedure:
•
ERT module positioning other than upright will negatively affect radio
performance.
• Use inline connectors to connect the OpenWay Riva water module to the register
or meter. If a splice is required to connect the register or meter, you must use the
Itron splice kit (OEM-0034-002).
The pit module works accurately with Itron-approved cable type and lengths up to 300 feet.
Installing the module to the pit wall
1. Select a vertical, flat surface in the pit box.
2. Insert the rod/wall mounting bracket tab (1) into the module tab receptacle (2).
Installing the OpenWay Riva Water Pit Module
OpenWay Riva Water Pit Module Installation Guide TDC-1743-004 22
