3. Position the pit module vertically so the top of the pit module is between 1 and 2 inches
below the bottom of the lid.
4.
Mark the location of the top mounting hole.
5. Drill a pilot hole in the pit box wall. Follow the screw manufacturer's recommendation for
the pilot hole size.
6.
For concrete-type pit boxes, it may be necessary to use a screw anchor. Choose an
anchor appropriate for a #10 pan head screw.
Caution:
Do not over-tighten the mounting screws. Over-tightening the mounting
screws may break the pit module mounting tabs.

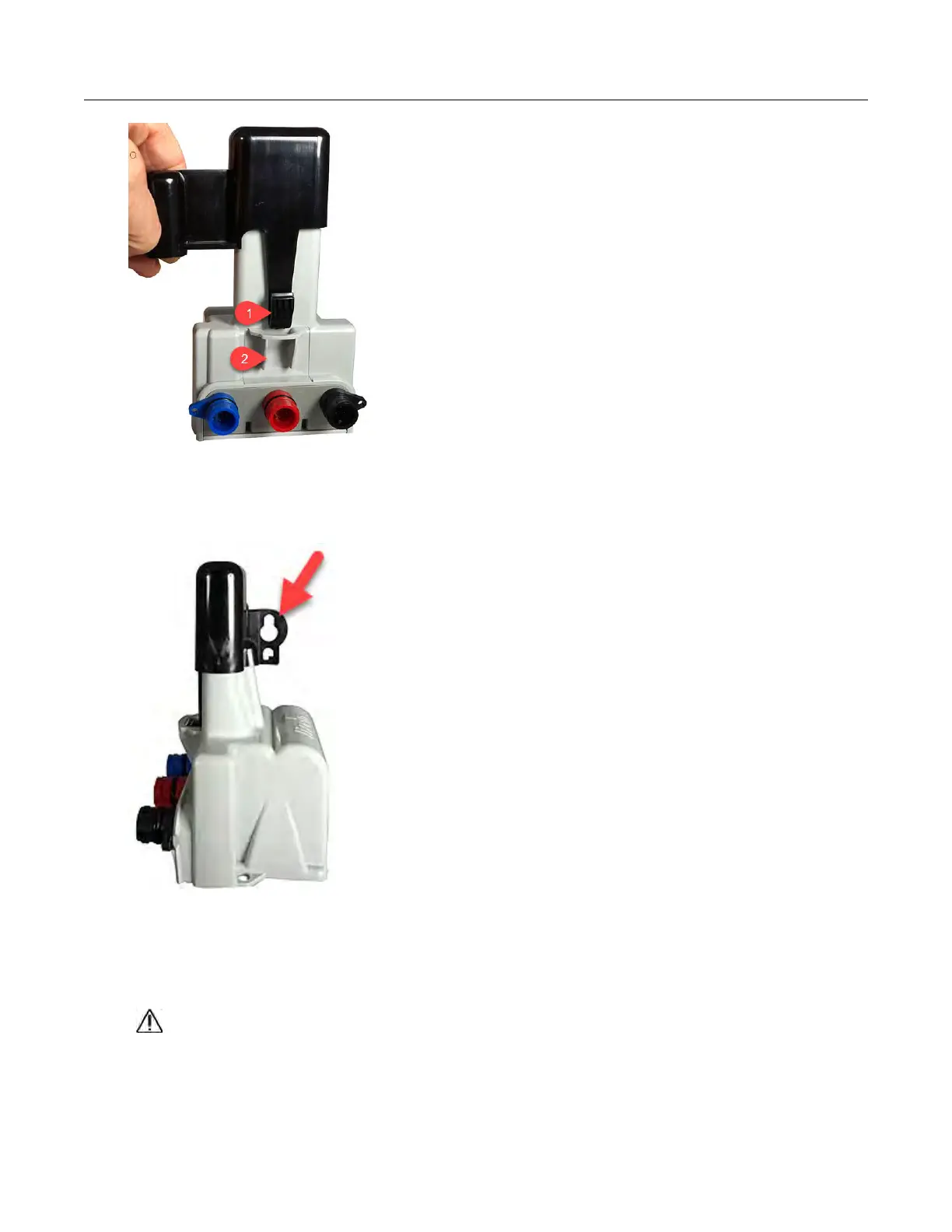

7. Start a screw into the pilot hole. Using the top hole of the pit module, set the pit module
over the screw head and slide it down so the screw is now at the top of the notch.
Installing the OpenWay Riva Water Pit Module
OpenWay Riva Water Pit Module Installation Guide TDC-1743-004 23
