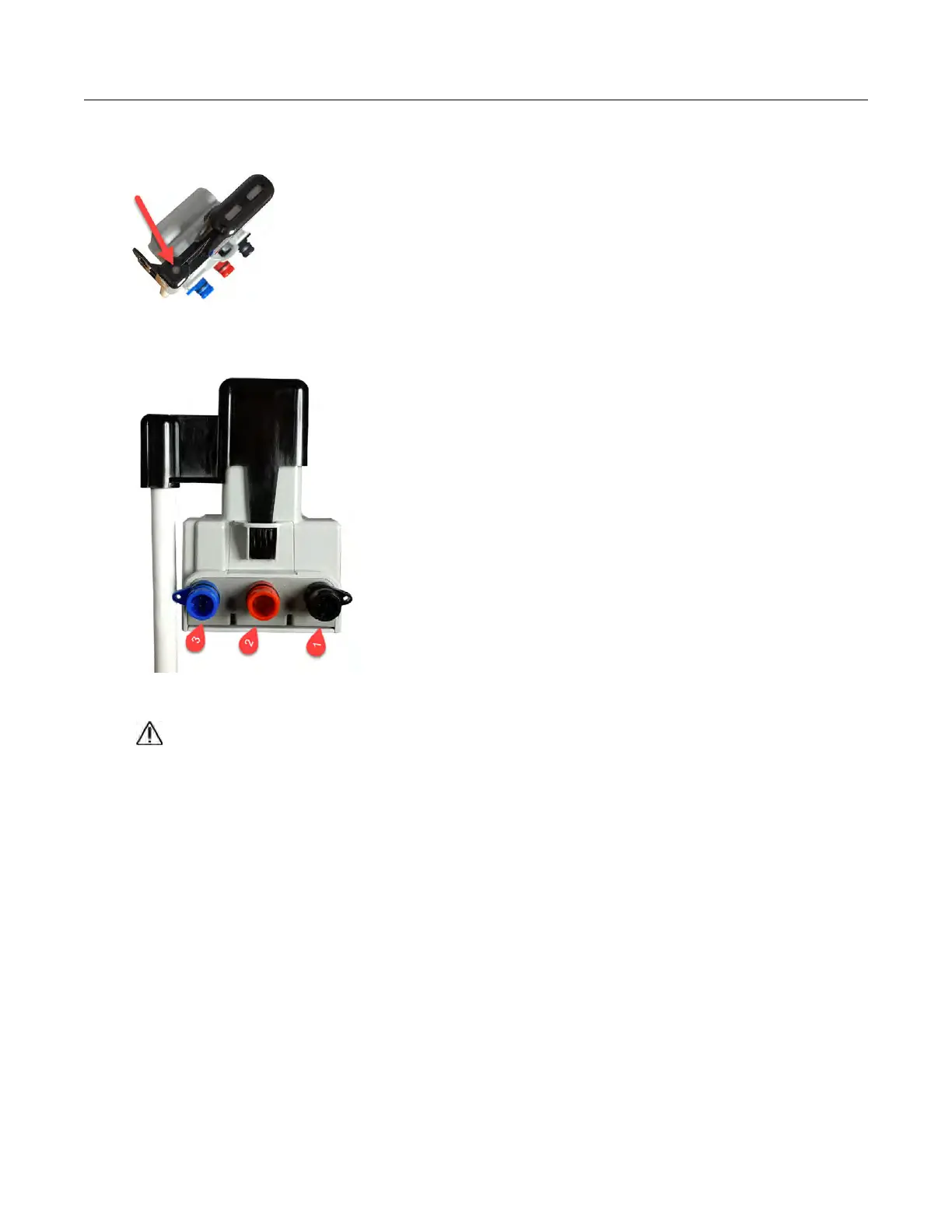

7. You may secure the pit module to the rod with a self-drilling screw through the hole in the
top of the pit module's rod mount cavity.
8. Connect the register (black connector, 1), optional remote antenna (red connector, 2) and
optional telemetry device (blue connector
, 3) into the appropriate connection.
9. Turn the connector locking ring to secure the connection.
Caution:
Turn only the locking ring. Turning the entire connector could damage
the connector pins.
10. Installation is complete when the pit module is perpendicular to the underside of the lid.
The pit module must not contact the pit structure or lid.
Installing the OpenWay Riva Water Pit Module
OpenWay Riva Water Pit Module Installation Guide TDC-1743-004 21
