Fault parameter registration

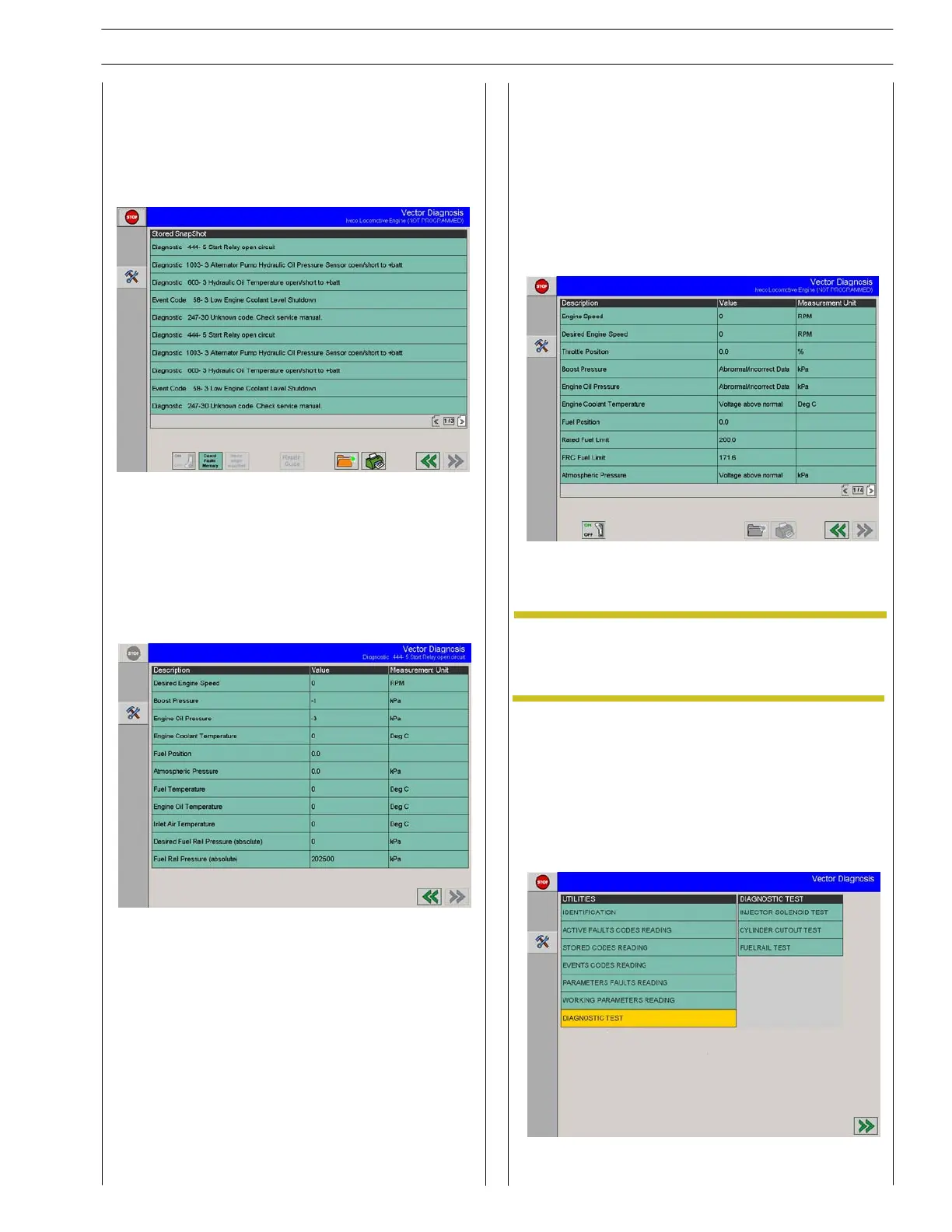

The ”Stored SnapShot” screen provides a picture of the
conditions at the time when a fault or event occurred. The
diagnosis software makes it possible to store up to 50 faults
or events. This screen also allows you to perform clearing.
Reading and recording fault parameters
Fault parameter reading - Environment conditions
By selecting a fault or event from the previous screen, the
related environment conditions are provided.
Displaying the related environment conditions
Work parameter reading
Work parameters include all the parameters available in the
control unit.
It is important t hat work parameters are read when th e system
is active (engine running).
The ON/OFF button allows you to have, according to the
choice made, the parameters updated (button set to ON) or
frozen upon selection (button set to OFF).
Work parameter reading
Diagnostic Test
The ”Utilities” screen allows y o u display the E ngine Test
options available.
The diagnosis software provides for the following tests:
Displaying the Engine Test options available
Note — In order to ”freeze” the parameters
displays, position the ON/OFF pushbutton on O FF.
Then save by pressing the specific pushbutton.
NOTE
SECTION 3 - INDUSTRIAL APPLICATION
61
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
To Next Page
