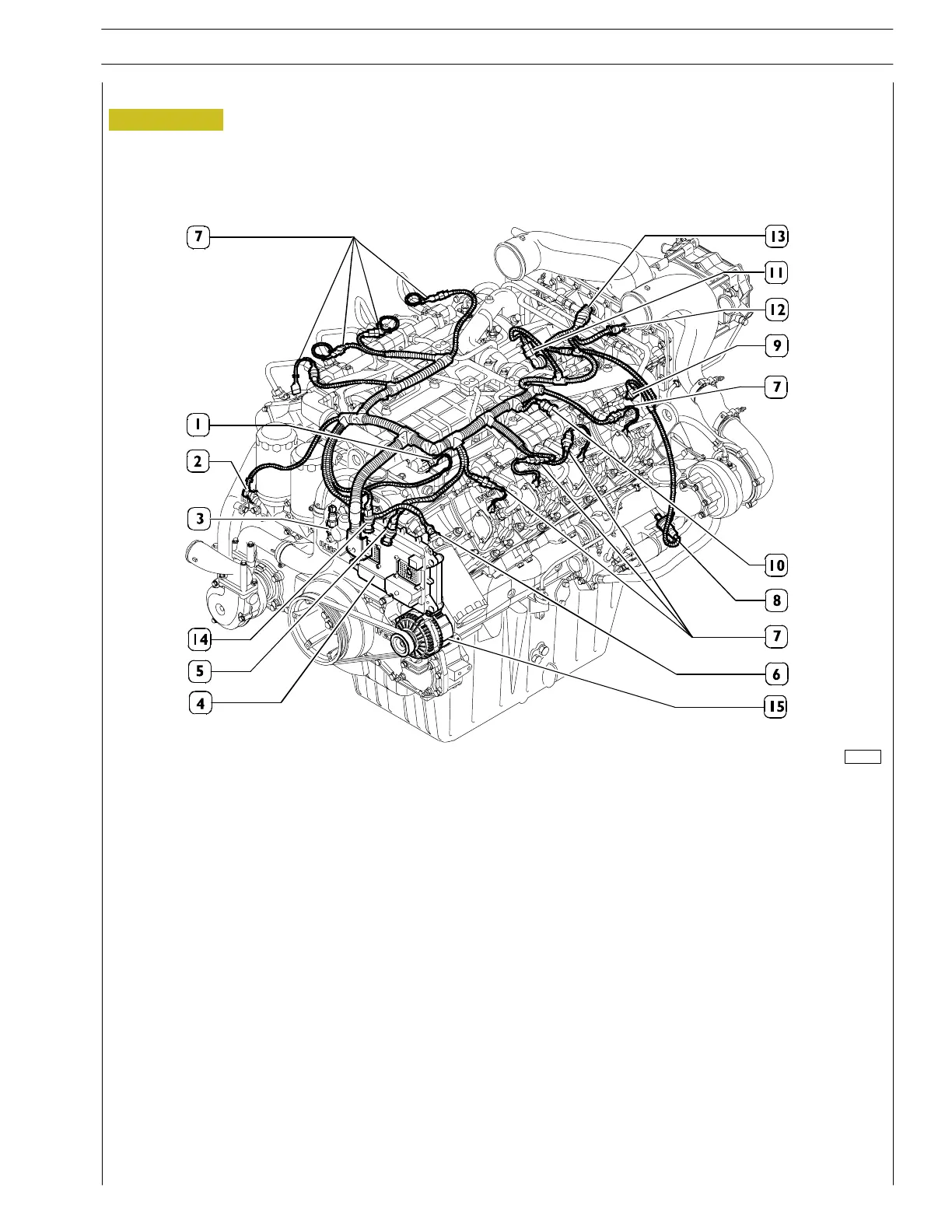

Figure 1
1. Engine c oolant temperature sensor — 2. Engine oil temperature sensor — 3. Oil filter clogging sensor — 4. ADEM III engine
control module — 5. Atmospheric pressure sensor — 6. Fuel temperature sensor — 7. Electro—injectors — 8. Engine
speed/timing sensor on crankshaft — 9. Engine speed/timing sensor on camshaft — 10. Common rail fuel pressure sensor —
11. Common rail high pressure control solenoid valve, also called pulse wide modulation (PWM) or M—Promp valve —
12. Intake air temperature sensor after int ercooler — 13. Intake air pressure sensor —
14. Engine oil pressure sensor — 15. Alternator
103265
LOCATION OF COMPONENTS ON THE ENGINE
SECTION 3 - INDUSTRIAL APPLICATION
45
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
