Iveco VECTOR Series User Manual

COOLING SYSTEM ASSEMBLY

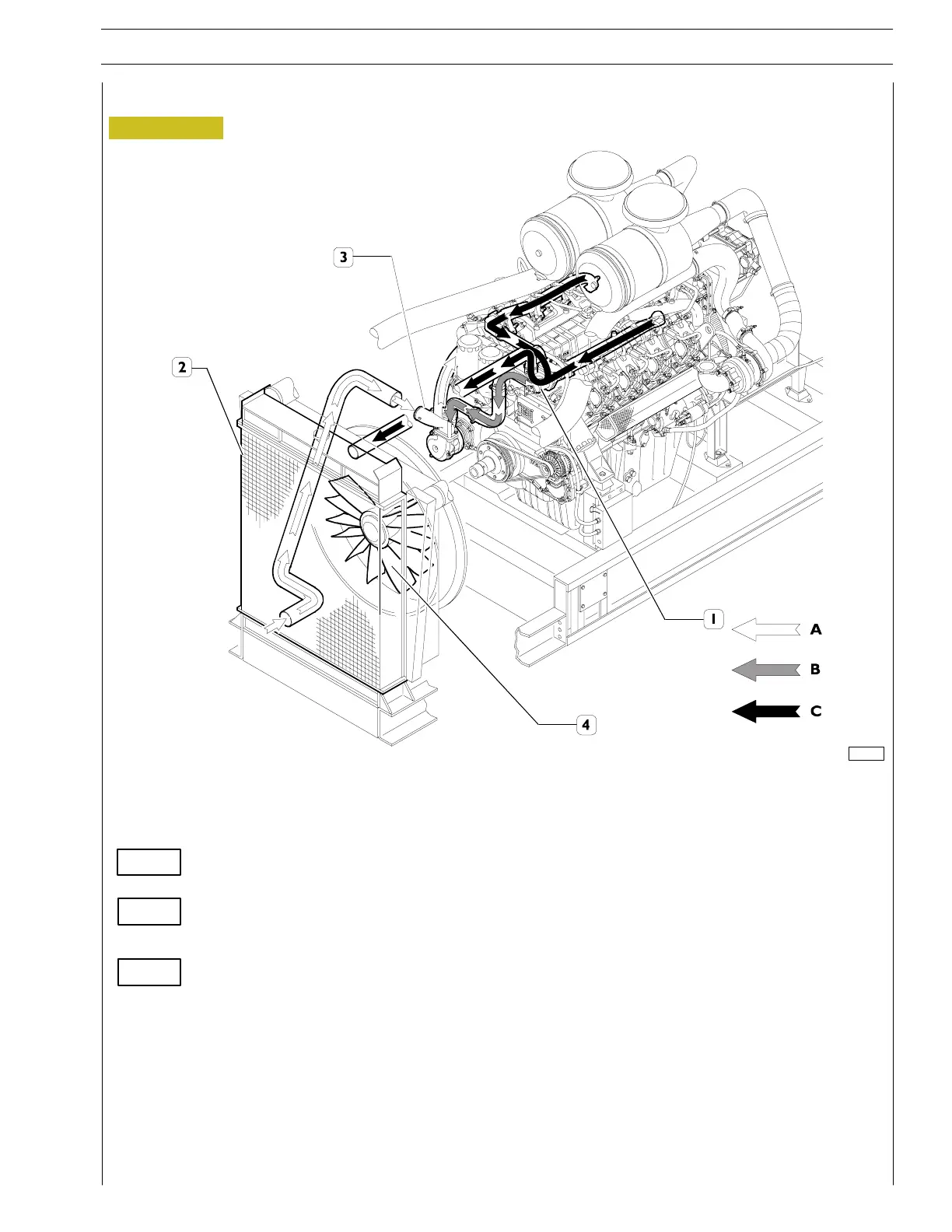

Figure 7
Coolant coming from the cooling radiator being drawn into the pump.
Coolant coming from the engine block passing through the thermostat casing (temperature < 70˚C) sent to the
circulation pump.
Coolant coming from the engine block passing through the thermostat casing (thermostat valve opening
temperature around 70˚C, complete travel 85˚C) to the cooling radiator.
112492
1. Thermostat casing - 2 . Radiator - 3. Coolant circulation pump - 4. Cooling fan.
A
B
C
SECTION 1 - GENERAL SPECIFICATIONS 9
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
