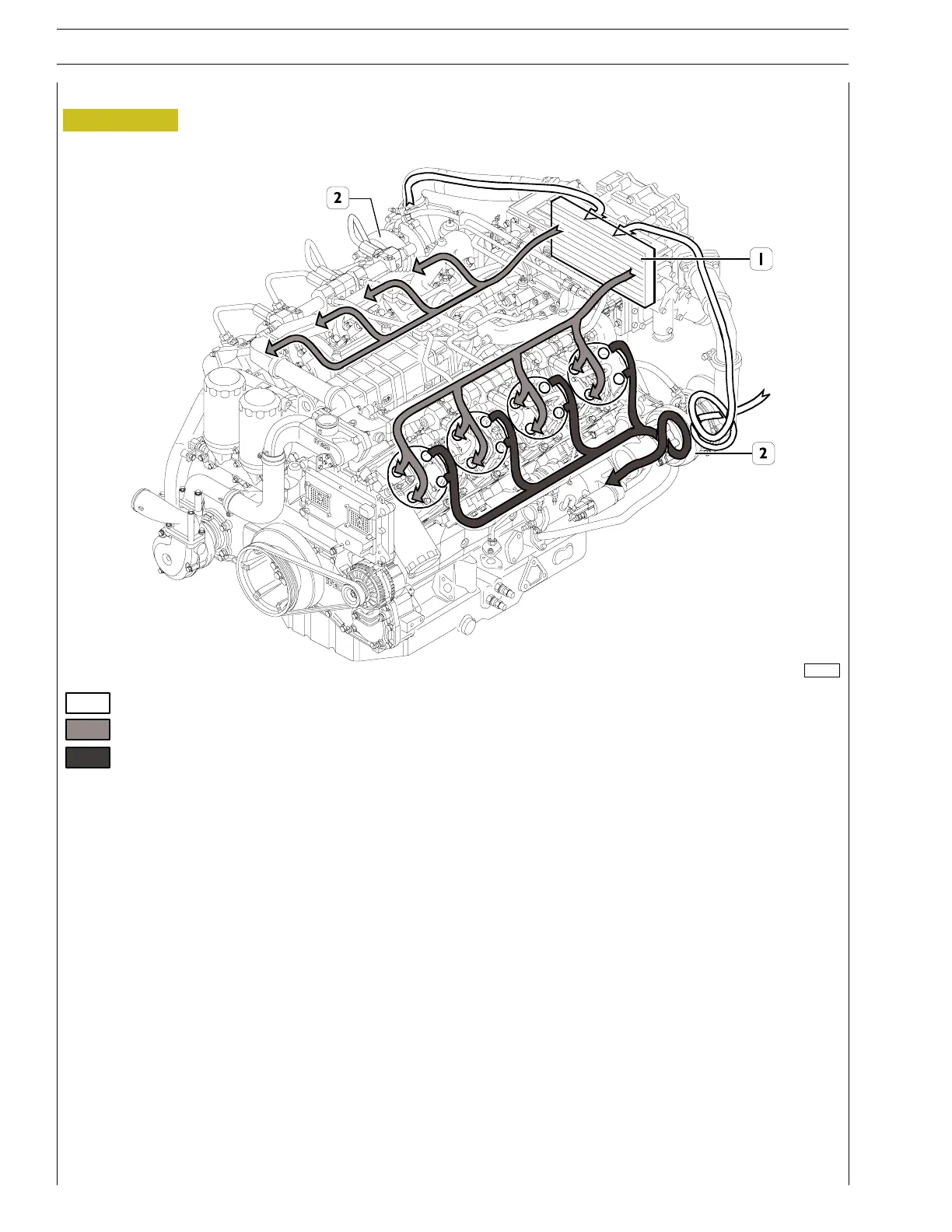

AIR / WATER INTERCOOLER SYSTEM (SPRINKLER APPLICATIONS)
Figure 10
112488
1. Heat exchanger (air/water intercooler) - 2. Turbochargers
Intake air and hot compressed air
Cold compressed air
Exhaust
12
SECTION 1 - GENERAL SPECIFICATIONS
VECTOR 8 ENGINES
Base - April 2006 Print P2D32V001E
