Oil vapour recirculation - blow-by filter
The oil vapours produced by the l ubrication of the moving parts are directed via the pipe (3) and then are collected and filtered
in the blow - by (1).
In the blow -by, some of the vapours condense and return to the oil sump via the pipe (2), whilst the remaining vapours are
recirculated in the intake.

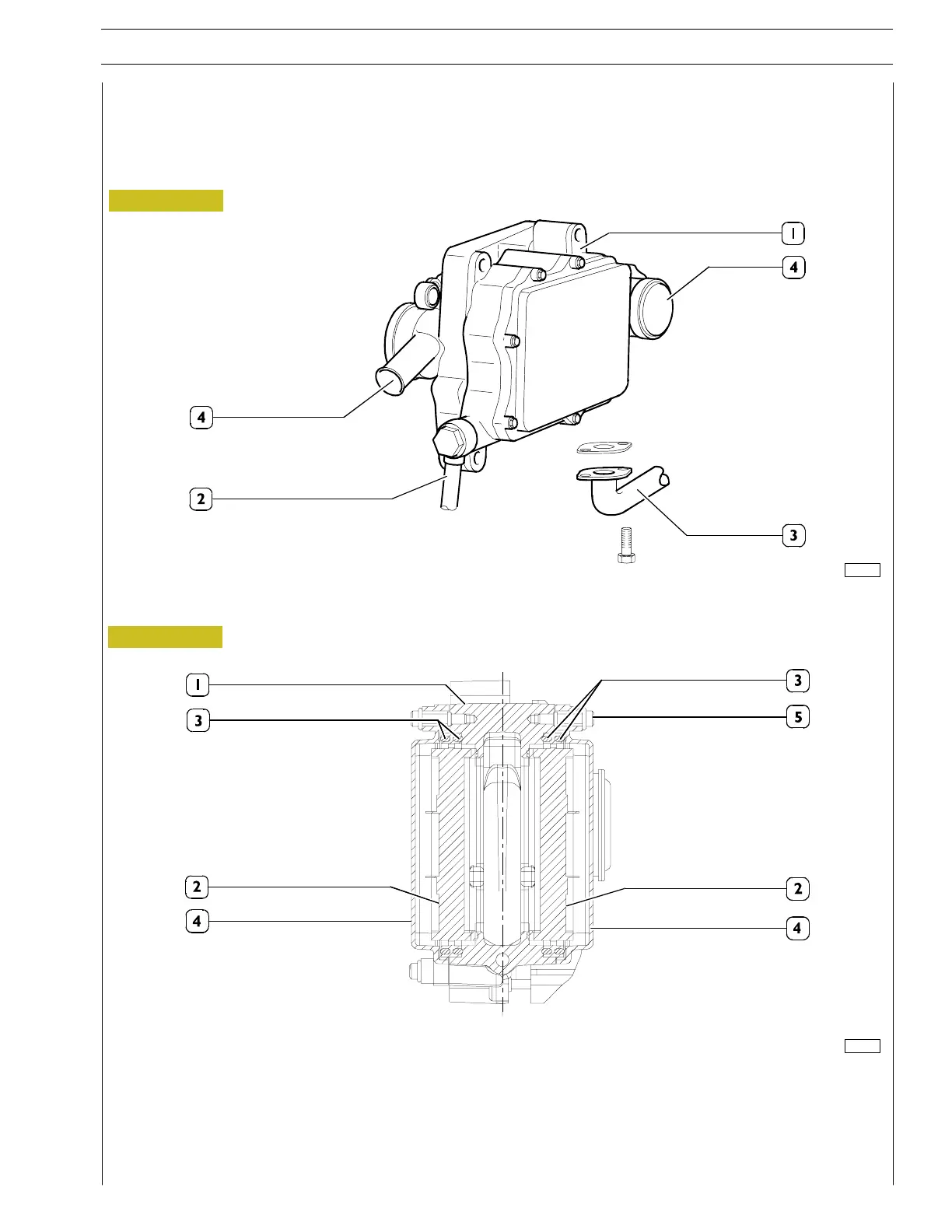

1. Blow-by filter - 2. Sump drainage pipe - 3. Oil vapour inlet - 4. Gas outlet
Figure 4
Figure 5
1. Blow-by filter casing - 2. Filter - 3. Gasket - 4. Cover - 5. Cover fixing bolts
The blow-by comprises two filtering layers (2), a casing (1) and two gaskets (3) which ensure the seal between the casing and the
two covers (4).
