Figure 19
Figure 20
Figure 21
Figure 22
Figure 23

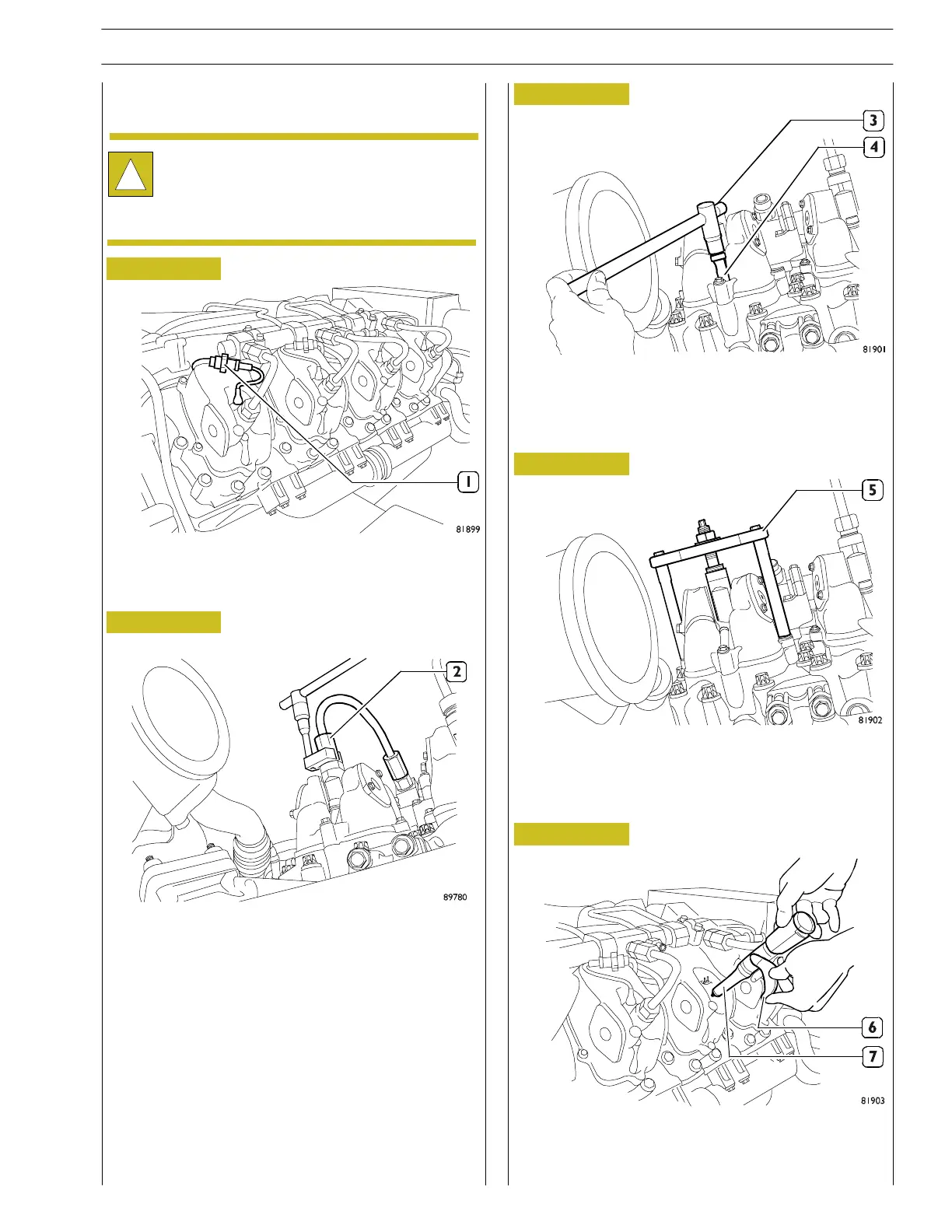

- Disconnect the power supply cables (1).
- Unscrew the cheese-headed screw M10x70 (3)
fastening the fixing bracket (4).
- Now fit on tool 99368505 (5) and, using the specific
wrench, completely remove the injector from its casing.
- Clean the injector seat.
- On completing these operations, fit the injector (7) back
on together with the fixing bracket (6).
!
Handle all parts extremely carefully .
Never get your hands or fingers between pieces.
Wear th e required s afety clothing such as goggles,
gloves, safety shoes and helmet
CHANGING AN INJECTOR
To change an inject or, proceed as illu strated h ere:
- Disassemble the pipes (2) on the inject or side and on the
flow limiting device side by means of wrench 99368506.
SECTION 3 - INDUSTRIAL APPLICATION
93
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
