Iveco VECTOR Series User Manual

Figure 69
Figure 70
Figure 71

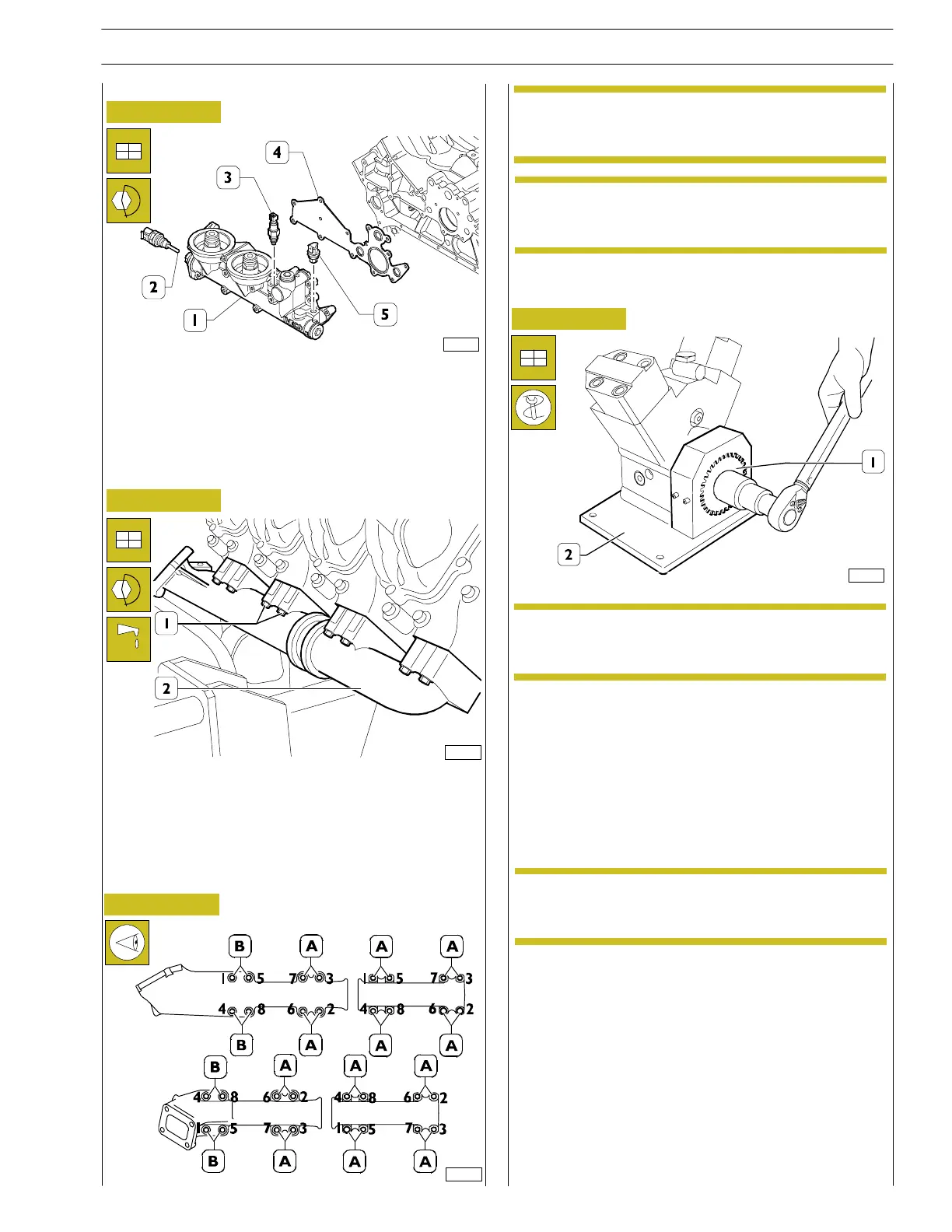

- From the front, fit the engine oil filter support (1)
together with the temperature transmitter (2), pressure
sensor (5), the gasket (4) and the filter clog senso r (3).
- Tighten the M8x1.25 fixin g screws to a torque of 22—27
Nm.
- Fit the exhaust manifolds (2) tightening the screws (1)
M10x1.5 in two phases:
A: torque 47÷53Nm
B: pre—torque 47÷53 Nm
torque 64÷70 Nm
- Assemble gear (1) with tool 99368517; tighten the fixing
nut to 350 torque (300 Nm with the screwdriver with
final take off at 350 Nm with dynamometric wrench).
- Fit the high—pressure fuel pump together with its driving
gear and seals.
- Tighten the M10x1.5 fixing screws to a torque of 49—60
Nm.
Before tightening the screws (see order in
Figure 71), lubricate them with graphitized oil.
Always fit n ew gaskets.
Before tightening, lubricate the screws with UTDM
oil or alternatively with engine oil.
- Fit the intake manifolds toget her with new gaskets on the
heads.
- Tighten the M10x1.25 screws to a torque of 38—45 Nm.
- Fit the diesel supply pipe to the high—pressure pump.
Piping M18x1.5 tighten on the coupling to a torque of
50 Nm.
- Fit the water—oil cooler after changing the two O—rings.
- Tighten the 6 M10x1.5x40 mm screws to a torque o f
25—30 Nm.
Figure 72
Wash and grease the shaft of the pump before
mounting the gear.
82216
COMPLETING THE ENGINE
82258
82215
89802
NOTE
NOTE
NOTE
NOTE
SECTION 3 - INDUSTRIAL APPLICATION
33
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
