© 2019 Jackson Labs Technologies, Inc. 7
Micro-JLT GNSS™ User Manual

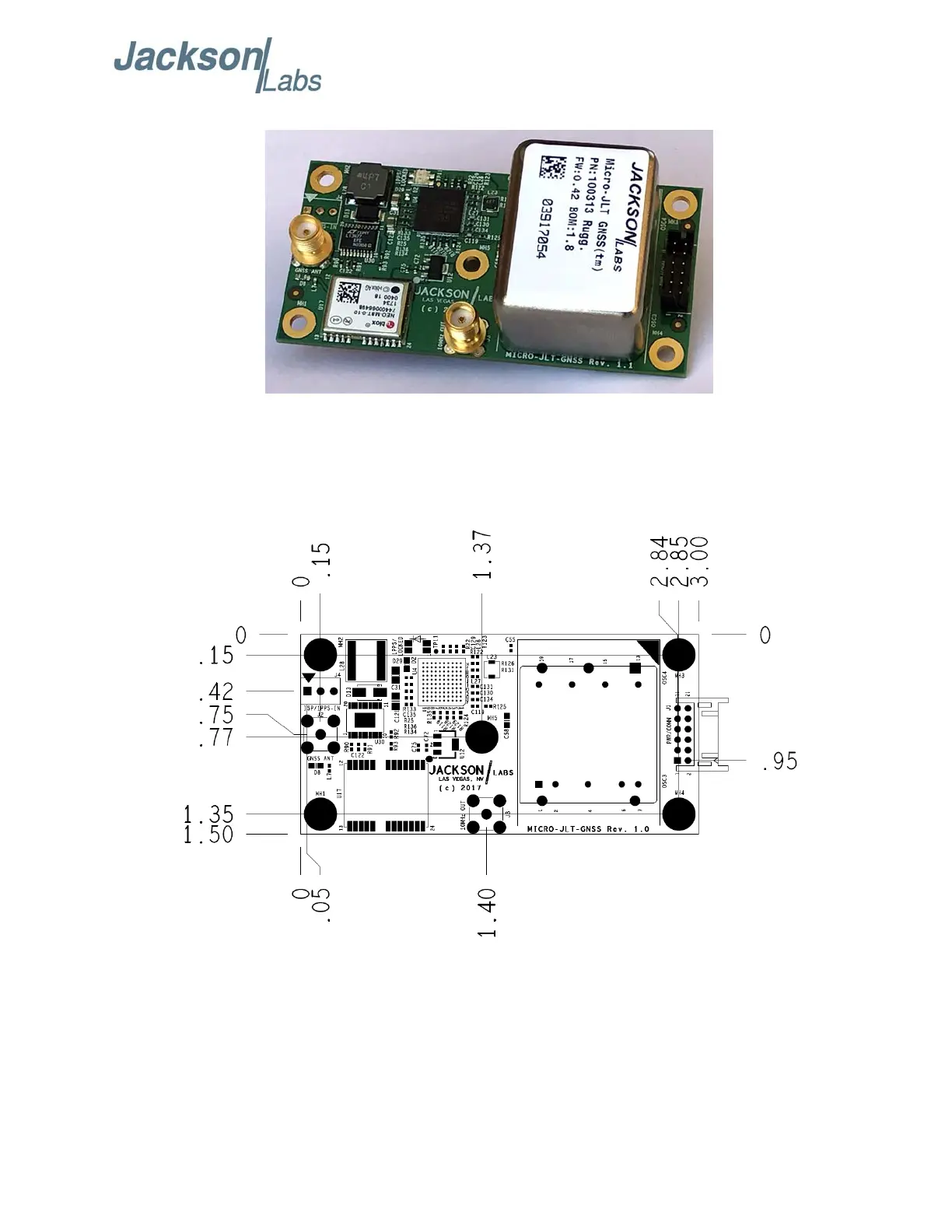

Figure 2.2 Micro-JLT GNSS™ Double Oven PCB
2.1.2 Mechanical Drawings
The following drawings show the mechanical dimensions and the pinout of the Micro-JLT GNSS™
PCB:
Figure 2.3 Micro-JLT GNSS™ Mechanical Dimensions
