ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

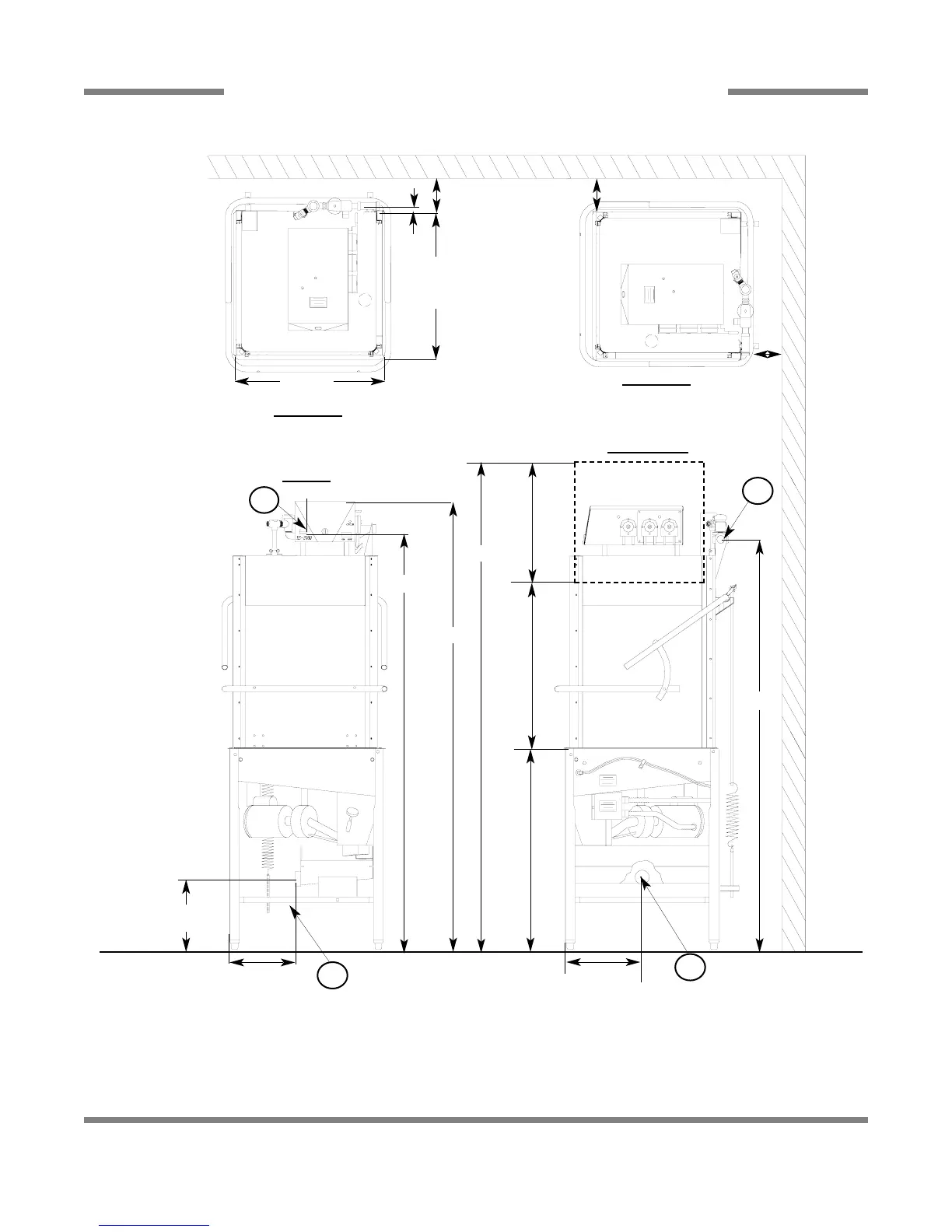

DIMENSIONS ES-2000HH
6
4” MIN.
TOP VIEW
RACK GUIDES IN STRAIGHT
THROUGH CONFIGURATION
5” MIN
TOP VIEW
RACK GUIDES IN CORNER
CONFIGURATION
12”
24 1/4”
DOORS
27” MAX
CLEARANCE
34”
TABLE HEIGHT
1”
11 1/2”
FRONT
RIGHT SIDE
NOTE: DRAIN IS ON FAR
SIDE OF ACCUMULATOR
4” MIN.
12 1/2”
A
B
A
C
72”
A- DRAIN CONNECTION 2” NPT
B- ELECTRICAL CONNECTION 3/4” CONDUIT
C- WATER INLET 3/4” NPT
ALL DIMENSION FROM FLOOR ARE ADJUSTABLE +/-
1/2” DUE TO BULLET FEET.
72”
77”
86”
25 1/4”
25 1/4”
