ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION
64

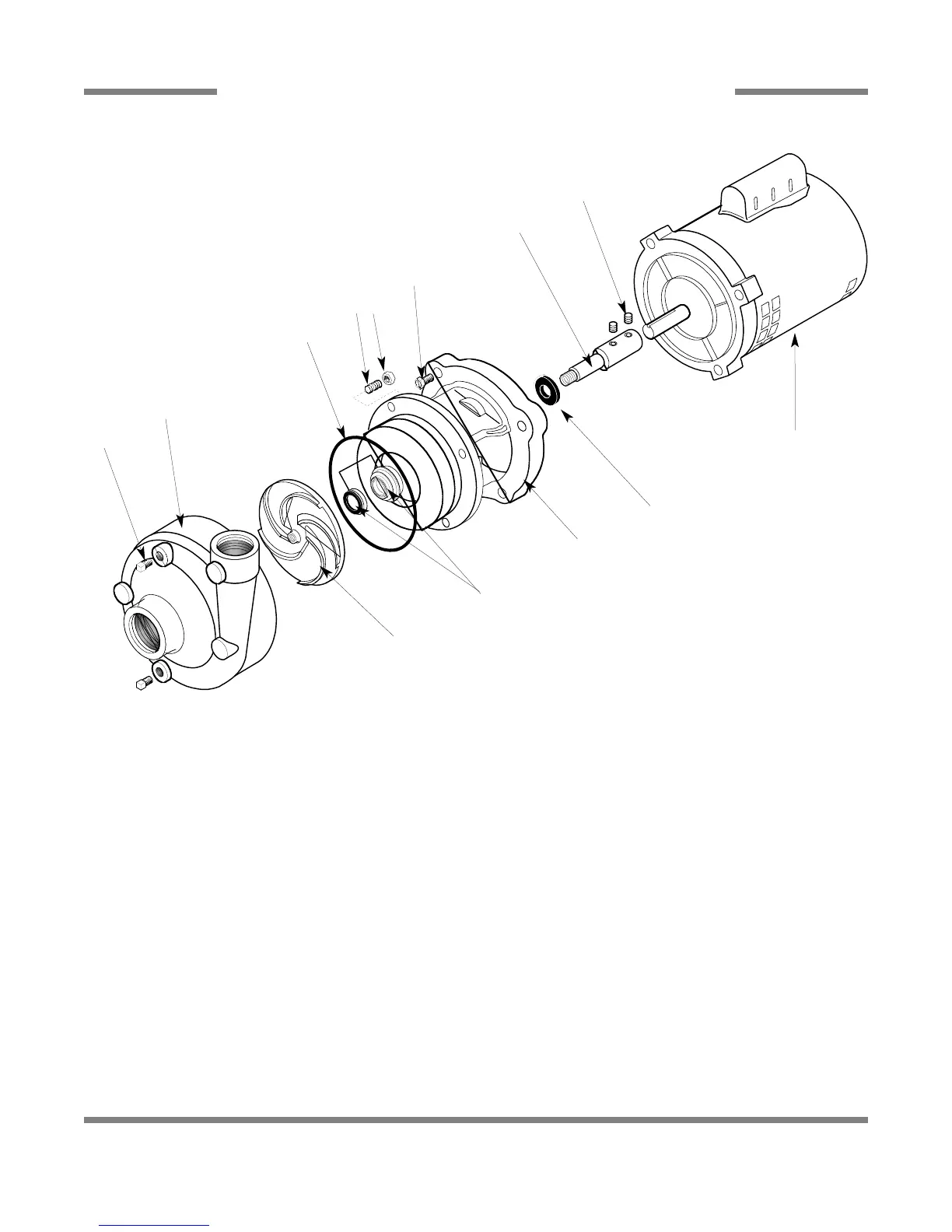

PUMP & MOTOR ASSEMBLY
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 2 Pipe Plug, 1/4” NPT, Brass 86135019 04730-209-01-00
2 1 Volute (only available as an assembly, see item 15) N/A N/A
3 1 Impeller, Stainless 96557780 05700-002-06-19
4 1 O-ring, Housing Seal 87203900 N/A
4b. 1 Gasket (Flat) 84805944 05330-011-95-18
5 1 Pump Seal 84804723 05330-002-87-16
6 4 Stud, Socket Head 3/8”-16 x 1 1/2” 88926002 N/A
7 4 Nut, Hex, 3/8”-16 S/S 88422068 N/A
8 4 Cap Screw, 3/8”-16 x 1-1/4”, S/S 88021050 N/A
9 1 Bracket, Motor to Pump 96583810 N/A
10 1 Slinger, Pump Shaft 96031059 N/A
11 1 Shaft Adapter/Connector 96562764 N/A
12 2 Allen Head Setscrew, 1/4”-20 x 1/4” 88220007 N/A
13 1 Pump Motor 83710418 06105-121-35-18
14 1 Pump Assembly (Items 1-12) 96562715 N/A
1
2
3
5
*4
6** 7
8
9
10
11
12
13
* Previous models used a flat gas-
ket. O-ring seal can be replaced
with flat gasket. Flat gasket must be
replaced with flat gasket only.
** Apply red Loc-Tite adhesive to
threads before installation into
volute housing. Tighten using 3/16”
allen wrench.
