Jackson ECOLAB ES-2000 - Wash Manifold Assembly (ES-2000 & ES-4000); Wash Arm Assembly (ES-2000 & ES-4000)

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

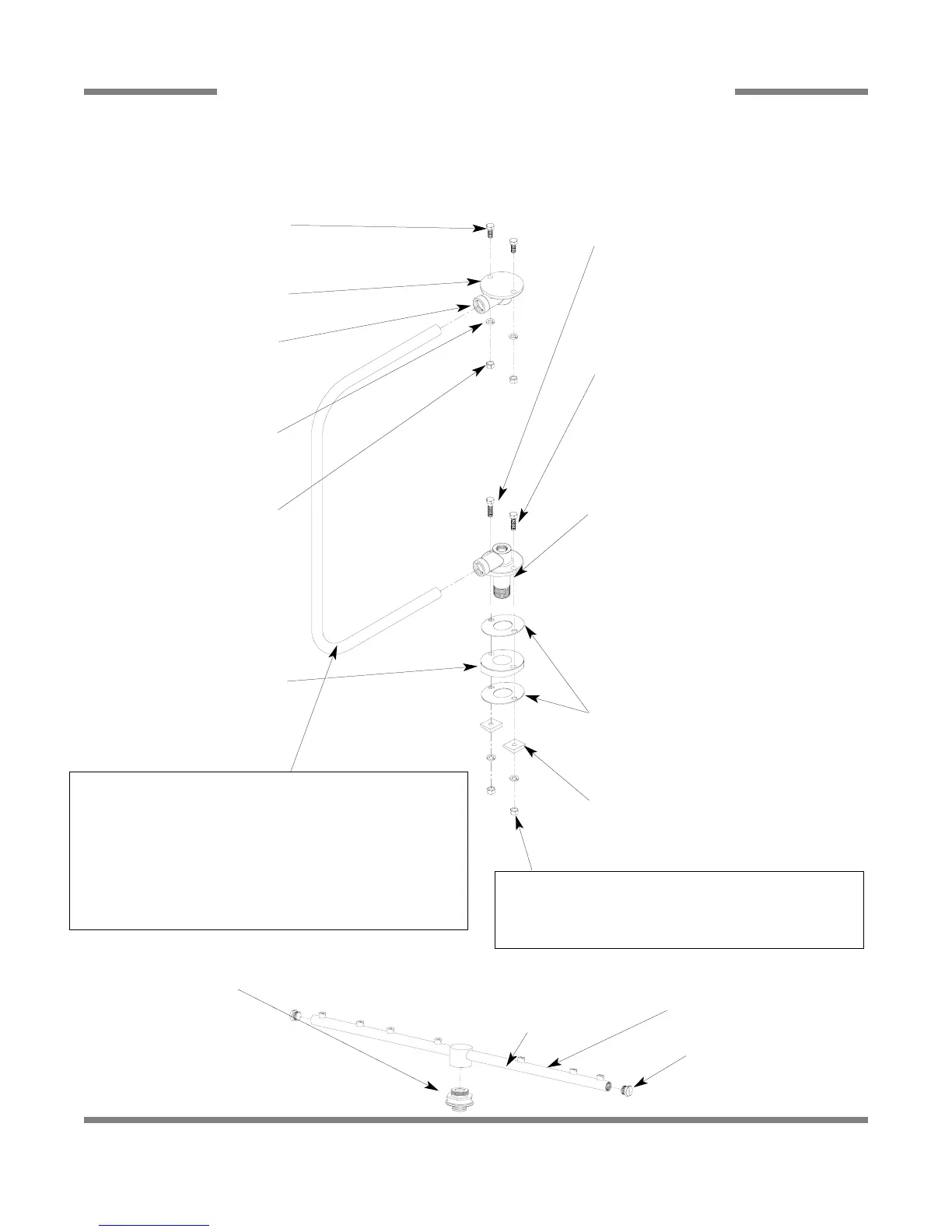

WASH MANIFOLD ASSEMBLY ES-2000 & ES-4000
63
Gasket, Wash Manifold
1 per ES-2000 Assembly
2 per ES-4000 Assembly
Ecolab No.: 96552864
Mfg. No.: 05700-111-35-03
Weldment, Lower Wash Manifold
(ES-2000 & ES-2000HH)
Ecolab No.: 96582705
Mfg. No.: 05700-031-34-65
Weldment, Lower Wash Manifold (ES-2000-CS)
Ecolab No.: N/A
Mfg. No.: 05700-002-20-84
Weldment, Lower Wash Manifold (ES-4000)
Ecolab No.: 96583596
Mfg. No.: 05700-031-46-00
Bolt, 3/8”-16 x 1-3/4” Long (ES-4000)
Ecolab No.: 88021076
Mfg. No.: 05306-011-36-94
Bolt, 3/8”-16 x 1-1/4” Long (ES-2000)
Ecolab No.: 88021050
Mfg. No.: 05305-276-10-00
Bolt, 3/8”-16 x 2-1/4” Long (ES-4000)
Ecolab No.: 88031109
Mfg. No.: 05306-011-95-12
Bolt, 3/8”-16 x 1-3/4” Long (ES-2000)
Ecolab No.: 88021076
Mfg. No.: 05306-011-36-94
3/8” Hex Nut, S/S
2 per assembly
Ecolab No.: 88422068
Mfg. No.: 05310-276-01-00
3/8” Lockwasher
2 per assembly
Ecolab No.: 88521109
Mfg. No.: 05311-276-01-00
3/8” Lockwasher
4 per assembly
Ecolab No.: 88521109
Mfg. No.: 05311-276-01-00
3/8” Hex Nut, S/S
4 per assembly
Ecolab No.: 88422068
Mfg. No.: 05310-276-01-00
Casting, Upper Wash Manifold
Ecolab No.: 96583620
Mfg. No.: 05700-031-34-82
Bolt, 3/8”-16 x 7/8”, Hex Head, S/S
2 per assembly
Ecolab No.: 96034111
Mfg. No.: 05306-011-36-95
Wedge, Manifold Casting
(Used on the ES-4000 units only)
Ecolab No.: 96583497
Mfg. No.: 09515-011-46-61
Washer, 3/8”, Bevel, Square
2 per assembly
Ecolab No.: 88500000
Mfg. No.: 05311-011-35-36
O-Ring
Ecolab No.: 87203154
Mfg. No.: 05330-111-35-15
Manifold Tube
Ecolab No.: 96550338
Mfg. No.: 05700-031-34-59
Manifold Tube
(ES-2000-CS Only)
Ecolab No.: N/A
Mfg. No.: 05700-002-08-32
Manifold Tube
(ES-2000HH Only)
Ecolab No.: N/A
Mfg. No.: 05700-002-92-55
Manifold Positioning Tube
Bracket
Ecolab No.: 96582986
Mfg. No.: 05700-011-34-63
Wash Arm End Cap
2 per Wash Arm
Ecolab No.: 96552542
Mfg. No.: 05700-011-35-92
Wash Arm Bearing
1 per Wash Arm
Ecolab No.: 96552567
Mfg. No.: 05700-021-35-97
Wash Arm O-Ring
1 per Wash Arm
Ecolab No.: 87200013
Mfg. No.: 05330-002-60-69
Wash Arm Weldment, ES-2000
2 per unit
Ecolab No.: 96582064
Mfg. No.: 05700-021-63-42
Wash Arm Weldment, ES-4000
4 per unit
Ecolab No.: 96581194
Mfg. No.: 05700-021-50-96
Complete Manifold Assembly
(1 for ES-2000 and 2 for ES-4000)
Kit, Upper Wash Manifold, with Hardware
ES-2000 & ES-2000HH
Ecolab No.: N/A
Mfg. No.: 06401-003-08-23
Kit, Lower Wash Manifold, with Hardware
ES-2000 & ES-2000HH Only
Ecolab No.: N/A
Mfg. No.: 06401-003-08-24
