Jackson ECOLAB ES-2000 - Vapor Vent Option Assembly (Revision A)

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

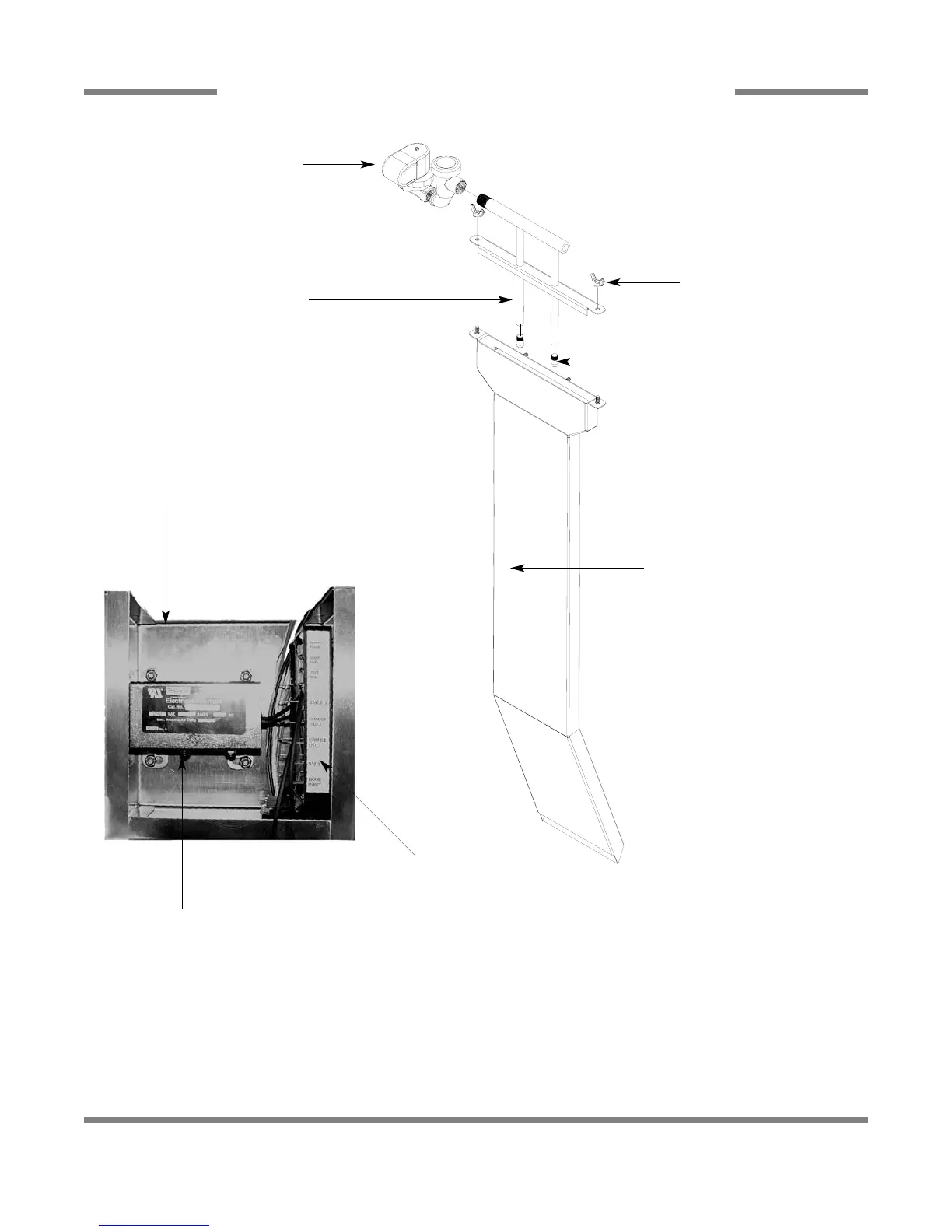

VAPOR VENT OPTION ASSEMBLY (REVISION A)
74
Nut, Wing, Nylon, 1/4”-20
2 per assembly
Ecolab No.: 96024005
Mfg. No.: 05310-994-01-00
Jet, Full, 1/8” HHSS6SQ
2 per assembly
Ecolab No.: 96034681
Mfg. No.: 04730-216-06-05
Vapor Vent Assembly
1 per assembly
Ecolab No.: 96034707
Mfg. No.: 05700-002-31-14
Vapor Vent Top Weldment
1 per assembly
Ecolab No.: 96034699
Mfg. No.: 05700-002-32-29
Vapor Vent Incoming Water Valve
1 per assembly
Ecolab No.: 96580683
Mfg. No.: 04810-100-12-18
Solenoid, Interlock, 115V
Ecolab No.: 96582087
Mfg. No.: 04810-002-55-65
Timer
Ecolab No.: N/A
Mfg. No.: 05945-002-34-29
Solenoid Interlock Box
Ecolab No.: N/A
Mfg. No.: 05700-002-66-16
Items not shown:
DESCRIPTION ECOLAB No. Mfg. No.
Relay, 3PDT 115 Volt (found in control box) 96021159 05945-111-72-51
Solenoid Interlock Box Cover N/A 05700-002-64-88
