Jackson ECOLAB ES-2000 - Cantilever Arm Assembly (ES-2000 & ES-4000 Single Bracket Mount)

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

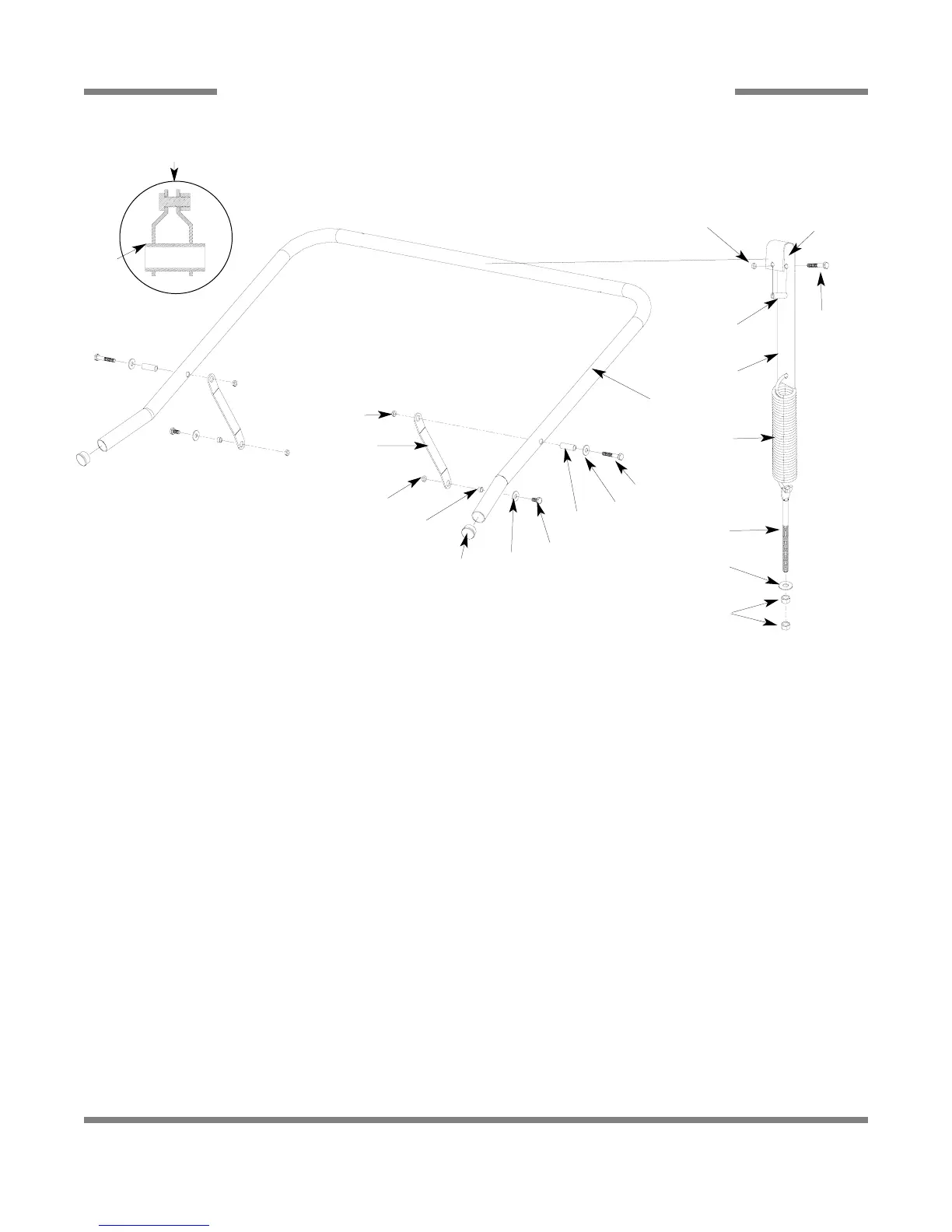

CANTILEVER ARM ASSEMBLY (SINGLE BRACKET MOUNT)
55
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 1 Hex Nut, 1/4”-20 with Nylon Insert 88429113 05310-374-01-00
2 1 Wear Strip, UHMW 96582945 05700-011-34-50
3 1 Sleeve 96584891 05700-000-01-53
4 1 Bolt, 1/4”-20 x 1-3/4”, S/S 88322052 05305-274-01-00
5 1 Link, Spring to Cantilever Arm 96582846 05700-021-34-49
6 1 Cantilever Spring 96552526 05340-111-35-22
7 1 Cantilever Eye Bolt, ES-2000 96582762 05305-956-05-00
7 1 Cantilever Eye Bolt, ES-4000 96558705 05700-011-45-99
8 1 Washer, Impeller 96581376 05311-176-02-00
9 2 Nut, 3/8”-16, Hex, S/S 88422068 05310-276-01-00
10 1 Cantilever Arm, ES-2000 96582879 05700-031-34-35
10 1 Cantilever Arm, ES-2000 27” N/A 05700-031-42-38
10 1 Cantilever Arm, ES-4000 96584297 05700-031-45-38
11 2 Hex Head Bolt, 1/4”-20 x 1-1/2”, S/S 88020433 05305-274-23-00
12 4 Washer, Flat, 1/4”, S/S 88530589 05311-174-01-00
13 2 Cantilever Arm Sleeve 96582770 05700-000-85-69
14 2 Hex Head Bolt, 1/4”-20 x 1/2”, S/S 88322078 05305-274-02-00
15 2 Endcap, Cantilever Arm 96022447 05340-011-35-00
16 2 Bolt Spacer 96582788 05700-000-29-40
17 2 Cantilever Arm Lever 96582754 05700-011-90-99
18 2 U-Bracket Assembly 96582838 N/A
19* 2 Retaining Ring 96582812 05340-011-33-62
11
10
12
13
14
12
15
16
23
17
23
18 U Bracket Assembly
19*
1
2
3
4
5
6
7
8
9
* Represents an item not shown.
Dual Strap Retrofit Kit
Ecolab No.: 96581002
