ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION
ES-2000HH CANTILEVER ARM/DOOR ASSEMBLIES (CONTINUED)
54
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 1 Cantilever Arm N/A 05700-031-92-44
2 2 Sleeve, Cantilever Arm 96582770 05700-000-85-69
3 2 Screw, 1/4"-20 x 1 1/2" Long Hex Head 88030069 05305-274-23-00
4 4 Washer, 1/4" ID S/S 88530589 05311-174-01-00
5 4 Locknut, 1/4"-20 S/S Low Profile with Nylon Insert 96026455 05310-374-02-00
6 4 Plug, Cantilever 96022447 05340-011-35-00
7 2 Connecting Link N/A 05700-021-92-45
8 2 Spring Pin, 1/4" x 1 1/8" Long 96039185 05315-407-06-00
9 2 Yoke Assembly 96586615 05700-000-75-77
10 2 Nut, 3/8"-16 S/S Hex Locking 96581384 05310-256-04-00
11 2 Rod, Spring Connecting N/A 05700-002-00-91
12 4 Plate, Spring Multiplier N/A 05700-002-00-88
13 4 Spring, Cantilever Door 96552526 05340-111-35-22
14 4 Bolt, Cantilever Hanger Eye 3/8"-16 96582762 05306-956-05-00
15 4 Washer, Impeller 96581376 05311-176-02-00
16 8 Nut, 3/8"-16 S/S Hex 88422068 05310-276-01-00
* 3 Door, Upper Assemblies N/A 05700-002-01-30
17 3 Door, Upper Weldment N/A 05700-002-29-59
18 6 Glide, Upper Door N/A 05700-002-00-83
* 1 Door, Lower, Right Assembly N/A 05700-002-01-33
19 1 Door, Lower, Right N/A 05700-031-76-80
20 2 Glide, Lower Door N/A 05700-002-23-64
21 1 Door Stop Magnet Assembly N/A 05700-002-25-08
* 1 Door Stop Magnet Weldment N/A 05700-002-01-27
* 1 Magnet 96020656 05930-111-69-25
* 2 End Cap 96024021 05700-011-60-92
22 6 Wear Button 96027743 05700-011-88-01
23 20 Screw, 1/4"-20 x 5/8" 88000013 05305-274-24-00
24 20 Locknut, 1/4"-20 S/S Hex with Nylon Insert 88429113 05310-374-01-00
25 2 Screw, 1/4"-20 x 1/2" Long Hex Head 88020433 05305-274-02-00
26 2 Spacer, PB Bolt 96582788 05700-000-29-40
27 2 Bracket, Door Connector N/A 05700-001-99-39
28 1 Handle, Front Door Weldment N/A 05700-002-00-90
* 1 Door, Lower, Front Assembly N/A 05700-002-01-31
29 1 Door, Lower, Front N/A 05700-031-76-77
30 2 Glide, Lower Door N/A 05700-002-23-64
31 6 Door Stop Weldment N/A 05700-002-29-60
32 1 Door Stop N/A 05700-002-00-84
* 1 Door, Lower, Left Assembly N/A 05700-002-01-32
33 1 Door, Lower, Left N/A 05700-031-76-79
34 2 Glide, Lower Door N/A 05700-002-23-64
35* 2 Cantilever Arm Support Bracket 96581244 09515-003-15-64
36* 6 Wear Button 96027743 05700-011-88-01

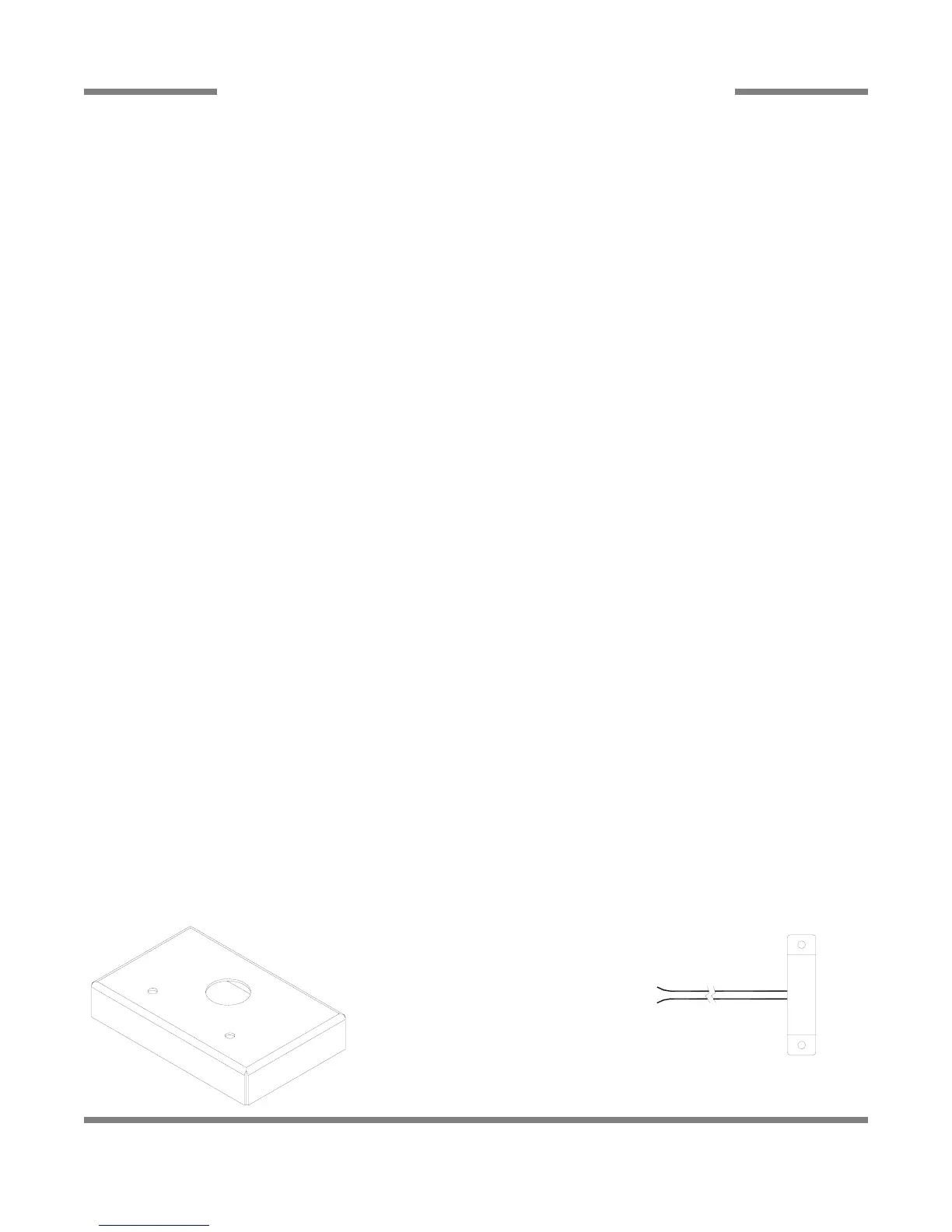

Magnetic Reed Switch
Ecolab No.: 96024203
Mfg. No.: 05930-011-47-50
Switch Box, Door Weldment
Ecolab No.: N/A
Mfg. No.: 05700-002-12-45
To Next Page
