ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

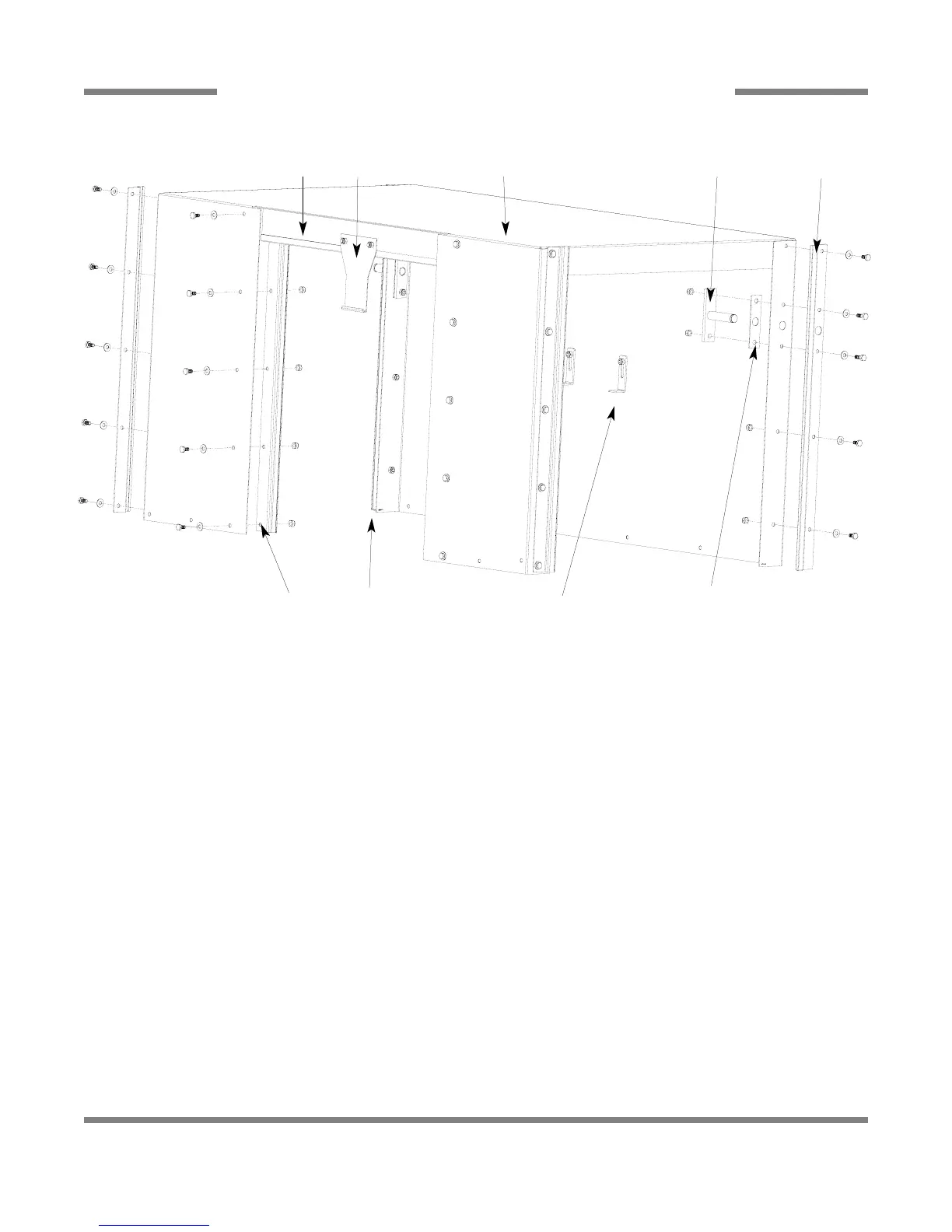

HOOD ASSEMBLY ES-4000
50
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 1 Hood Weldment, ES-4000 Old Style 96550389 05700-041-45-37
1 1 Hood Weldment, ES-4000 New Style N/A 05700-002-60-60
1 1 Hood Weldment (ES-4000XSP) New Style N/A 05700-002-60-62
2 4 Door Guide, ES-4000 96583570 05700-021-44-94
3 1 Door Guide, Left Rear 96550264 05700-021-33-16
4 1 Door Guide, Right Rear 96550272 05700-021-33-15
5 2 Arm Support Weldment 96582804 05700-011-43-52
6 2 Arm Support Weldment Gasket 96553151 05700-111-36-01
7* 1 Front Door Stop (Not Shown) N/A 05700-021-60-27
8* 1 Stiffener, Hood Support (Not Shown) 96585609 05700-002-47-39
9 2 Manifold L-Bracket 96582986 05700-011-34-63
10 1 Door Catch 96580998 05700-011-46-50
11 1 Hood Stiffener 96585609 05700-002-08-24
12 1 Door Guide, Left Rear, New Style 96030457 05700-021-84-71
13 1 Door Guide, Right Rear, New Style 96030432 05700-021-84-70
1
2
3
6
4
5
11
10
9
OLD STYLE: If your unit uses items 5 and 6, it is the old style hood weldment. Items 3 thru 6 are used only with the old style Hood
Weldment. The hood will have the proper mounting holes in the rear door guides and in the hood itself.
NEW STYLE: If your unit does not use items 5 and 6, then it is the new style hood weldment. Items 12 thru 15 are used only with
the new style Hood Weldment. The hood will have two places on the back of the hood to attach the cantilever support bracket
assembly.
