ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 7: ELECTRICAL SCHEMATICS

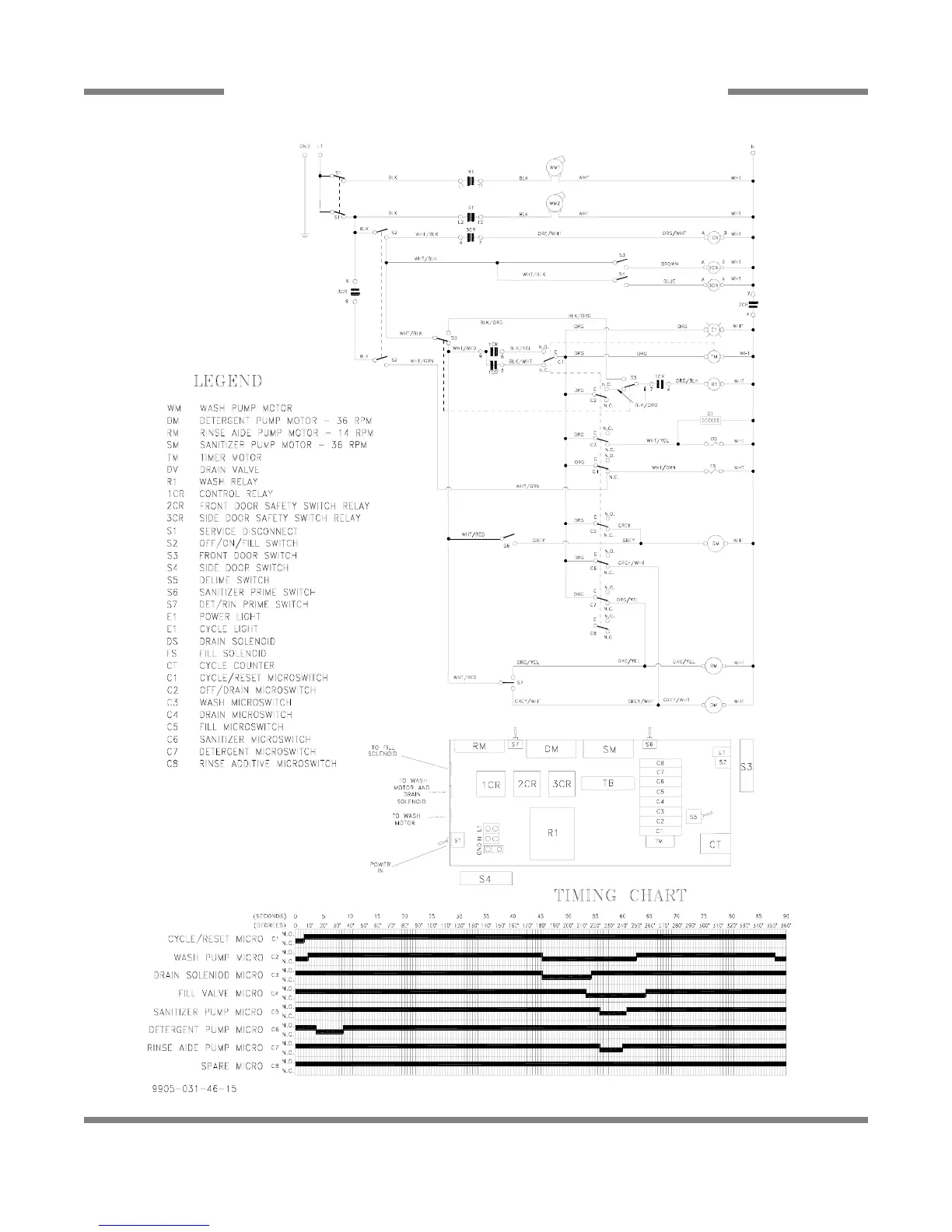

ES-4000 (115 VOLT, 60HZ, SINGLE PHASE)
