Jackson ECOLAB ES-2000 - Tub & Frame Assemblies Es-2000-Cs

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

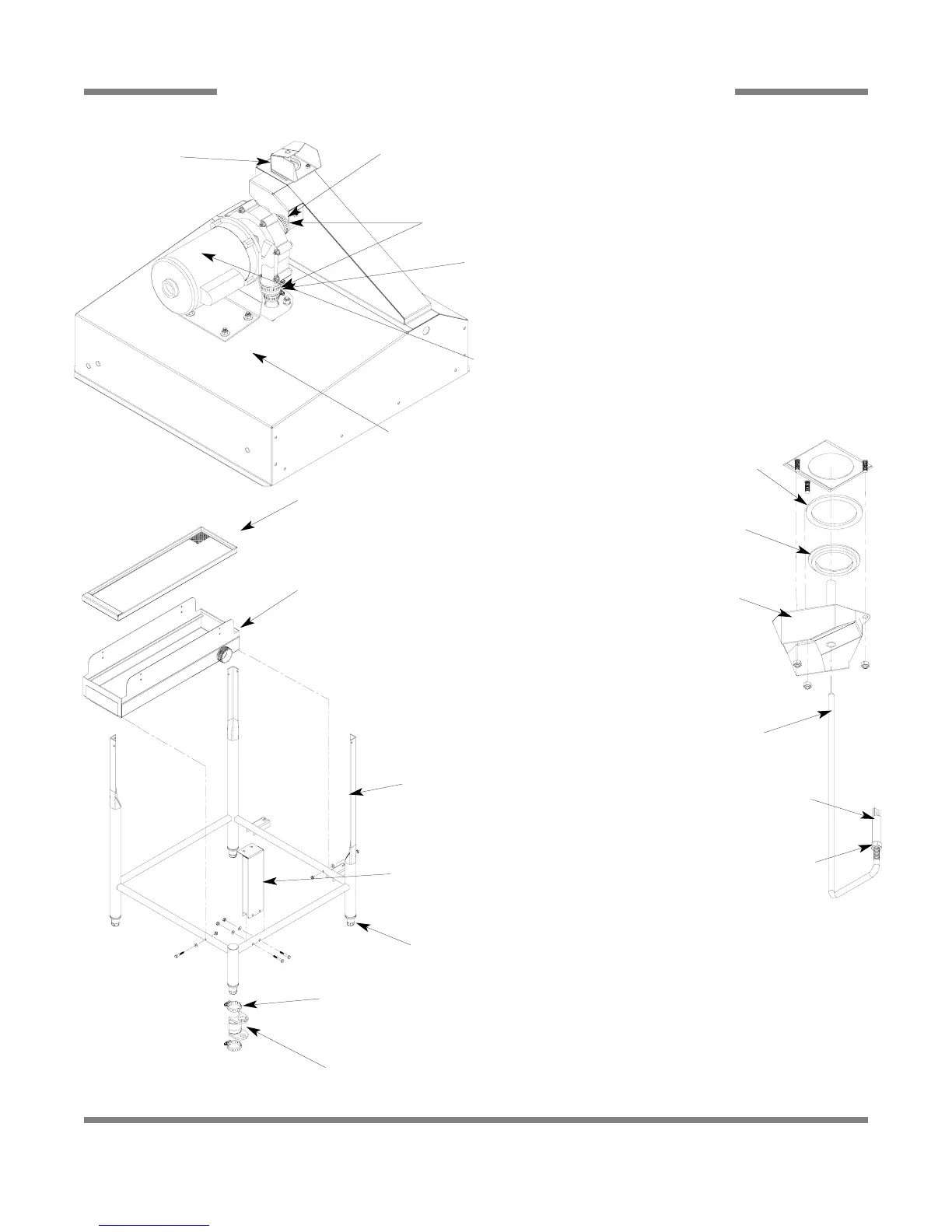

TUB & FRAME ASSEMBLIES ES-2000-CS
60
Strainer, Accumulator Weldment
Ecolab No.: 96028725
Mfg. No.: 05700-002-20-45
Accumulator Weldment
Ecolab No.: 96028717
Mfg. No.: 05700-002-19-05
Accumulator Lift Kit
Ecolab No.: 96582202
Mfg. No.: N/A
Spillway Weldment
Ecolab No.: 96583000
Mfg. No.: 05700-031-37-86
Drain Link Assembly
Ecolab No.: 96028683
Mfg. No.: 05700-002-38-23
Drain Seat Insert
Ecolab No.: 96582929
Mfg. No.: 05700-021-34-38
Drain Seat Gasket
Ecolab No.: 96582903
Mfg. No.: 05700-111-34-52
Frame Weldment
Ecolab No.: 96028949
Mfg. No.: 05700-002-29-15
Brace, Frame Weldment
Ecolab No.: 96582091
Mfg. No.: 05700-002-29-03
Drain Solenoid
Ecolab No.: 83999078
Mfg. No.: 04810-200-11-00
Plate, Lower Control Box
Front Weldment
Ecolab No.: 96582179
Mfg. No.: 05700-002-86-92
Bullet Feet
Ecolab No.: 96552666
Mfg. No.: 05340-108-01-03
* Holder, Chemical Bottle
Ecolab No.: 96580535
Mfg. No.: 05700-002-75-63
Clamp, 1 5/16” to 2 1/4”
Ecolab No.: 87301362
Mfg. No.: 04730-719-01-37
Casting, Bottle Holder
Ecolab No.: 96580527
Mfg. No.: 09515-031-59-73
Tub Weldment
Ecolab No.: 96027941
Mfg. No.: 05700-002-15-67
Tube, Suction Connector
Ecolab No.: 96028246
Mfg. No.: 05700-002-20-79
See Detail “A”
Clamp, 5/16” to 2 1/4”
Ecolab No.: 87301362
Mfg. No.: 04730-719-01-37
* Fitting, Bulk Head to 1/2"
Hose Barb, S/S
Ecolab No.: 92630000
Mfg. No.: 04730-002-69-80
Tube, Discharge Connector
Ecolab No.: 96028253
Mfg. No.: 05700-011-70-34
Refer to Motor & Pump
Assembly Page
*Thermometer, Screw-In Type
Ecolab No.: 89009138
Mfg. No.: 06685-111-35-30
DETAIL “A”
Nut, 5/16”-18 Hex
Ecolab No.: 88422043
Mfg. No.: 05310-275-01-00
Drain Link Connector
Ecolab No.: 96028261
Mfg. No.: 05700-002-38-10
* Represents an item not shown.
*Fitting, Bulkhead
Thermometer
Ecolab No.: 96582178
Mfg. No.: 05700-002-86-83
