Jackson ECOLAB ES-2000 - Tub Assembly (ES-4000) (Left Front View)

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

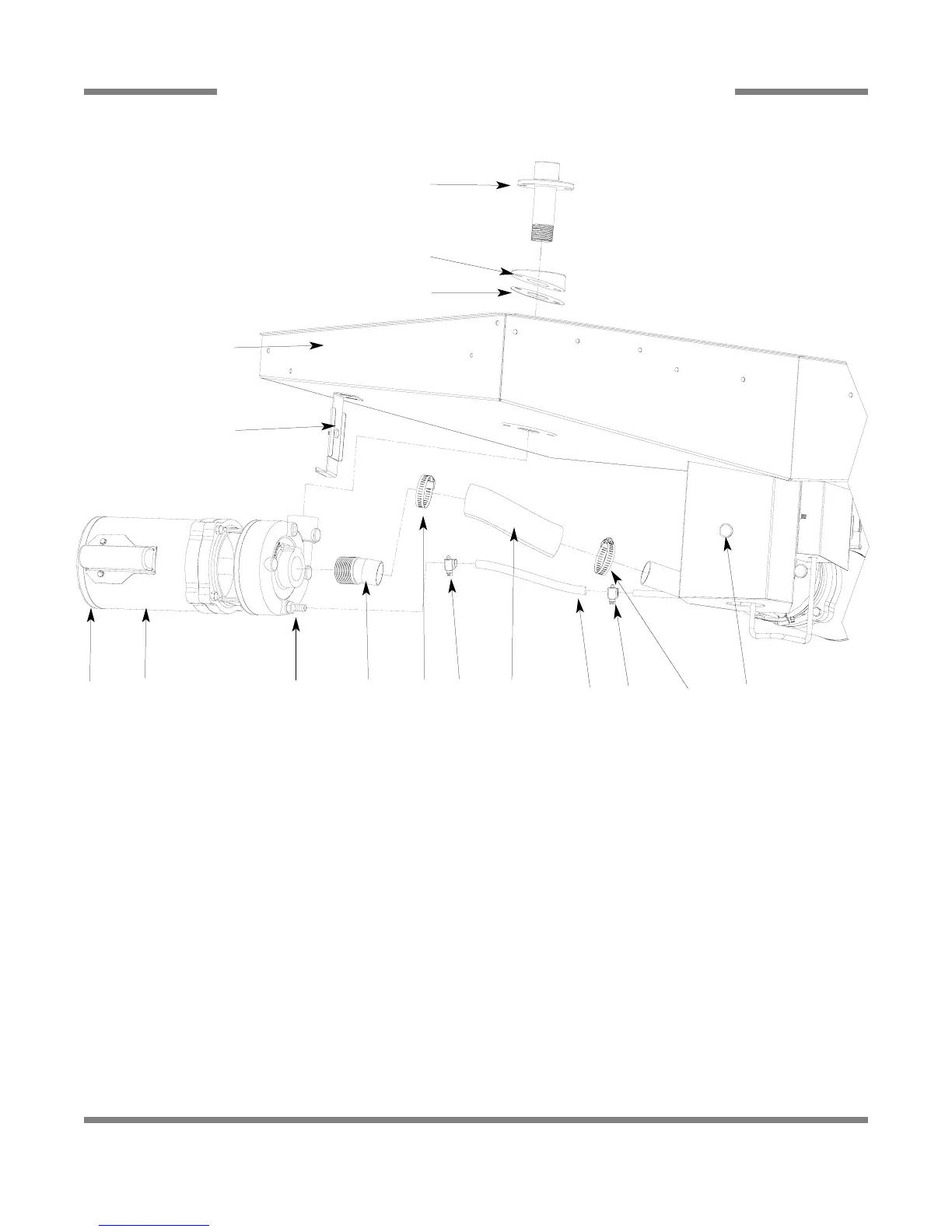

TUB ASSEMBLY (LEFT FRONT VIEW) ES-4000
57
* Represents an item not shown.
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 2 Lower Wash Manifold Weldment 96583596 05700-031-46-00
2 2 Casting, Manifold Wedge 96583497 09515-011-46-61
3 4 Manifold Gasket 96552864 05700-111-35-03
4 1 Wash Tub Weldment 96583331 05700-041-45-24
5 2 Pump Support Bracket Assembly 96042775 05700-021-66-48
6 2 Wash Motor 83710418 06105-121-35-18
7 2 Fitting, 3/8” Barbed x 1/8” Male NPT 85196004 04730-111-35-02
8 2 Pump Inlet Nipple 96581202 05700-021-46-84
9 4 Hose Clamp, Regular, 1-5/16” - 2-1/4” 87301362 04730-719-01-37
10 4 Hose Clamp, Mini, 7/16” - 25/32” 87301131 04730-011-36-05
11 2 Hose, 3/8” ID x 8” Long 96550439 05700-111-33-53
12 2 Hose, 1-1/2” ID x 8” Long 96583018 05700-111-33-52
13 2 Hose Clamp, Regular, 5-5/8” - 6” 87301503 04730-011-34-90
14* 1 Thermometer, Screw-In Type 89009138 06685-111-35-30
1
2
3
4
5
13
6
7
8
9
10 11
12 10
9 14*
