Jackson ECOLAB ES-2000 - Solenoid Mounting Plate Assembly

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

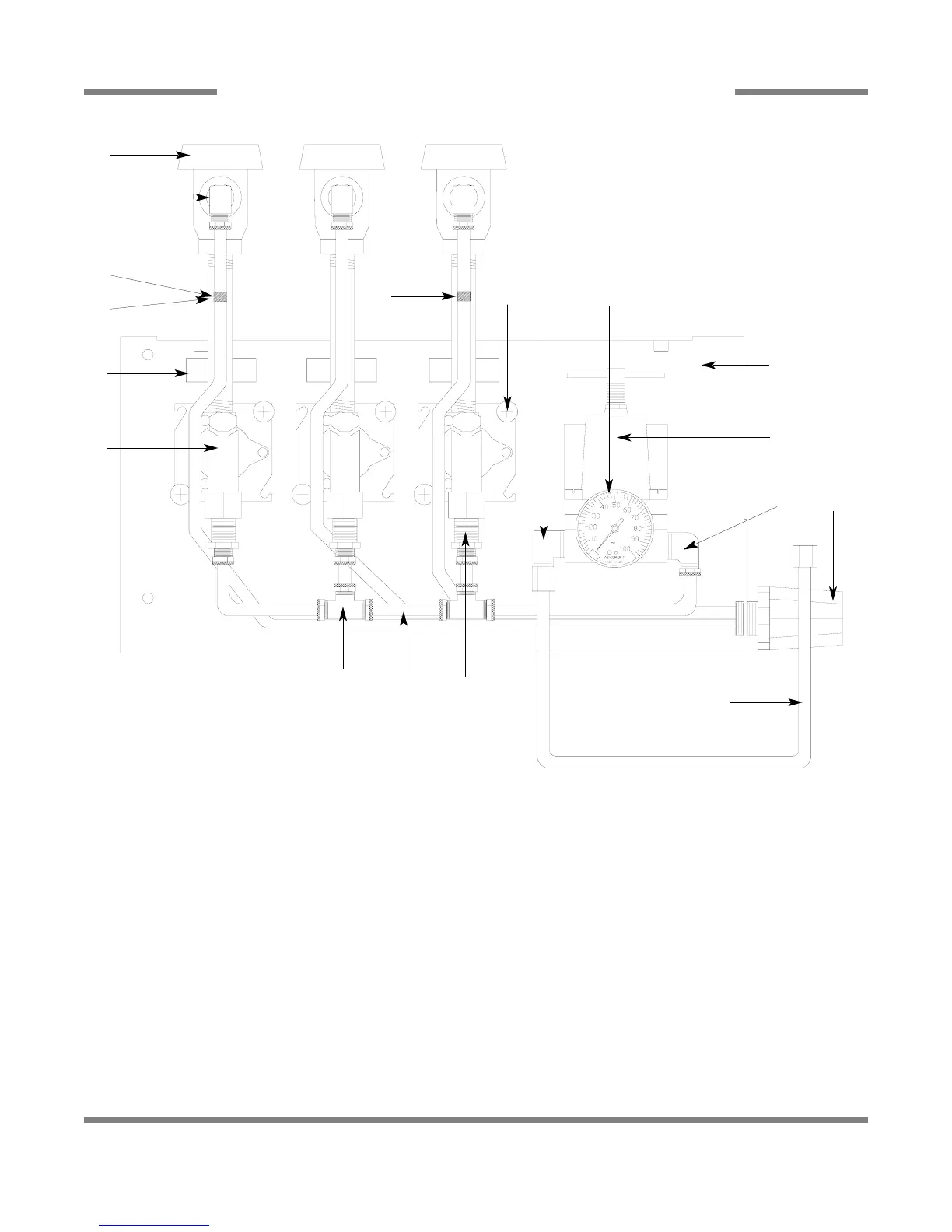

XSP SOLENOID MOUNTING PLATE ASSEMBLY
78
1
2, 3
4
5
6
7
8
8
9
10
11
12
13
14
15
17
16
18
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 1 XSP Controller Weldment 92387604 05700-031-76-15
2 8 Screw, 10-32 x 3/8" Long 88120878 05305-173-12-00
3 6 Washer, 10-24 External Tooth 96026976 05311-273-02-00
4 3 Y-Strainer, S-45 Valve 96582061 04730-111-48-73
5 1 Decal, Detergent-Flush-Rinse 96034806 09905-011-64-95
6 3 Nipple, 1/4" NPT x 6" Long 85110518 04730-011-79-29
7 3 Vacuum Breaker, 1/4" NPT 85242501 04810-011-51-62
8 4 Elbow, 1/4" NPT x 1/4” Paraflex 85533354 04730-111-65-43
9 1 Regulator, 1/4" NPT 85221018 04820-011-69-05
10 1 Gauge, 0-100 PSI 85390417 06685-011-48-32
11 1 Elbow, 1/4" Tube x 1/4 MNPT 86075108 04730-011-48-76
12 1 Tube, Dispenser Feed 96034822 05700-031-51-65
13 3 Fitting, 1/4" Paraflex x 1/4" MNPT 85513059 04730-011-48-76
14 18 Feet, 1/4" Paraflex Tubing 85019099 04720-111-51-70
15 2 Tee, 1/4" NPT, Paraflex 85543049 04730-111-65-42
16 1 Tape, Blue, 1-1/2" 96560636 08135-011-89-03
17 1 Tape, Red, 1-1/2" 96560727 08135-011-89-02
18 1 Fitting, Straight, 1/2" NPT 83311506 05975-011-45-13
