Jackson ECOLAB ES-2000 - Incoming Plumbing Assembly (ES-2000 & ES-4000)

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

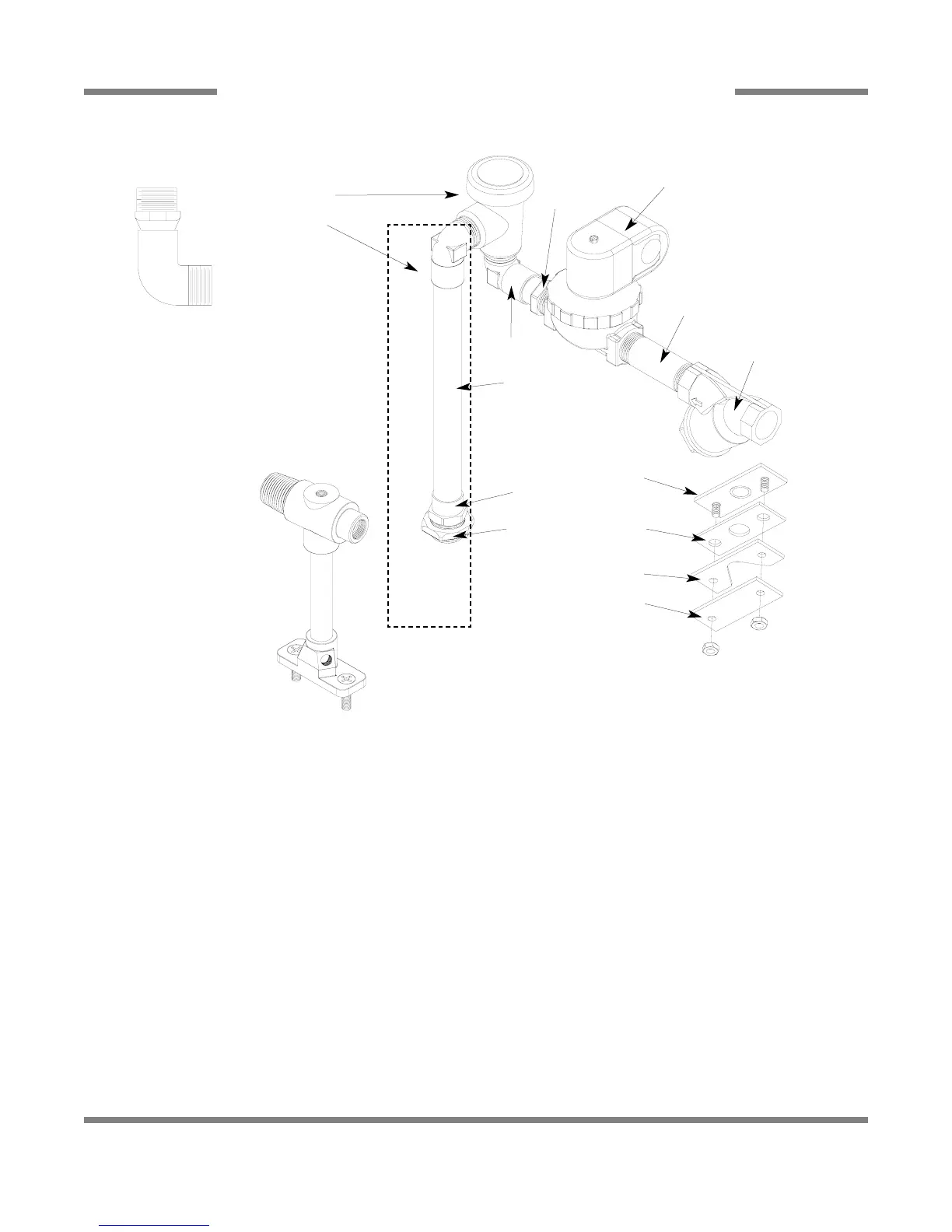

INCOMING PLUMBING ASSEMBLY ES-2000 & ES-4000 SERIES
61
1
2
3
4**
6
7
8
9
For XSP and XSP-PH
units, replace item 8
with items 12 & 13.
4** NOTE: Depending on how
old your ES-4000 unit may be,
the soldered piece above may
be turned in this configuration.
Overall, this will make the
plumbing shorter in length and
connection point shorter in
height.
4
5
For the ES-2000HHV model,
the components inside the box
to the right are replaced with
this rinse injector and may be
ordered using the following
numbers :
Ecolab No.: N/A
Mfg. No.: 005700-002-95-09
For the ES-2000HHV model, the brass nut inside
the box to the left is replaced with the above parts
which connect to the bottom of the rinse injector.
* Represents an item not shown.
Bottom of
Rinse Injector
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 1 3/4” NPT Bulkhead Locknut 86545050 04730-208-04-00
2 1 3/4” Male NPT x Female Slip Adapter 86185030 04730-401-11-01
3 1 3/4” x 6” Copper Tube Buy Locally 05700-011-37-55
3 1 3/4” x 9” Copper Tube (ES-2000V) Buy Locally 05700-000-75-61
4 2 3/4” NPT x 90° Elbow 86055092 04730-406-42-01
5 1 3/4” Vacuum Breaker 85242626 04820-002-53-77
6 1 3/4” Male NPT x Male Slip Adapter 86185048 04730-401-10-01
7 1 3/4” Solenoid Valve 85260511 04810-100-53-00
8 1 3/4” NPT x 3” Nipple 85141638 04730-011-38-29
9 1 3/4” NPT Y-Strainer 85300325 04730-717-02-06
10* 1 Bracket, Incoming Plumbing Support 96582937 05700-021-34-02
11* 1 Diverter End Cap, ES-4000 96582172 05700-021-45-32
12* 1 Tee, 3/4” x 3/4” x 1/4” 86100120 04730-211-04-00
13* 2 Close Nipple, 3/4” 85141604 04730-207-34-00
14 1 Gasket 96020482 05330-111-42-81
15 1 Deflector Plate N/A 05700-002-62-49
16 1 Rinse Plumbing Plate N/A 05700-011-82-86
14
15
16
