Jackson ECOLAB ES-2000 - Vapor Vent Option Assembly (Revision B)

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

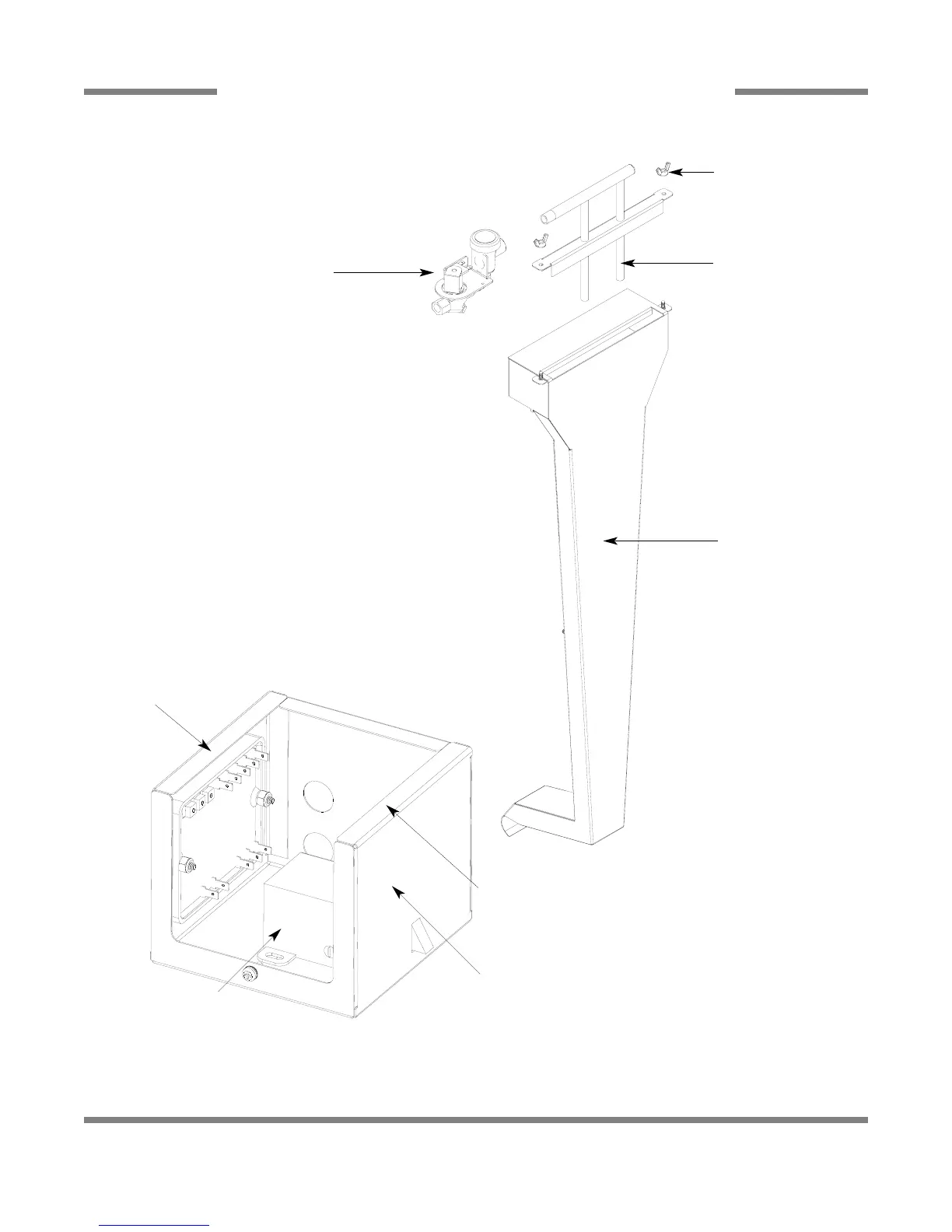

VAPOR VENT OPTION ASSEMBLY (REVISION B)
75
Nut, Wing, Nylon, 1/4”-20
2 per assembly
Ecolab No.: 96024005
Mfg. No.: 05310-994-01-00
Vapor Vent (Plastic Vent Only)
1 per assembly
Ecolab No.: 96629321
Vapor Vent (Metal Vent Only)
1 per assembly
Ecolab No.: 96582090
Bracket, Stand Off
1 per assembly
Ecolab No.: 96627216
Mfg. No.: 05700-002-72-16
Vapor Vent Complete Assembly, 115V
1 per assembly
Ecolab No.: 96627582
Mfg. No.: 05700-002-75-82
Vapor Vent Top Weldment
1 per assembly
Ecolab No.: 96034699
Mfg. No.: 05700-002-75-46
Jet, Full 1/8”, HHSS6HQ
2 per assembly
Ecolab No.: 96034681
Mfg. No.: 04730-216-06-05
Gasket, Vapor Vent
1 per assembly
Ecolab No.: 96627506
Mfg. No.: 5330-002-75-06
Vapor Vent Incoming Plumbing Assembly
1 per assembly
Ecolab No.: 96627752
Mfg. No.: 05700-002-77-52
Solenoid Valve, 3/8”, 115V
1 per assembly
Ecolab No.: N/A
Mfg. No.: 04730-002-75-48
Nipple, 3/8” Close NPT
1 per assembly
Ecolab No.: 85140804
Mfg. No.: 04730-002-18-00
Elbow, 3/8” 90° Street
1 per assembly
Ecolab No.: 86078052
Mfg. No.: 04730-002-15-36
Vacuum Breaker, 3/8”
1 per assembly
Ecolab No.: 85242527
Mfg. No.: 04820-002-75-73
Solenoid, Interlock, 115V
Ecolab No.: 96582087
Mfg. No.: 04810-002-55-65
Solenoid Interlock Box
Ecolab No.: N/A
Mfg. No.: 05700-002-66-16
Solenoid Interlock Box Assembly Kit
Ecolab No.: N/A
Mfg. No.: 06401-002-66-17
Solenoid Interlock Box Cover Kit
Not Shown
Ecolab No.: N/A
Mfg. No.: 06401-003-07-34
Solenoid Interlock Timer
Ecolab No.: N/A
Mfg. No.: 05945-002-34-29
