Jackson ECOLAB ES-2000 - Tub Assembly (ES-4000) (Right Front View)

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

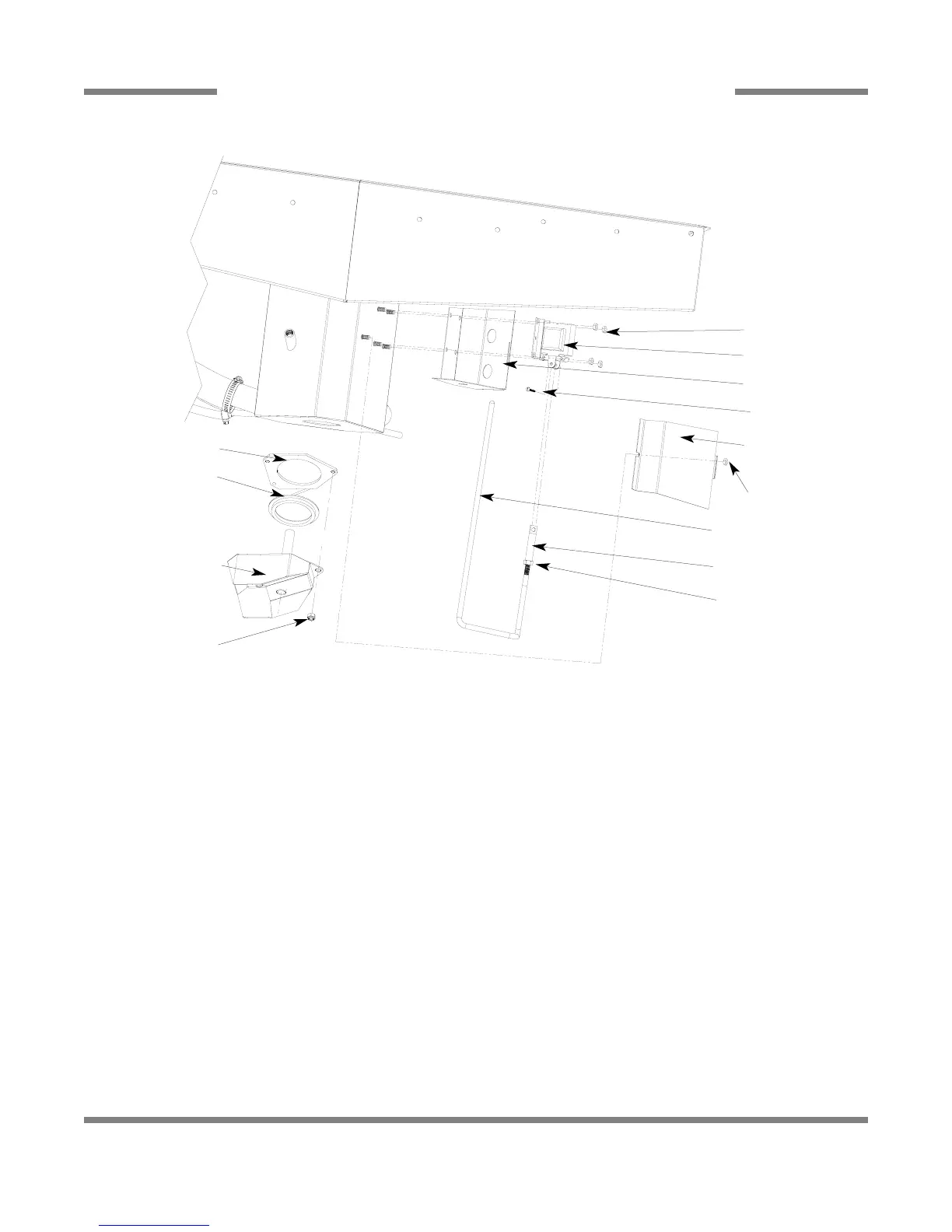

TUB ASSEMBLY (RIGHT FRONT VIEW) ES-4000
58
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 7 Locknut, 10-24 S/S Hex with Nylon Insert 88429063 05310-373-01-00
2 1 Drain Solenoid 83999078 04810-200-11-00
3 1 Drain Solenoid Box 96581954 05700-021-37-53
4 1 Drain Solenoid Box Cover 96580634 05700-031-33-27
5 1 Locknut, 1/4”-20 S/S Hex with Nylon Insert 88429113 05310-374-01-00
* 1 Drain Link Assembly N/A 05700-002-38-21
6 1 Drain Link 96580188 05700-031-46-52
7 1 Drain Link Connector 96028261 05700-002-38-10
8 1 Hex Nut, 5/16”-18 88422043 05310-275-01-00
9 1 Spillway Gasket 96582903 05700-111-34-52
10 1 Drain Seat Insert (Stainless Ring) 96582929 05700-021-34-38
11 1 Spillway Weldment 96583000 05700-031-37-86
12 1 Hair Pin, 1/2” to 3/4” 96035241 05315-002-15-39
2
1
4
5
9
10
11
1
6
7
8
12
3
