Jackson ECOLAB ES-2000 - Control Box Assembly

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

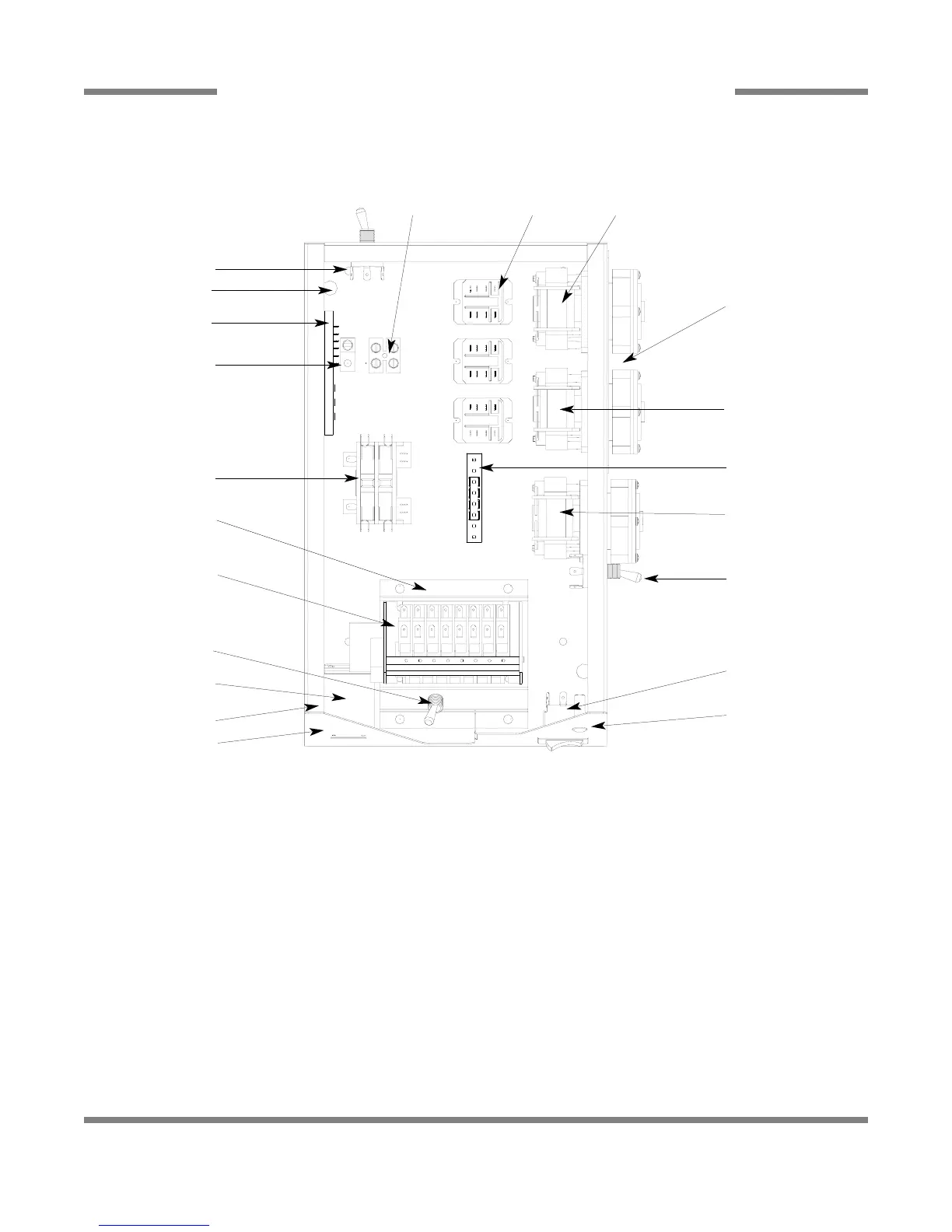

CONTROL BOX ASSEMBLY
45
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 1 Contactor, Motor 83008250 05945-109-05-69
2 1 Ground Lug 83118000 05940-200-76-00
3 7 Locknut, 10-24, S/S, Hex, with Nylon Insert 88429063 05310-373-01-00
4 1 Switch, ES-2000 83020701 05930-111-35-26
4 1 Switch, ES-4000 96582096 05930-011-48-21
5 1 Cycle Counter, 115V 83650044 05990-111-35-38
6 4 Screw, 4-40 x 1/4” Phillips Pan Head 96023832 05305-002-32-38
7 1 Power Switch, 2 Pole, 115V 83020461 05930-111-38-79
8 1 Light, Red, 115V 83630392 05945-504-07-18
9 1 Terminal Block 96025119 05940-500-09-61
2, 3
25
26
21
4
5, 6
7
8
9, 12
10*, 12
11, 12
1, 3
3, 16
17
22
13 (not shown)
23
24
14
15, 18
19
20
20
Kit, Replacement Electrical Box with Decal
Ecolab No.: N/A
Mfg. No.: 06401-031-36-82
Microswitch, Replacement
Ecolab No.: 96584990
Mfg. No.: 05940-011-48-27
