ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

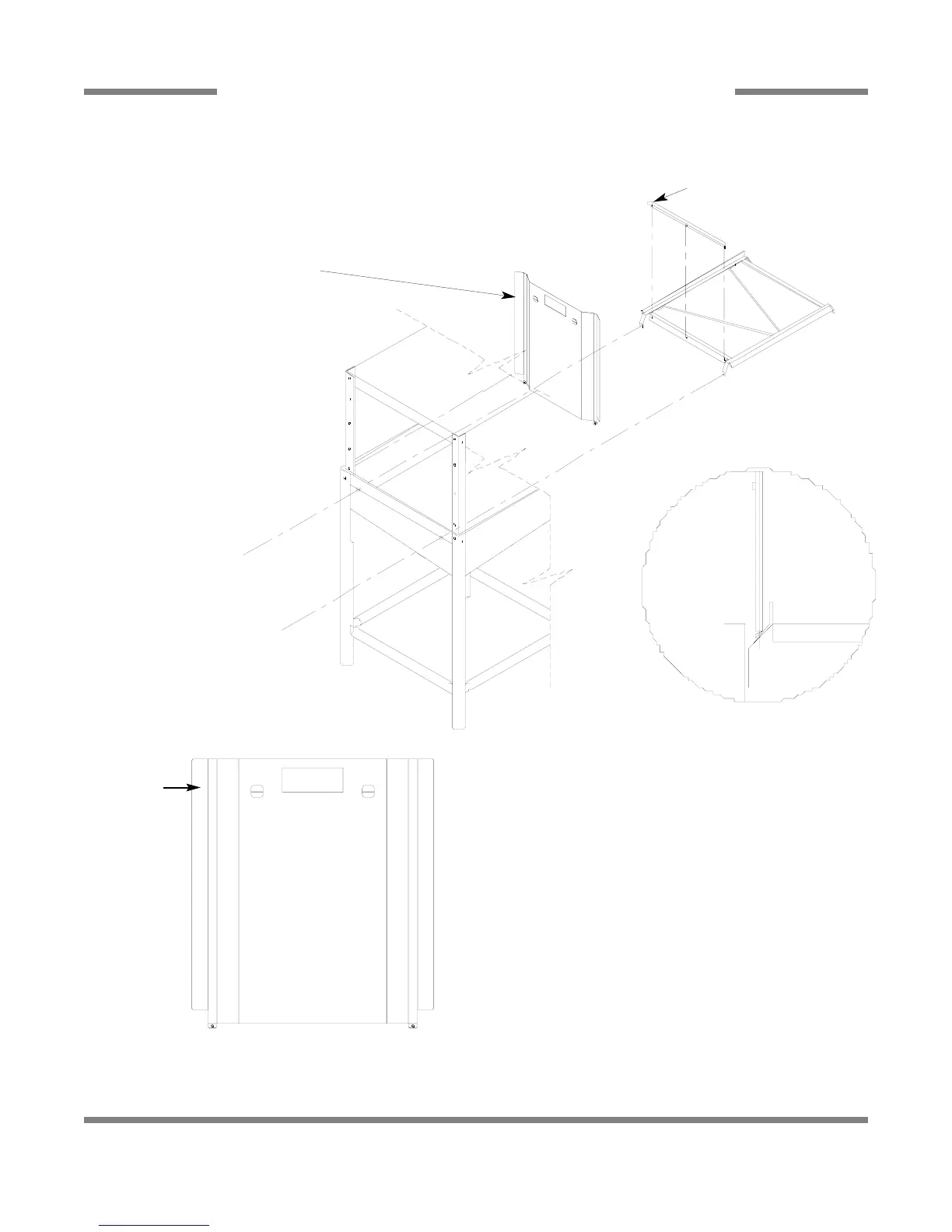

FALSE PANEL INSTALLATION
69
1. Loosen the rack assembly from the unit.
2. False panel will mount to the rack; inside the dishmachine.
3. Position panel in unit on side to be closed.
4. Hold panel against side of dishmachine and push up.
5. Panel will clip inside the unit under the edge of the hood.
6. Holes in false panel willl ine up with rack assembly holes.
7. Re-install screws for rack assembly which will secure false
panel to unit.
8. Re-assemble the rack track in an “L” shape for a corner opera-
tion.
Bottom of side panel.
Insert this
side first.
False panel positioned in unit.
Rack rail removed & reposi-
tioned for a corner operation.
False Panel Weldment
Ecolab No.: 96580394
Mfg. No.: 005700-002-51-66
False Panel Kit with Hardware
Ecolab No.: N/A
Mfg. No.: 005700-003-12-93
