2.2 SystemComponentSpecicationsandDimensions
Table 1
Specifications (USA and Canada)
Power Supply 120 VAC; 60 Hz; 3 A
Contact Rating High voltage - 25 A; 3HP @ 240 VAC
1½ HP @120 VAC
1500 Watts Incandescent
Low Voltage - Class Two, 1 A @ 24 VAC
Service Switch All Circuits (located at Power Center in Service Mode)
Specifications (European)
Power Supply 230-240VAC; 50/60 Hz; 3 A
Contact Rating High voltage - 25 A; 3HP @ 240 VAC
Low Voltage - Class Two, 1 A @ 24 VAC
Service Switch All Circuits (located at Power Center in Service Mode)

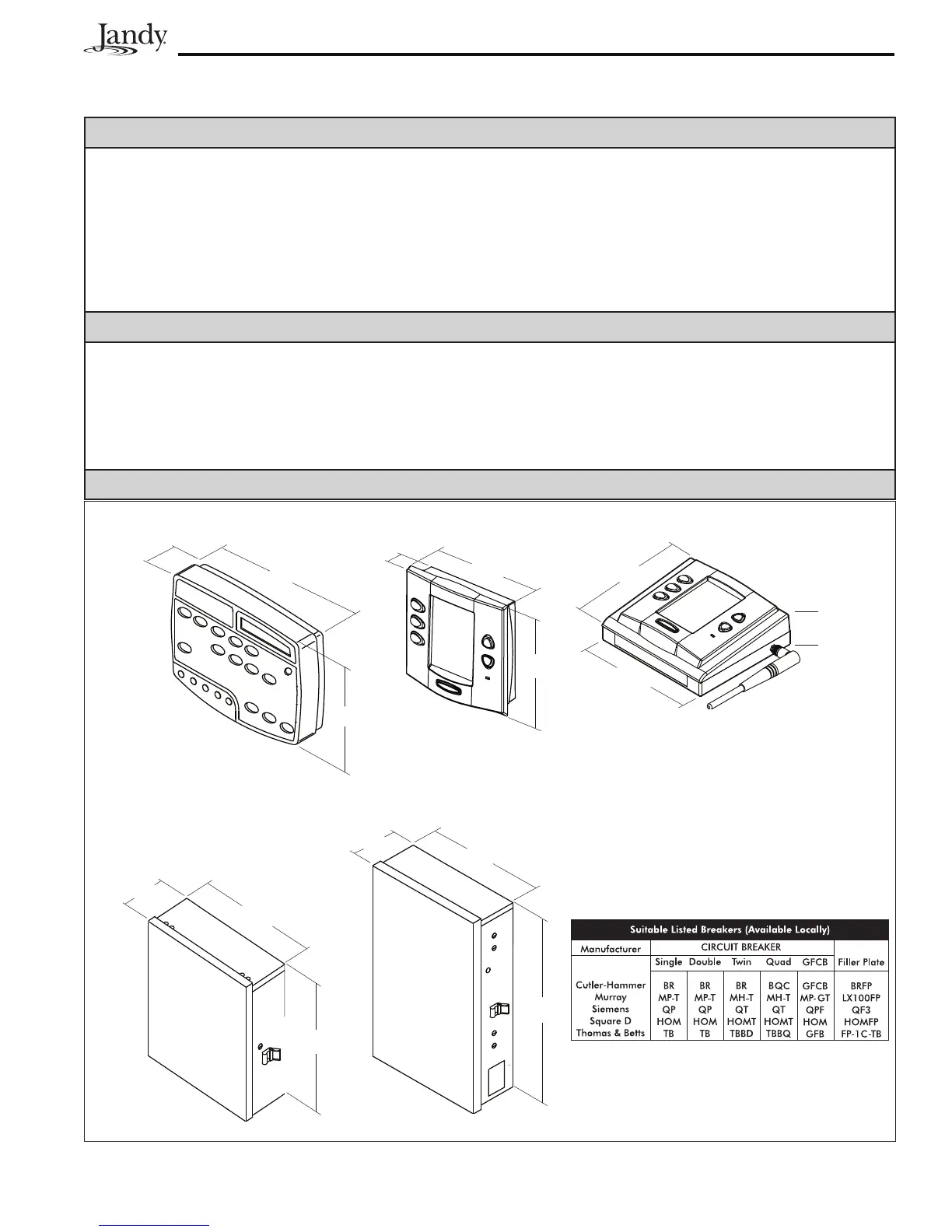

Dimensions
8"
5"
1¼"
5½"
1½"
5"
4½"
4½"
1¼"
All Button
Control Panel
OneTouch
Control Panel
Wireless Control
Panel
Standard
Power Center
5"
14½"
13¾"
Sub-Panel
Power Center
20"
14½"
5"

Jandy AquaLink RS Specifications

General

Communication Protocol	RS-485
Enclosure Rating	NEMA 3R
Compatibility	Jandy pool and spa equipment
Communication	Wired
Weight	5 lbs (2.27 kg)
Humidity Range	5% to 95% non-condensing
