4.2 AllButtonResetandDisplayMessages
4.2.1 Reviewing
MENU > REVIEW > SELECT ITEM TO REVIEW
To review equipment, press the MENU button, then
use the FORWARD arrow key to scroll to the REVIEW
menu. Press ENTER, use the arrow keys to scroll to the
item you wish to review, and press ENTER again.
4.2.2 Canceling Items
CANCEL > SELECT ITEM TO CANCEL
If you make a mistake in programming or you want
to change, for example, the ON/OFF times for a spe-
cicdevice,youcancancelprogramsforthatpieceof
equipment. For example, to canceladimmer, press
the CANCEL button; use the arrow keys to advance
to DIMMERS and press ENTER. The AquaLink RS
display will prompt you to select an Aux. Press the
button of the auxiliary for which you want to cancel the
dimmer.
IfyouwanttocancelaJVAassignment,rstpressthe
CANCEL button. Use the arrow keys to scroll to JVA
ASSIGNS and press ENTER. The AquaLink RS display
will read CLEANER JVA. Use the arrow keys to toggle
between JVAs to cancel. When the JVA assignment
that you want to cancel is displayed, press ENTER.
The AquaLink RS display will read PRESS ENTER
TO CANCEL JVA ASSIGNMENT, OR CANCEL TO
ABORT. Press ENTER to cancel the JVA assignment, or
press CANCEL to abort.
4.2.3 ResettingtheSystem
MENU > SYSTEM SETUP > CLEAR MEMORY
To remove all labeling, programming, assignments, and
temperature settings, press the MENU button, use the
arrow keys to scroll to SYSTEM SETUP and press EN-
TER. Scroll to CLEAR MEMORY and press ENTER.
4.3 OneTouch Programming
4.3.1. Basic Programming
To set a particular piece of equipment to turn
on and off at predetermined times, highlight
MENU/HELP and press SELECT (see Figure 35).
Highlight PROGRAM and press SELECT. Use the
UP or DOWN buttons to highlight the equipment
(for example, Filter Pump) then press SELECT.
Follow the on-screen prompts. Use the UP or
DOWN buttons to pick each number, starting with
ON hours, press SELECT to enter and move on
to the next item to change, including picking what
day(s) the program will run. If you make a mistake,
use the BACK button to return to a number. If the
program is already entered, highlight CHANGE
PROGRAM and step through to the entry that
should be corrected.
NOTE The following items can be found either in the
MENU/HELP or in a Sub Menu under SYSTEM
SETUP.
4.3.2 Set the Time Menu
MENU/HELP > SET TIME
To set the time, highlight the MENU/HELP and
press SELECT. Highlight SET TIME and press
SELECT. Use the UP or DOWN button to set the
values. Press SELECT to continue.
4.3.3 Set the Temperature
1. Pool/Spa Combination
MENU/HELP > SET TEMP > POOL or SPA > SET TEMP VALUE
Highlight MENU/HELP and press SELECT.
Highlight SET TEMP and press SELECT. Use the
UP or DOWN button to highlight either POOL or
SPA and press SELECT. Use the UP or DOWN
button to increase or decrease the temperature and
press SELECT. Use the BACK button to return to
the main screen.
2. Pool/Spa Only
MENU/HELP > SET TEMP > TEMP1 > SET TEMP1 VALUE >
TEMP2 > SET TEMP2 VALUE
Highlight MENU/HELP and press SELECT.
Highlight SET TEMP and press SELECT (TEMP1
must be higher than TEMP2). Press SELECT on
TEMP1. Use the UP or DOWN button to increase
or decrease the temperature and press SELECT.

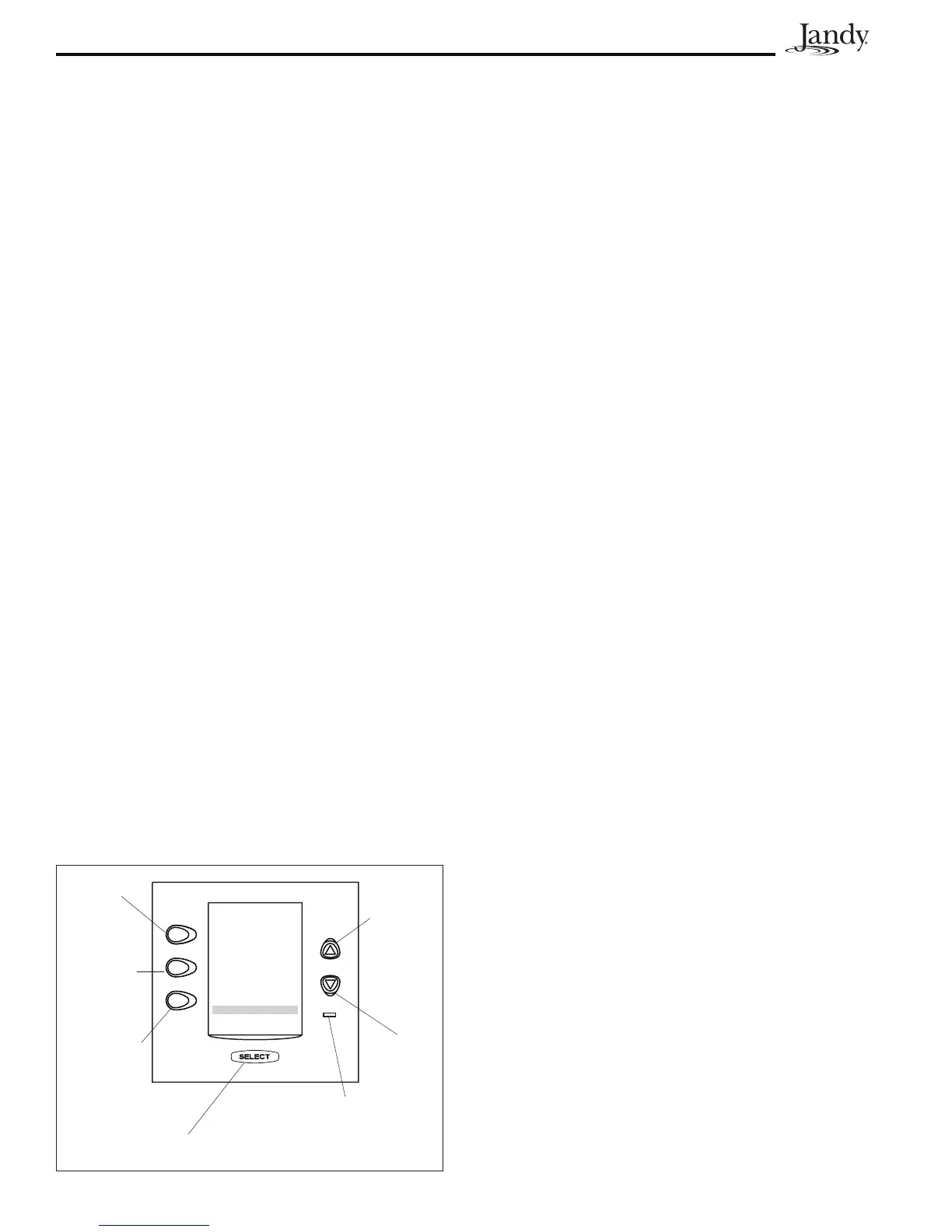

JANDYAquaLink RS
FILTER PUMP OFF
AIR 79°
06/26/04 MON
6:00 PM
EQUIPMENT ON/OFF
ONETOUCH ON/OFF
MENU / HELP
UP
Button
DOWN
Button
SELECT Button
Page Up
BACK
Page Down
Heater LED
Green- Heater enabled or
up to temperature
Red- Heater on and firing
Figure 35. OneTouch Control Panel Buttons
