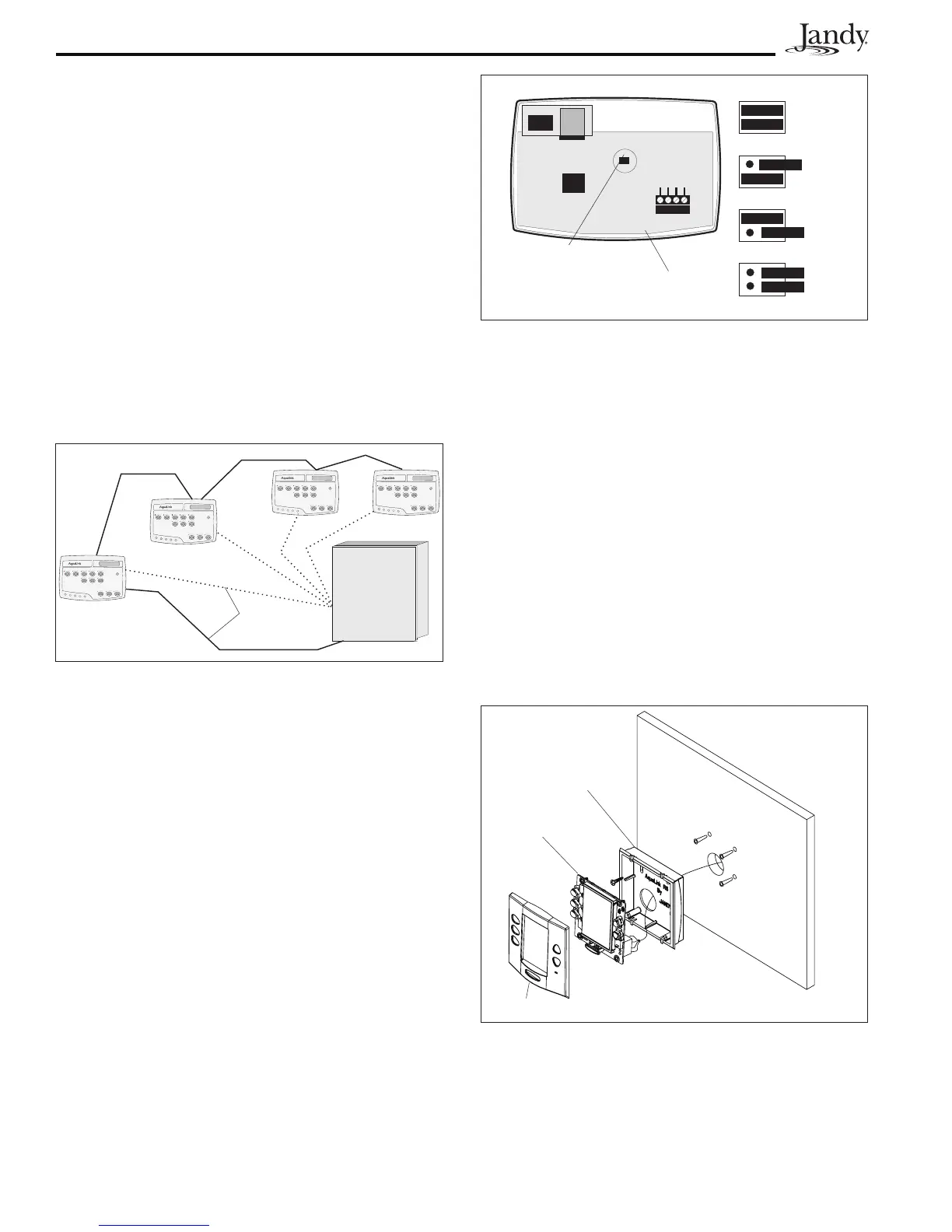

Page 20
3.8.2 MultipleAquaLinkRSAllButton
Control Panel Installation
The AquaLink RS allows each system to support
a maximum of 4 indoor control panels (see Figure
22). The control panels may be wired "in series"
starting from the first control panel (solid lines), or
wired "in parallel" from the AquaLink RS Power
Center (dotted lines), or any combination of the
two. In other words, any number of Indoor control
panels and/or Power Centers can be connected
by means of the red, 4-pin terminal bar in any
combination of "series" or "parallel" wiring.
NOTE Minimum wire size should be 22 AWG. If more
than one control panel is installed, or the length
of run is more than 300 feet, larger wire should
be used.
3.8.3. AquaLinkRSControlPanelJumper
Settings:
Move these jumpers only when installing more
than one control panel on a system (see
Figure 23). The jumpers are used to give each
control panel a unique system address. When
replacing an existing control panel, change the
jumper settings to match those on the one being
replaced.
NOTE If an AquaLink RS Personal Computer Interface
is installed, the AquaLink RS system will
recognize the interface as the fourth All Button
control panel.
3.9 OneTouch Control Panel Installation
3.9.1 Surface Mount OneTouch Installation
1. With the aid of the homeowner, find the
best location for the Control Panel.
2. Place Surface Mount Box in the location
chosen for the Control Panel. Mark the
holes for drilling. Drill 3/16" holes for the
sheet rock anchors and a 1¼" hole for the
4-conductor cable.
3. Run the 4-conductor cable from the Power
Center to the location of the Control Panel
(see Figure 24).
W2
W1
First Controller
Third Controller
W2
W1
Second Controller
W2
W1
Fourth Controller
W2
W1
Yellow
Green
Black
Red
W2
W1
Multiple Control Panels
Jumper
Location
Back of
All Button PCB
Figure 23. Jumper Settings for Multiple All Button
Control Panels
4. Pull the 4-conductor cable through the
hole in the wall and the hole in the Surface
Mount Box. Mount the box to the wall
using the screws provided.
Surface
Mount Box
OneTouch PCB
Faceplate
Sheetrock
Figure 24. OneTouch Surface Mount Installation
Figure 22. Installing Multiple All Button Control
Panels
22 AWG
Minimum
To Next Page
