UMG 96RM-M
Brief instructions
Changing the current transformer setting
Switch to programming mode:
• Simultaneously press buttons 1 and 2 for approximately
1 second in order to switch to programming mode.
The symbols for the programming mode (PRG) and for
the current transformer (CT) appear.
• Confirm the selection with button 1.
• The first digit of the input area for the primary current
starts flashing.
Changing the primary current
• Change the flashing digit with button 2.
• Select the next digit to be changed with button 1.
The selected digit to be changed starts flashing.
If the entire number is flashing, the decimal point can
be moved with button 2.
Changing the secondary current
• Only 1 A or 5 A can be set as the secondary current.
• Select the secondary current with button 1.
• Change the flashing digit with button 2.
Leaving the programming mode
• Simultaneously press buttons 1 and 2 for approx.
1 second again in order to switch to display mode.
Retrieving measured values
Switch to display mode:
• If programming mode is still active (the PRG and CT
symbols appear on the display), simultaneously press
buttons 1 and 2 for approximately 1 second in order
to switch to display mode.
• A measured value display will appear, e.g. for
the voltage

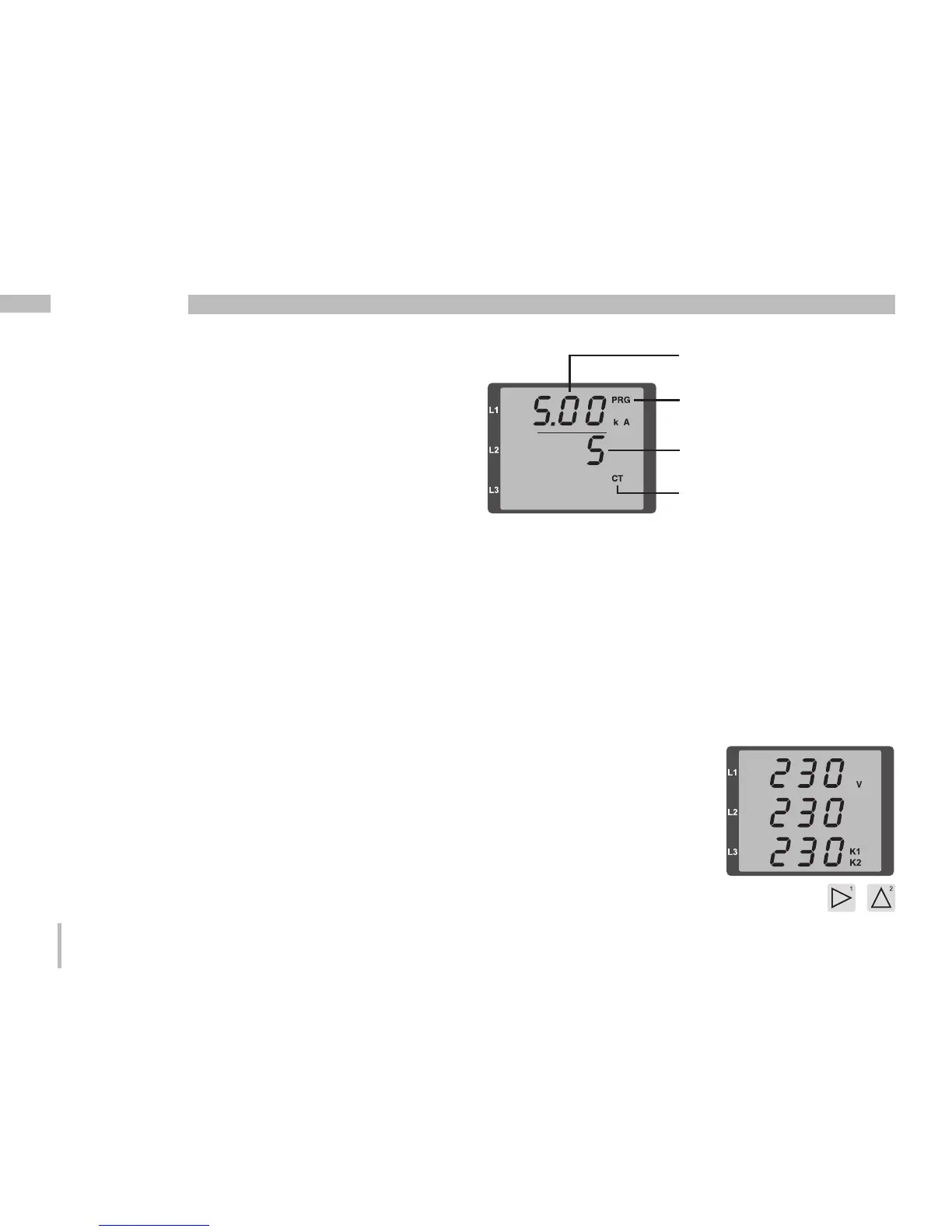

Current transformer symbol
(only in programming mode)
Current transformer setting,
primary current
Display
Programming mode
Current transformer setting,
secondary current
Button control
• Pressing button 2 causes
the measured value displays
to change from current,
voltage, power, etc.
• Pressing button 1 causes
the mean values, maximum
values, etc. associated
with the measured value
to change.
