68
UMG 96RM-M
Pulse output
Among other things, the digital outputs can also be used
for the output of pulses to meter the energy consumption.
After reaching a certain adjustable amount of energy,
a pulse of defined length is applied to the output.
Various adjustments must be made in order to use
a digital output as a pulse output.
• Digital output
• Source selection
• Measured value selection
• Pulse length
• Pulse value

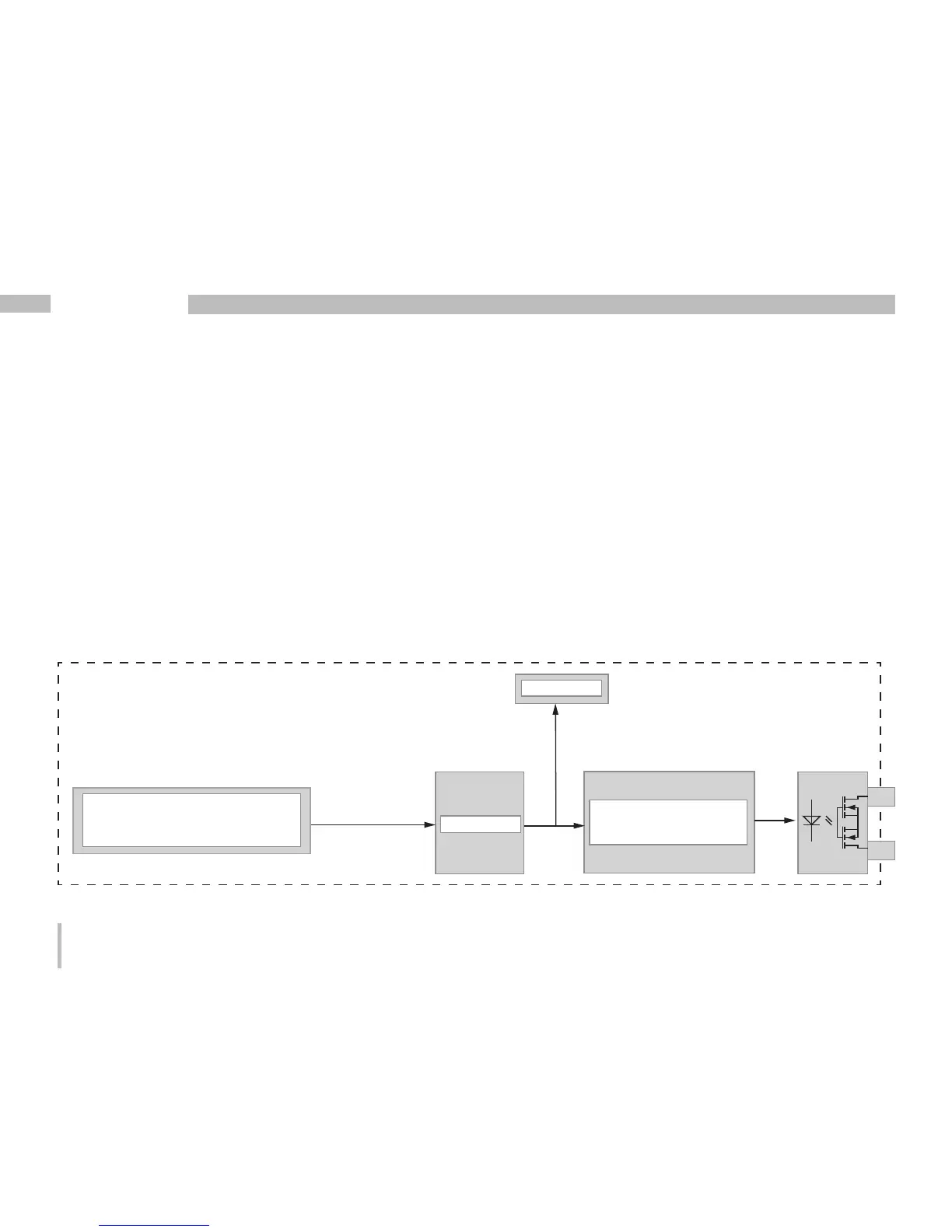

Fig.: Block diagram; Example of digital output 1 as a pulse output.
Measured value selection (addr. 100, 101)
Enter the power value here that is to be issued as an
energy pulse. See Table 2.
Source selection (addr. 200, 202)
Enter the source that delivers the measured value
to be issued at the digital output.
Selectable sources:
• Comparator group
• Pulse
Digital
output 1
13
14
Source
selection
Pulse
Addr. 100 = 874 (Address of Psum3)
Addr. 106 = 5 (50 ms)
Addr. 102 = 1000 (Wh/Impuls)
Addr. 200 =1
0/1
UMG 96RM
0/1
Inverter
Addr. 201=0 (not inverted)
Addr. 201=1 (inverted)
0/1
Addr. 608 =0
State of
digital output 1
UMG 96RM-M
