Parameters and measured values
All parameters necessary for operating the UMG 96RM-
M, e.g. the current transformer data, and a selection of
frequently required measured values are stored in the
table.
The contents of most addresses can be accessed via the
serial interface and the buttons on the UMG 96RM-M.
Only the first 3 significant digits of a value can be entered
on the device.
The device always only displays the first 3 significant
digits of a value.
Selected measured values are summarised in measured
value display profiles and can be shown in display mode
using buttons 1 and 2.

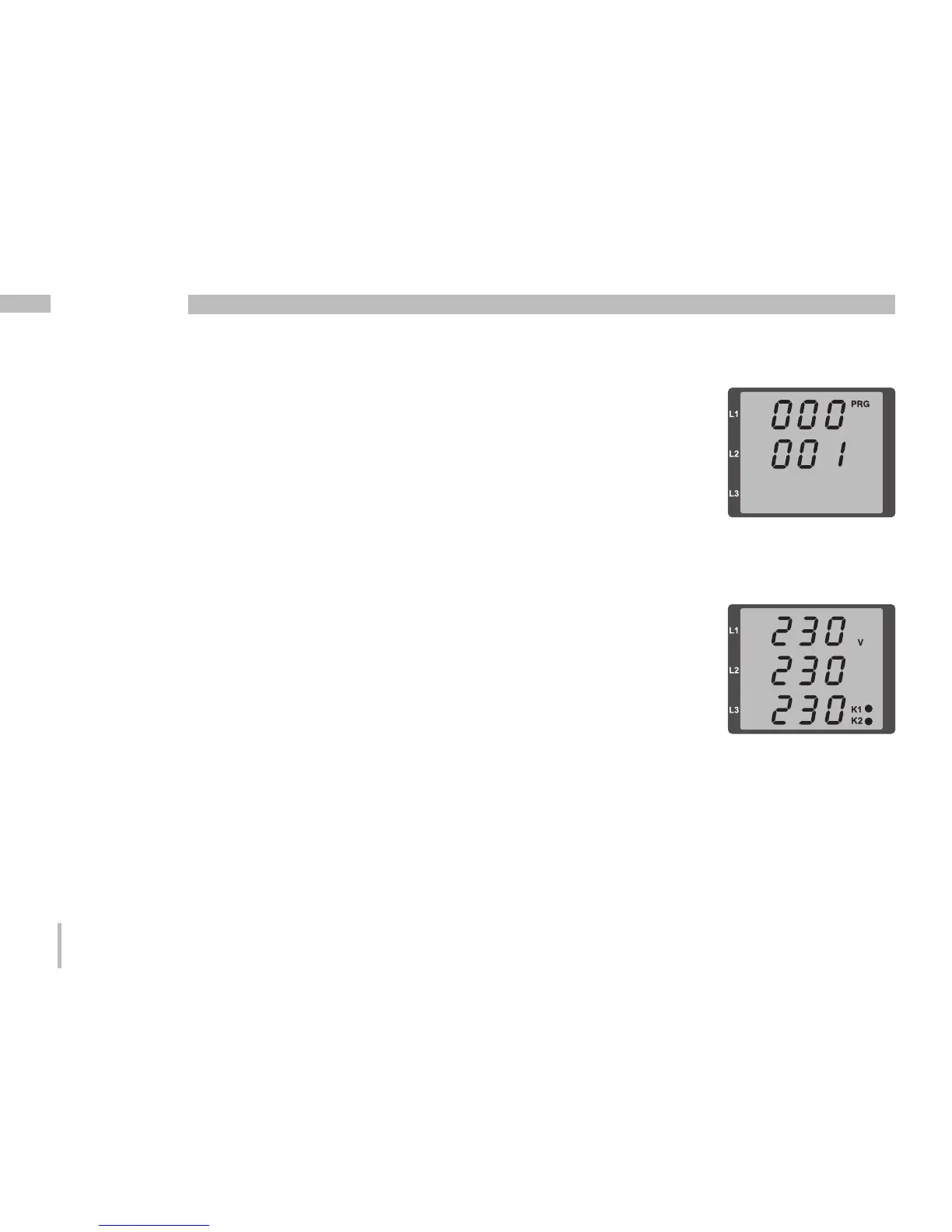

Example of the parameter display
On the UMG 96RM-M display
the value “001” is shown as
the content of address “000”.
This parameter reflects the
device address (here “001”)
of the UMG 96RM on a bus
in list form.
Example of the measured
value display
In this example, the UMG
96RM-M display shows the
voltages L to N with 230 V
each.
The K1 and K2 transistor out-
puts are conductive and cur-
rent can flow.
