UMG 96RM
Voltage metering
The UMG 96RM-M can be used for voltage measurement
in TN, TT and IT systems.
Voltage measurement in the UMG 96RM-M is designed
for the 300 V overvoltage category CATIII (4 kV rated
pulse voltage).

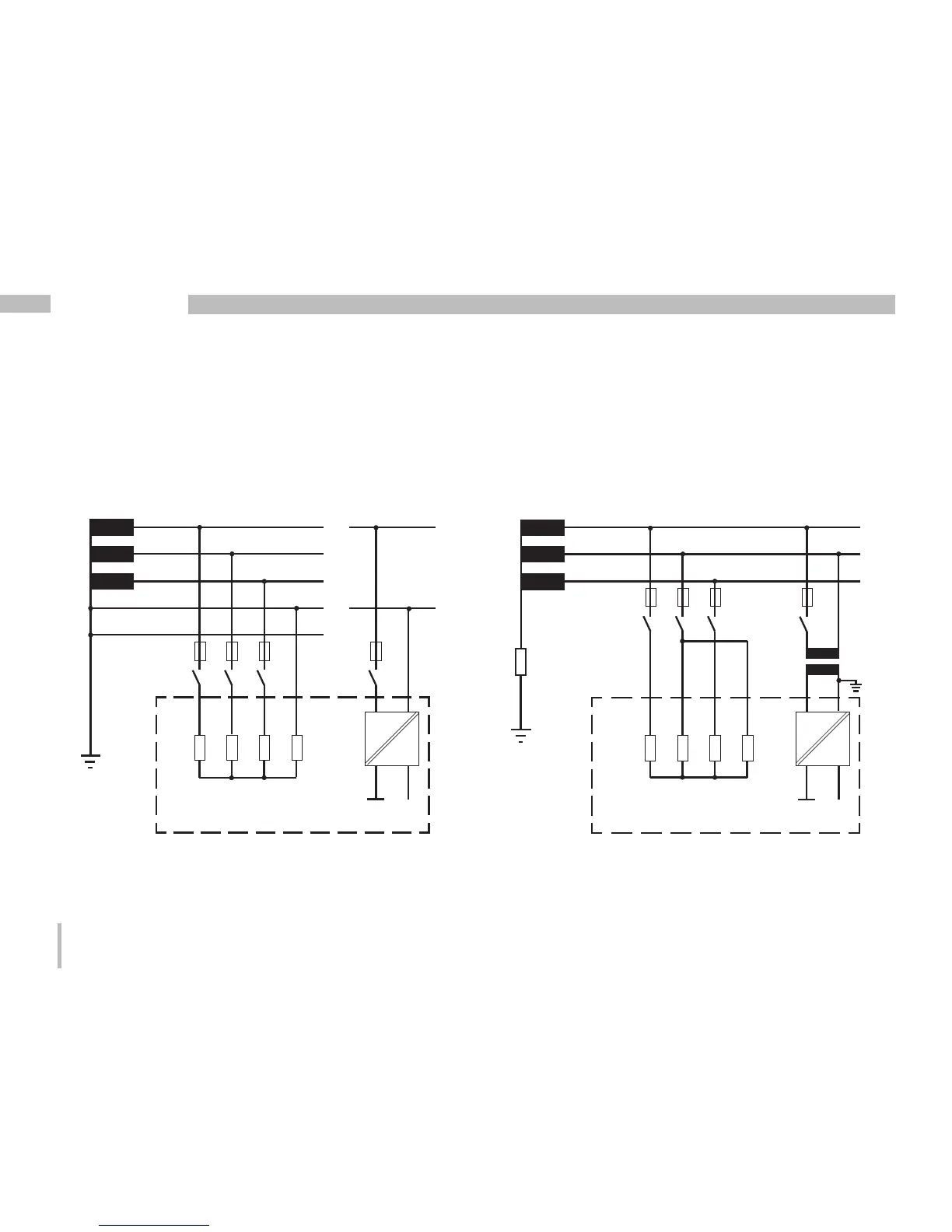

Fig. Principle circuit diagram - Measurement in three-phase
4-wire systems.
Fig. Principle circuit diagram - Measurement in three-phase
3-wire systems.
In systems without a neutral, measured values that
require a neutral refer to a calculated neutral.
DC
AC/DC
PE
277V/480V 50/60Hz
L2
L3
N
L1
Auxiliary energy
Measuring voltage
4M
4M
4M
4M
V1 V3V2 VN
UMG 96RM
N
L1
240V
50/60Hz
