UMG 96RM-M
Digital outputs
The UMG 96RM-M has 2 digital outputs. The following functions can be optionally assigned to the digital outputs:
Comparator A
Comparator B
Comparator C
Logic
Digital
output 1
13
14
Source
selection
Comparator group 1
Pulse output
UMG 96RM
Addr. 100 = Measured value address
Addr. 106 = Minimum pulse length
Addr. 102 = Pulse value
Addr. 200 =0
Addr. 200 =1
0/1
0/1
0/1
Inverter
Addr. 201=0 (not inverted)
Addr. 201=1 (inverted)
0/1
Addr. 608 =0
State of
digital output 1
Result
Addr. 616

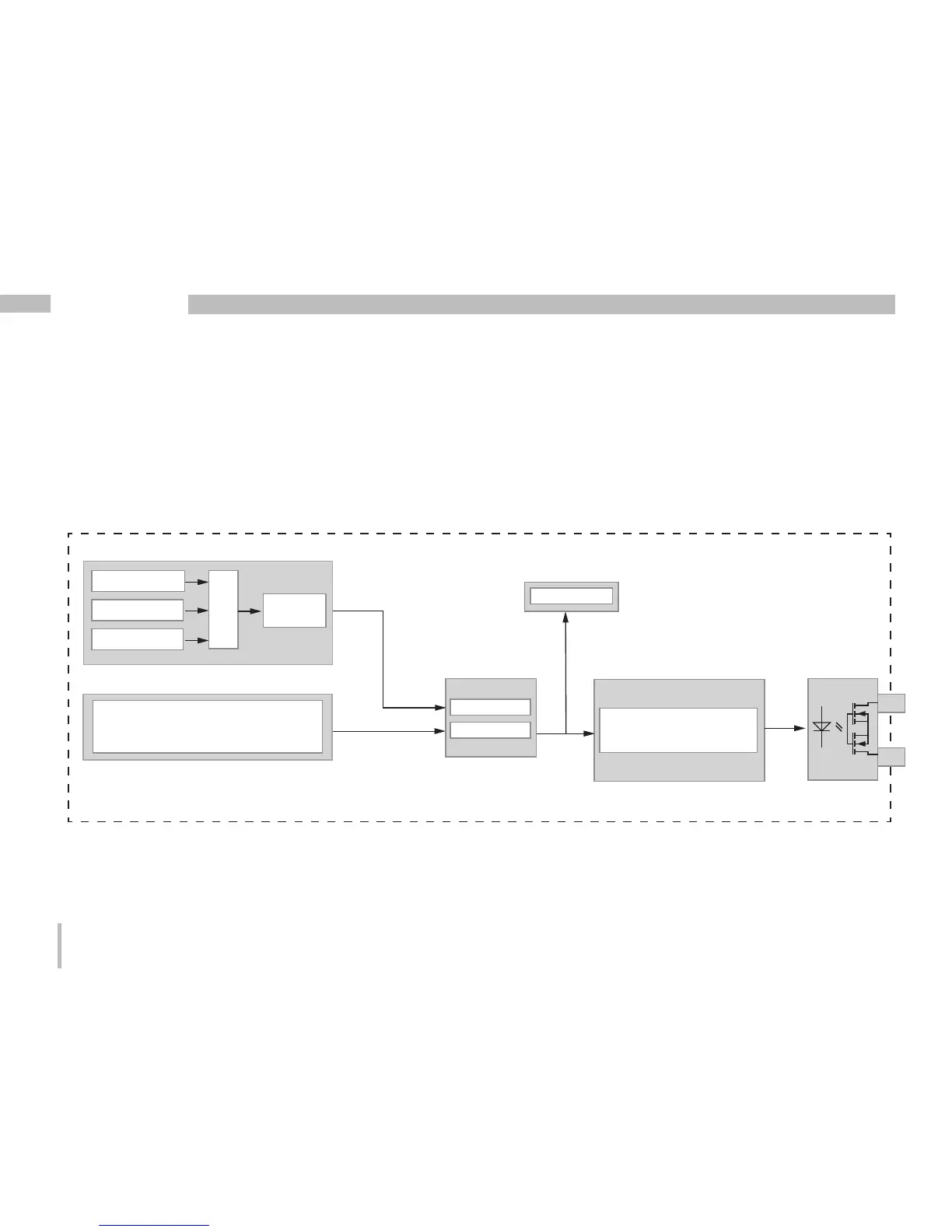

Fig.: Overall block diagram for digital output 1
Digital output 2
Address 202 = 0 Result of the comparator group 2
Address 202 = 1 Pulse output
Digital output 1
Address 200 = 0 Result of the comparator group 1
Address 200 = 1 Pulse output
UMG 96RM-M
