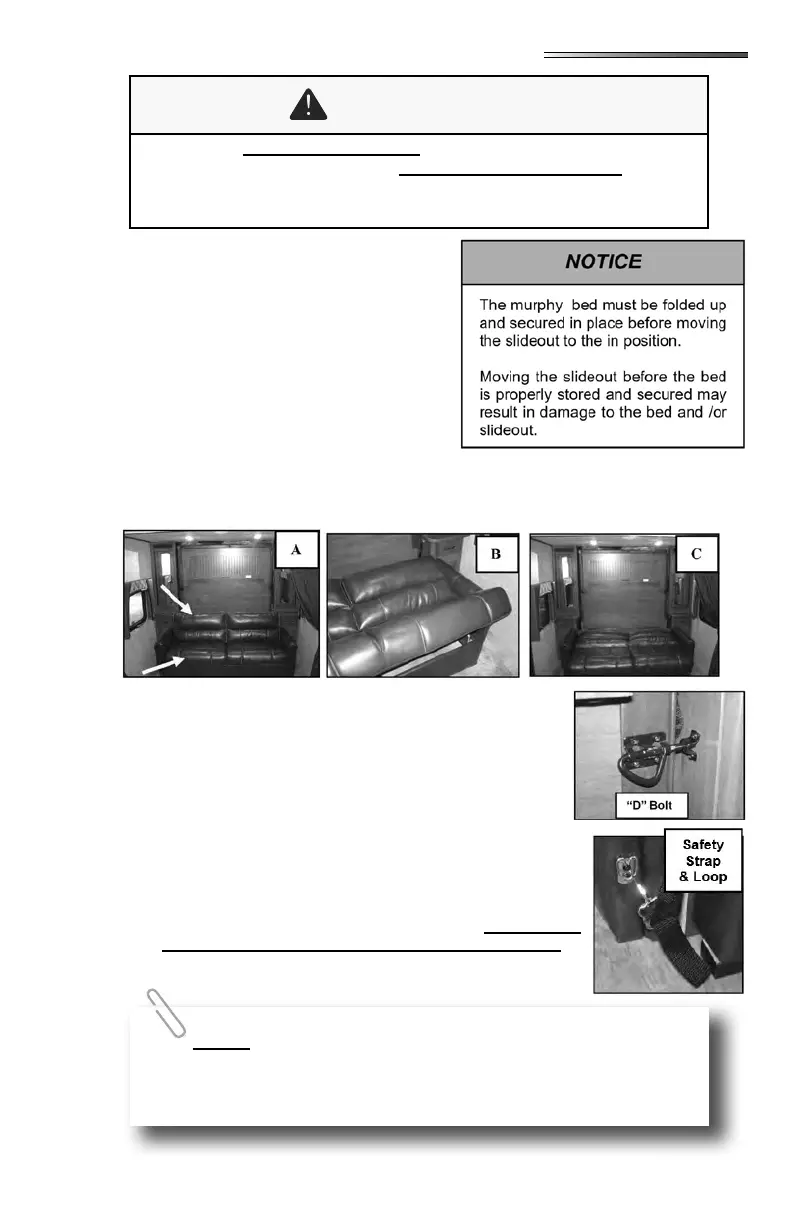

This label has been installed in your recreation-
al vehicle at the foot end of the Murphy bed.
.
With the slideout fully extended, unfold the sofa
into the at position.
Standing at the side of the sofa, grasp
the front of the seat cushion and the top
of the back cushion (A) (arrows).
Lift up on the seat cushion while pull-
ing the top of the back cushion in to-
ward the seat. The seat and back will form a “V” shape. (B).
Pull the seat cushion out away from the front of the sofa into the at position (C).
Unlatch the “D” bolt latches on each side of the bed at
the footboard (in the stored position). This will release
the Murphy bed allowing it to unfold.
Firmly grasp the handle on the footboard of the Murphy
bed, and pull it towards you.
The bed will begin to unfold. Pull it all the way down so
the footboard rests on the oor.
When the bed is in the sleeping position, locate the web
straps with snap hooks on the footboard of the bed (there
is one on each side of the bed). Attach (both) snap hooks
to the metal loops located on the sofa arms.
The slide out before putting the Murphy bed in the
sleeping position. The Murphy bed before the
slide out can be moved to the in (travel) position. Failure to do so may result
in injury or property damage.
The straps are adjustable. They have been installed at a length
that holds the bed securely in place and allows ease of attaching the snap
to the metal loops.
