6.2 ANGLE LOCK MECHANISM
VTX A-Series cabinets include an innovative Angle Lock mechanism that automatically engages to fix the angles at the selected po-
sitions when the system is suspended. Angles can be preselected while the system is still on the ground, eliminating extra steps. The
Angle Lock mechanism consists of two main parts: the red LOCKING LEVER and the black RELEASE BUTTON. The system is locked
when the locking lever is recessed into the cabinet, and remains locked until the Angle Lock mechanism is released. When it’s time to
de-rig the system, pressing the RELEASE BUTTON disengages the Angle Lock mechanism, which allows the cabinets to collapse again
to an angle of 10 degrees for travel on the transportation cart.

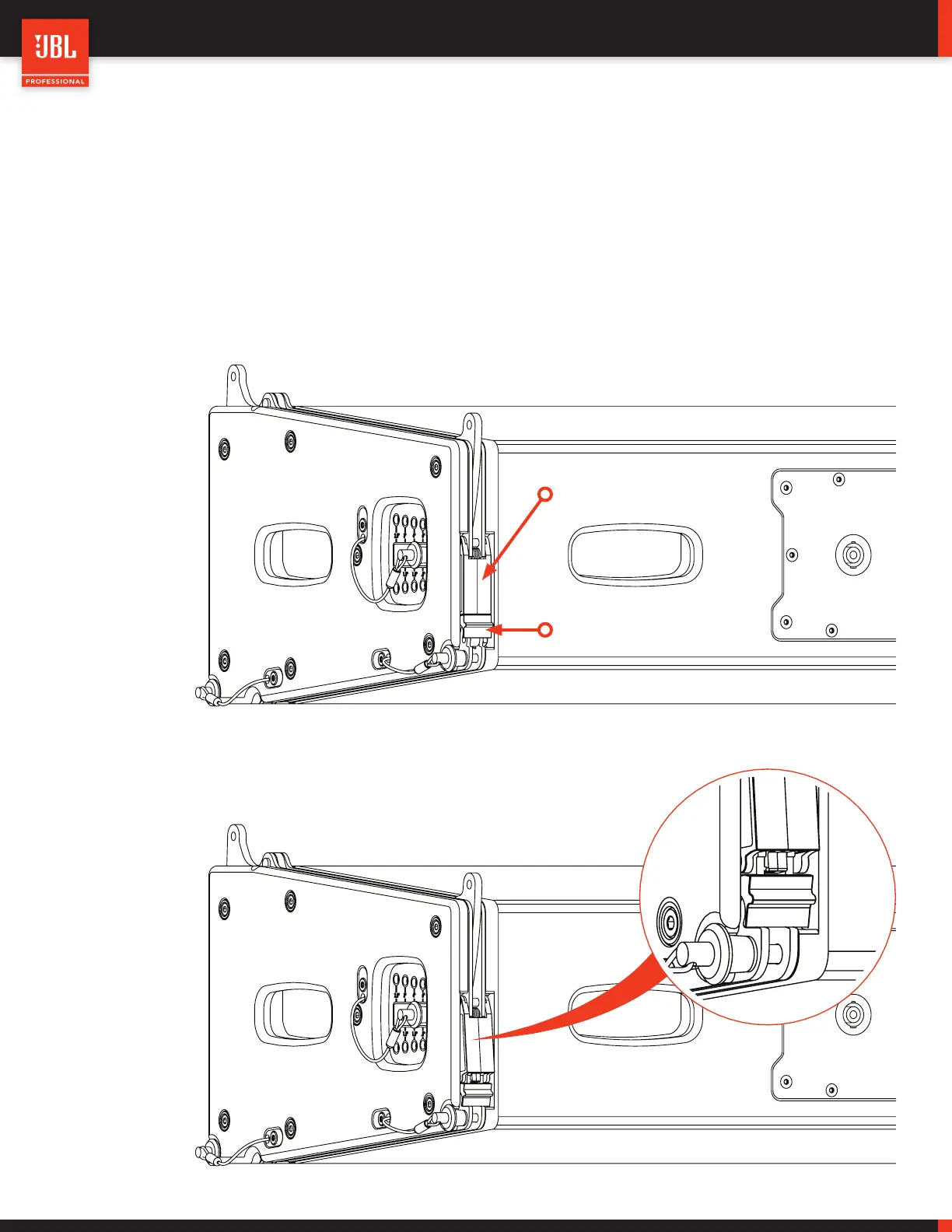

LOCKED POSITION
UNLOCKED POSITION
RED LOCKING LEVER
BLACK RELEASE BUTTON
