VTX A8 | Rigging Manual

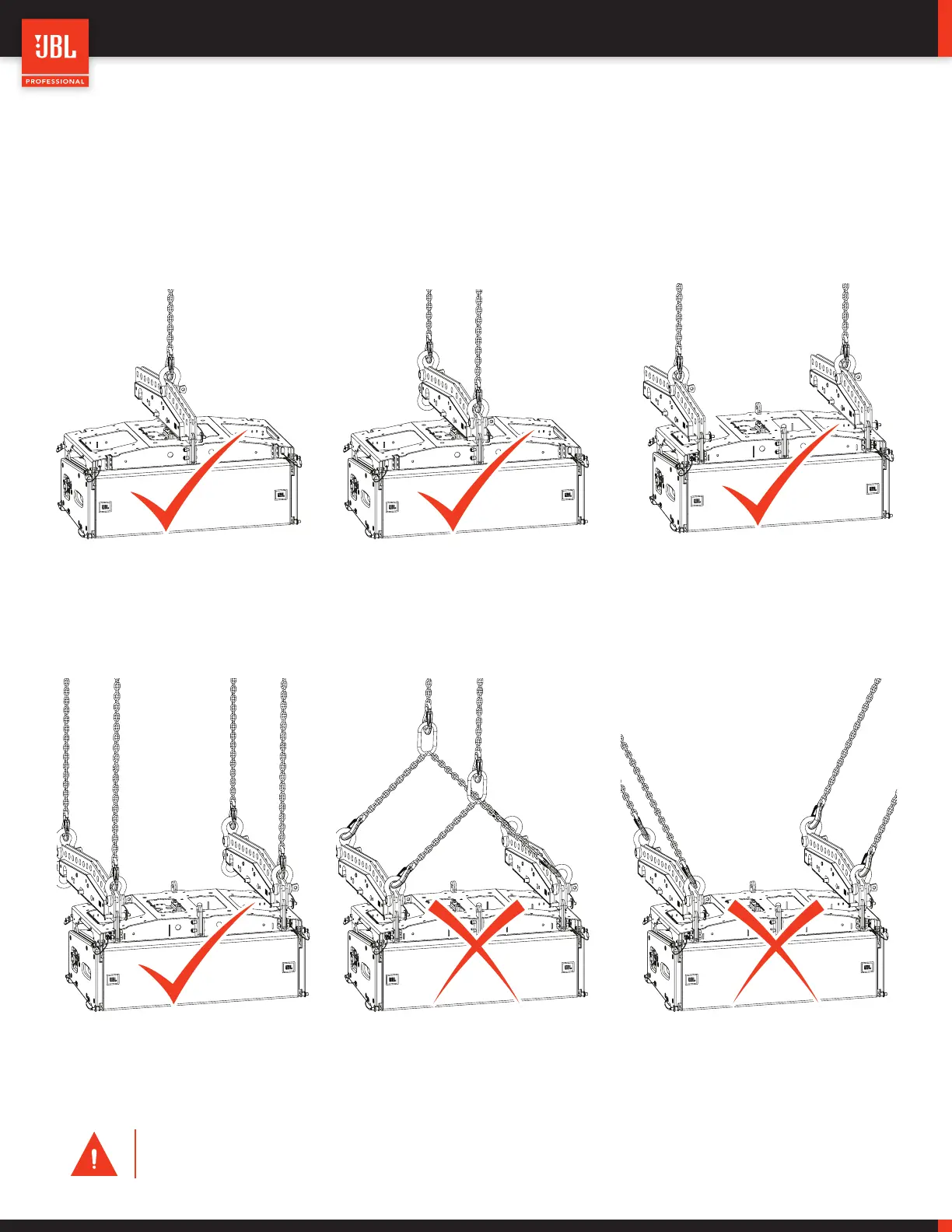

8.9 EXTENSION BAR USE CASES
The VTX A8 AF Array Frame can be deployed in a number of configurations using one or two VTX A8 Extension Bars. It is important to
note that only certain configurations are correct and safe for suspension of VTX A8 and B18 arrays. The images below illustrate proper
configurations for attaching VTX A8 Extension Bars, and where suspension points sound be attached to them. A suspension point
should never be attached to two extension bars.
SINGLE POINT
CAUTION: When multiple suspension points are used, always make sure all of them are evenly or properly
loaded.
DUAL POINT
FRONT-TO-BACK
DUAL POINT
SIDE-BY-SIDE
FOUR POINTS DUAL POINT USING BRIDALS
FRONT-TO-BACK
DUAL POINT / QUAD
SIDE-BY-SIDE
